27
The following lens operation can be made with the Lens button on
the side control.
Press the LENS button to enter each lens operation mode. The
selected adjustment display appears on the screen.
Display Lens shift on the screen. Use the Point ▲▼◄►
buttons to position the screen to the desired point without having
picture distortion.
The screen can be moved up or down to 60 percent, or sideways
up to 10 percent from the central axis of the lens shift.
Press and hold the LENS button for more than 5 seconds to
return to the central position.
Lens Shift Adjustment
 Note:
• The arrow disappears at the maximum lens shift in each
direction.
• The arrows turn red when the lens shift comes to the
center position of the screen.
Display Zoom on the screen. Use the Point ▲▼ buttons to
zoom in and out the image.
Zoom Adjustment
Display Focus on the screen. Use the Point ▲▼ buttons to
adjust focus of the image.
Focus Adjustment

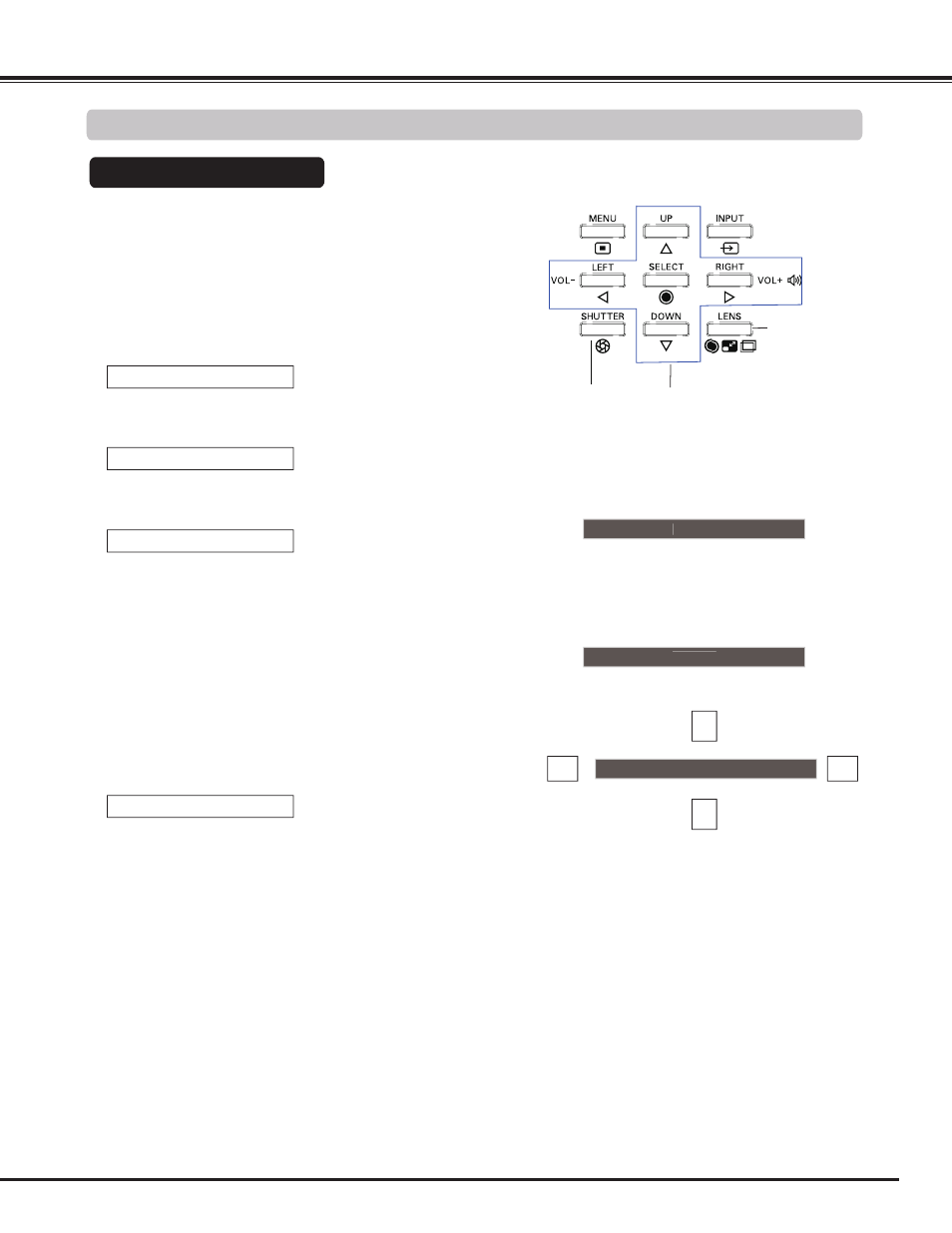

Side Control
Lens Operation
Zoom
Zoom → Focus → Lens Shift → • • • • •
Basic Operation
Shutter Function
Shutter function allows you to completely block out light to the
screen. Press the SHUTTER button to close the shutter inside
the projector. To open up the shutter, press the SHUTTER button
again. Refer to p.63 for detail of setting for the Shutter function.
 Note:
• The SHUTTER button on the side control and the remote
control cannot be effective when Shutter Protection is On in the
Setting menu. (p.63)
• The SHUTTER indicator on the projector's top lights blue when
the shutter is closed. (pp.12, 79)
• The projector will shut down automatically when the set time on
shutter management has passed. (p.63)
• The Power management function does not work when the
shutter is closed. (p.59)
SHUTTER button
LENS button
POINT buttons
Focus
Lens shift
Operating with Projector Control




