1
① ON/STAND-By button
Turn the projector on or off (pp.23-24).
② MENU button
Open or close the On-Screen Menu (p.25).
⑤ Point ▲▼◄► ( VOLUME – / + ) buttons
– Select an item or adjust the value in the On-
Screen Menu (p.25).
– Pan the image in Digital zoom + mode (p.43).
– Adjust the volume level (with Point ◄► buttons)
(p.28).
⑩ WARNING TEMP . indicator
Blink red when the internal temperature of the
projector exceeds the operating range (pp.72,
79-80).
④ SHUTTER button
Close and open up the built-in shutter. (p.27)
⑧ POWER indicator
– Light green while the projector is in stand-by mode.
– Light green during operations.
– Blink green in the Power management mode (p.59).
③ SELECT button
– Execute the selected item (p.25).
– Expand or compress the image in the Digital
zoom mode (p.43).
⑨ LAMP indicator
Light red during operations.
⑬ LAMP REPLACE indicator
Light orange when the projection lamp reaches
its end of life (pp.69, 80).
⑪ WARNING FILTER indicator
– Blink slow when the filter is being scrolled
(pp.66, 79).
– Blink fast when the filter scroll is not working
properly or the filter cartridge is not installed
(pp.66, 81).
– Light orange when the clogging of the filter is
detected or the filter counter reaches a time
set in the timer setting, urging immediate
filter/ filter cartridge replacement (pp.65, 66,
81).
①

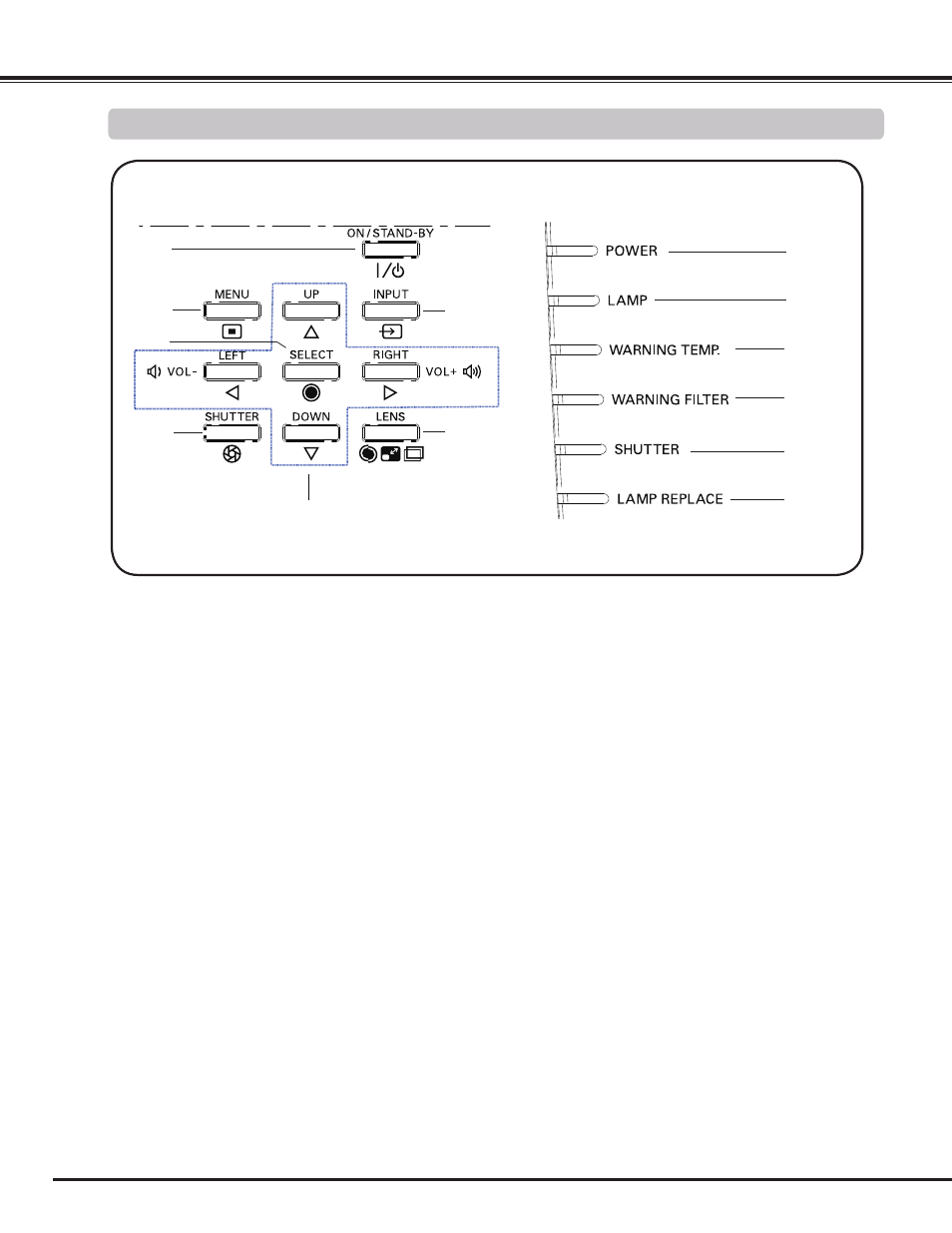

Side Control Indicators (on the top panel)
Part Names and Functions
⑦ INPUT button
Select an input source (pp.33-35).
⑥ LENS button
Enter the focus, zoom, and lens shift adjustment
mode (p.27).
②
④ ⑥
③
⑤
⑦
⑨
⑧
⑩
⑪
⑫
⑬
⑫ SHUTTER indicator
Light blue when the shutter is closed (p.79).
Side Control and Indicators
