Motion Area Mask
MAIN MENU
Note: It is most efficient to set this up using the mouse.
MD Area
Motion Detection Area allows you to adjust particular areas of each camera where motion will or will not be detected.
This is ideal if a camera is pointed in the direction of something that constantly has motion, such as a road, then, only
the desired sections will trigger recording saving valuable space on your HDD.
To adjust the MD area:
1. Navigate to and select “SETUP” for the channel you would like to adjust the motion detection area. This will
prompt the MD Area grid.
2. Navigate to and select the squares where you do NOT want motion detected. A transparent square indicates that
motion detection has been disabled.
3. Once motion detection areas have been determined, exit by right clicking or pressing “ESC,” then select “APPLY” to
save settings.

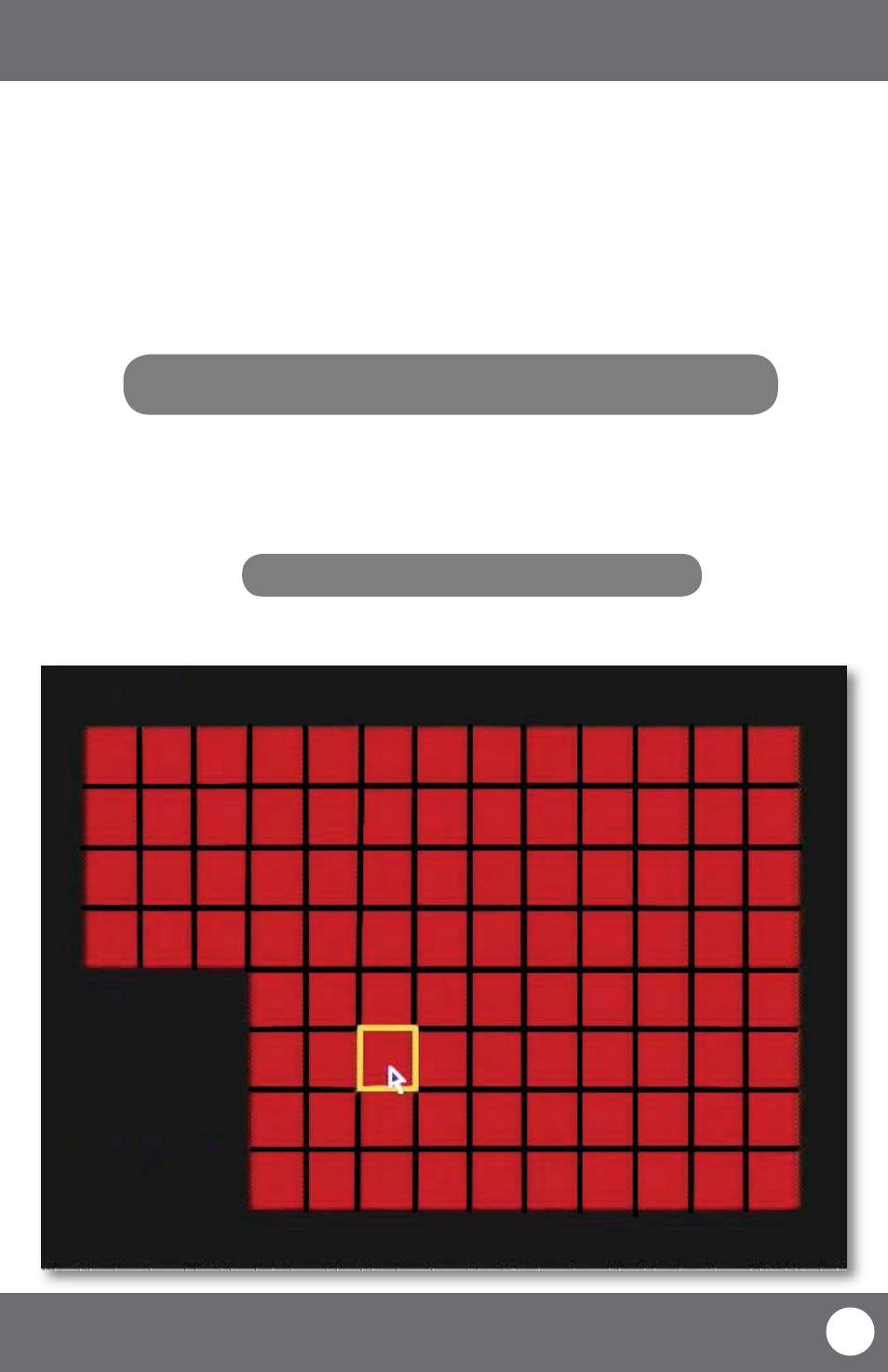

NOTE: By default, the grid is entirely red: the CV503-8CH is automatically
designated to detect motion throughout the whole screen.
