CV503-8CH-19M

SVAT ELECTRONICS

now you can see

SHORTCUT MENU

PTZ Camera

The controls for the PTZ camera are as follows:
Slow/Fast:

This bar allows you to adjust the speed that

the camera will move

Zoom:

Pressing the + zooms in and pressing the –

zooms out

Focus:

Pressing the + focuses the picture and

pressing the – takes the focus away. This is

useful if an object is either close range or long

range and is being displayed blurry

Iris:

Pressing the + lets in more light and pressing

the – takes light out of the picture. This is

useful for varying lighting situations as well as

correcting backlight issues

Cruise Setup:

This function allows you to setup preset

positions for the PTZ to follow, the PTZ camera

will cruise through your set positions and

times. Not all PTZ cameras have this function

Directional keys: Clicking on the directional arrows moves the

camera in the direction of that arrow

To set up cruise:
1. Right click the mouse and open PTZ.
2. Select “Cruise Set”.
3. Select the channel that the PTZ camera is connected to. (The

PTZ camera must already be configured).

4. Use the directional buttons to adjust the camera to the places

you would like the PTZ camera to view in cruise mode. Press

the SET button at each desired position.

5. Click on stop time and set the time (in seconds) for how long

you would like the PTZ camera to stay at each position.

6. To review your set points, select the current point you would

like to view and click on “go to”.

7. Click “save” and then “exit”.
8. To erase all preset cruise points click on “clean.”
9. To start the PTZ cruise, open the shortcut menu and select

“start cruise”. To stop the PTZ cruise, open the shortcut menu

and select “stop cruise”.

Selecting this shortcut opens the PTZ menu (PTZ camera not included). PTZ stands for Pan/Tilt/Zoom. This menu

option will only control PTZ cameras properly configured in Device Management. To view instructions on how to

configure a PTZ camera, please see Connecting a PTZ Camera on page 10.

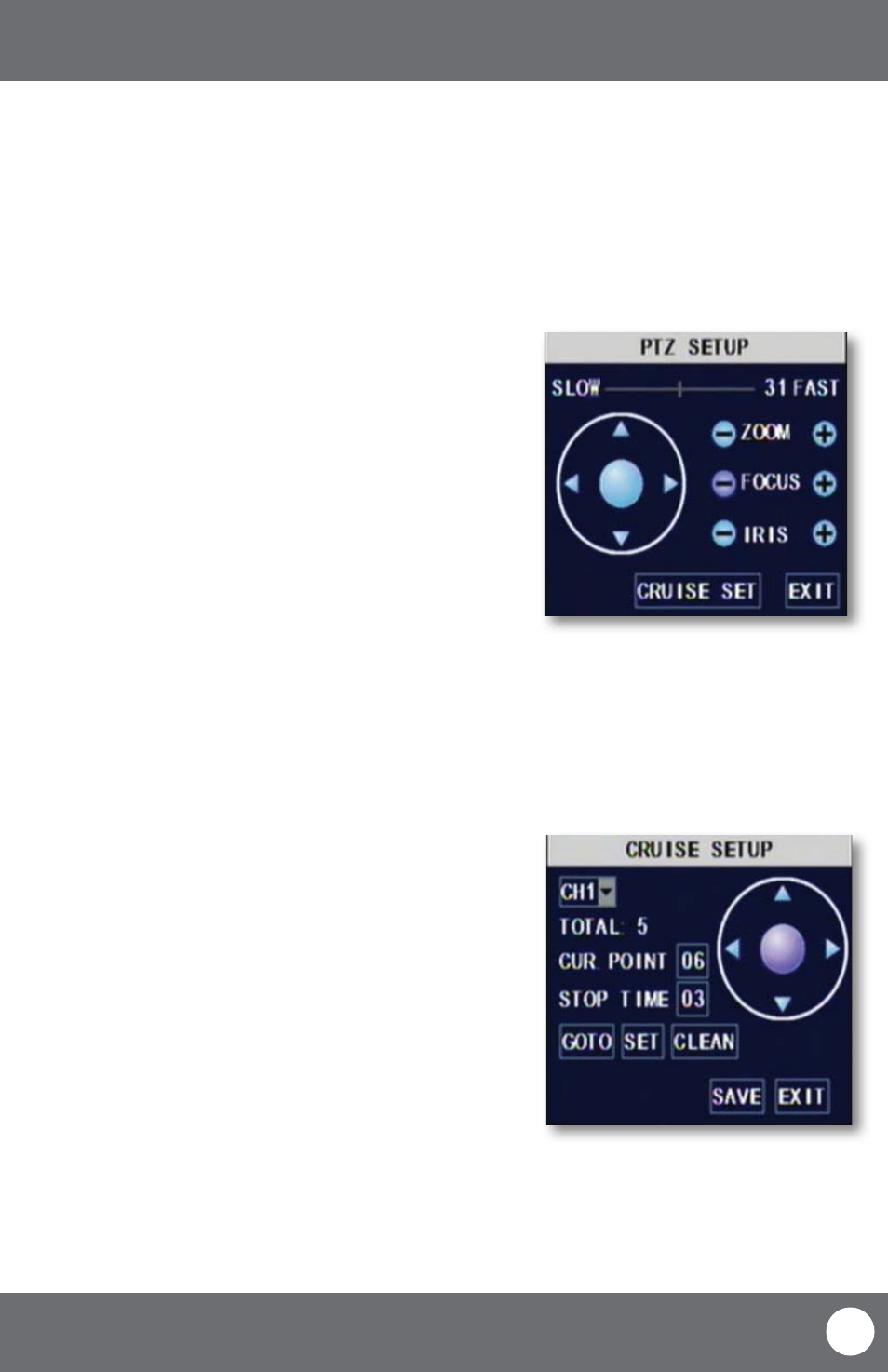

PTZ setup menu

PTZ Cruise
