MAIN MENU

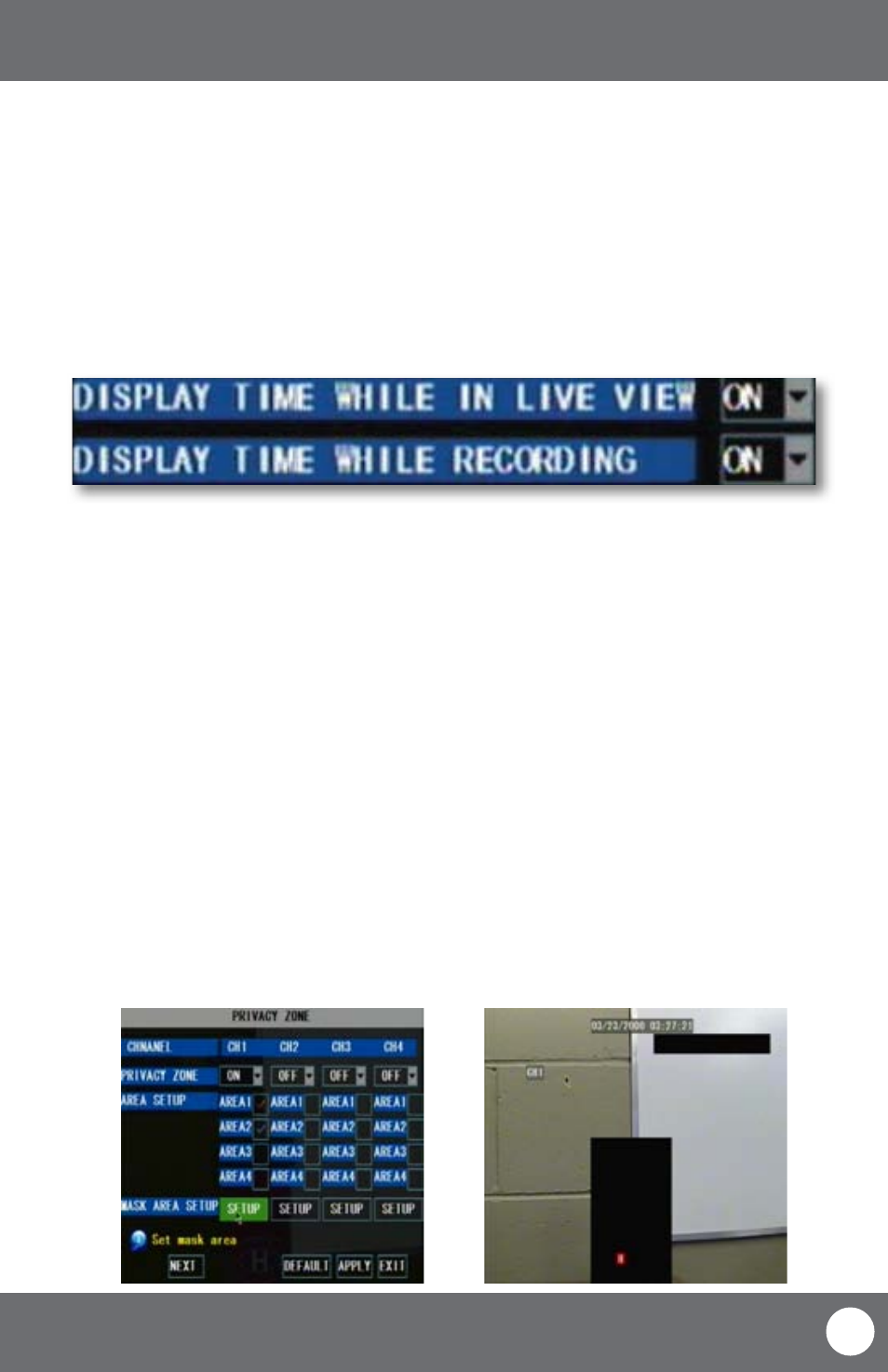

Time Display
The CV503-8CH allows you to select if you would like the time and date displayed while in live view or while recording.
To Enable/Disable the Time Display:
1. Select the drop down list next to the time display mode you would like to change.
2. Select “OFF” or “ON.”
3. Select “APPLY” to save your settings.
Time Display Options
Privacy Zone
“PRIVACY ZONE” allows you to set up to four adjustable areas per camera that you wish to mask or remain private.
When enabled, the desired private location(s) will appear black on the viewing screen.
To Setup Privacy Zone:
1. Select “PRIVACY ZONE” from the Camera Setup menu.
2. Navigate to the desired channel, then, from the “PRIVACY ZONE” drop down list, select the option from “OFF” to
“ON.”
3. There will be four check boxes titled “AREA” 1 through 4. Choose how many individual privacy zones you would
like to have by selecting the corresponding check box.
4. When the desired amount of privacy zones have been chosen, select “SETUP” to configure the location and size of
each zone.
5. Left click, hold and drag the green privacy zone box over the desired area you would like to be made private.
6. To adjust the size of the privacy zone, navigate to the green border of the privacy zone, then left click, hold and
drag the box to desired size.
7. When the privacy zones have been set, right click to exit.
8. Select “APPLY” to save settings, then “EXIT” to close.
Privacy Zone Setup Screenshot
