Woodstock W1812 - Manual (Page 50)

-47-
N(/()Fne\ijDXelXcD]^%j`eZ\*&'0
G8
I
K
J
217
218
216
208
211
229
240
211
208
211
207
216-1
216-1
220
210
210
200
230
213
209
213-3
213-2
213-4
253
252
251
250
213-1
217-2
217-3
217-1
217-4
229-1
229-4
229-2
229-3
221

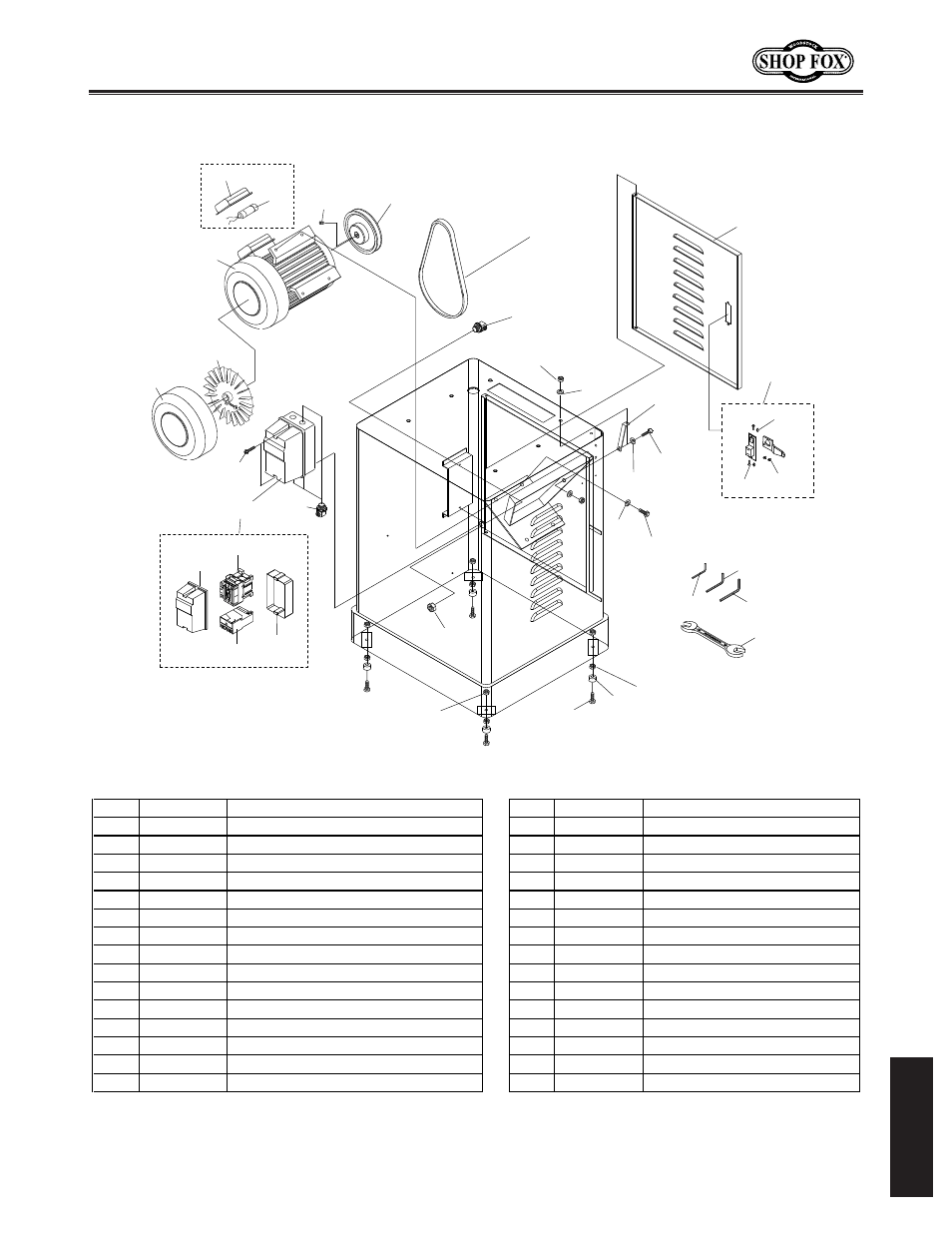

DX`eDfkfiXe[:XY`e\k
REF PART # DESCRIPTION REF PART # DESCRIPTION
200 XPSS02 SET SCREW 5/16-18 X 3/8 217-3 X1812217-3 COVER
207 XPN02 HEX NUT 5/16-18 217-4 X1812217-4 MAIN HOUSING
208 XPB07 HEX BOLT 5/16-18 X 3/4 218 XPS22 PHLP HD SCR 10-24 x 5/8
209 X1812209 MOTOR PULLEY 220 X1812220 RUBBER FOOT
210 XPN08 HEX NUT 3/8-16 221 XPB24 HEX BOLT 3/8-16 X 1-1/4
211 XPW07 FLAT WASHER 5/16 229 X1812229 VENTED REAR PANEL
213 X1812213 MOTOR 2HP 220V 229-1 X1812229-1 LATCH ASSEMBLY
213-1 XPC400C S CAPACITOR 400M 250V 1-3/4 X 3-3/4 229-2 X1812229-2 SPACER
213-2 X1812213-2 FAN 229-3 XPFS19M FLANGE SCREW M4-.7 X 4
213-3 X1812213-3 FAN COVER 229-4 XPS17M PHLP HD SCR M4-.7 x 6
213-4 X1812213-4 CAPACITOR COVER 230 X1812230 LINK BELT 1/2 X 45"
216 X1812216 STRAIN RELIEF 240 X1812240 BRACKET
216-1 X1812216-1 STRAIN RELIEF 250 XPAW0332M HEX WRENCH 3/32
217 X1812217 MAGNETIC SWITCH ASSEMBLY MPZ-09 251 XPAW04M HEX WRENCH 4MM
217-1 X1812217-1 CONTACTOR SDE MA15 220V 252 XPAW05M HEX WRENCH 5MM
217-2 X1812217-2 OL RELAY SDE RA-20 12-18A 253 XPWR1214 COMBO WRENCH 12/14MM
