-13-
N(/()Fne\ijDXelXcD]^%j`eZ\*&'0
J<
K
L
G

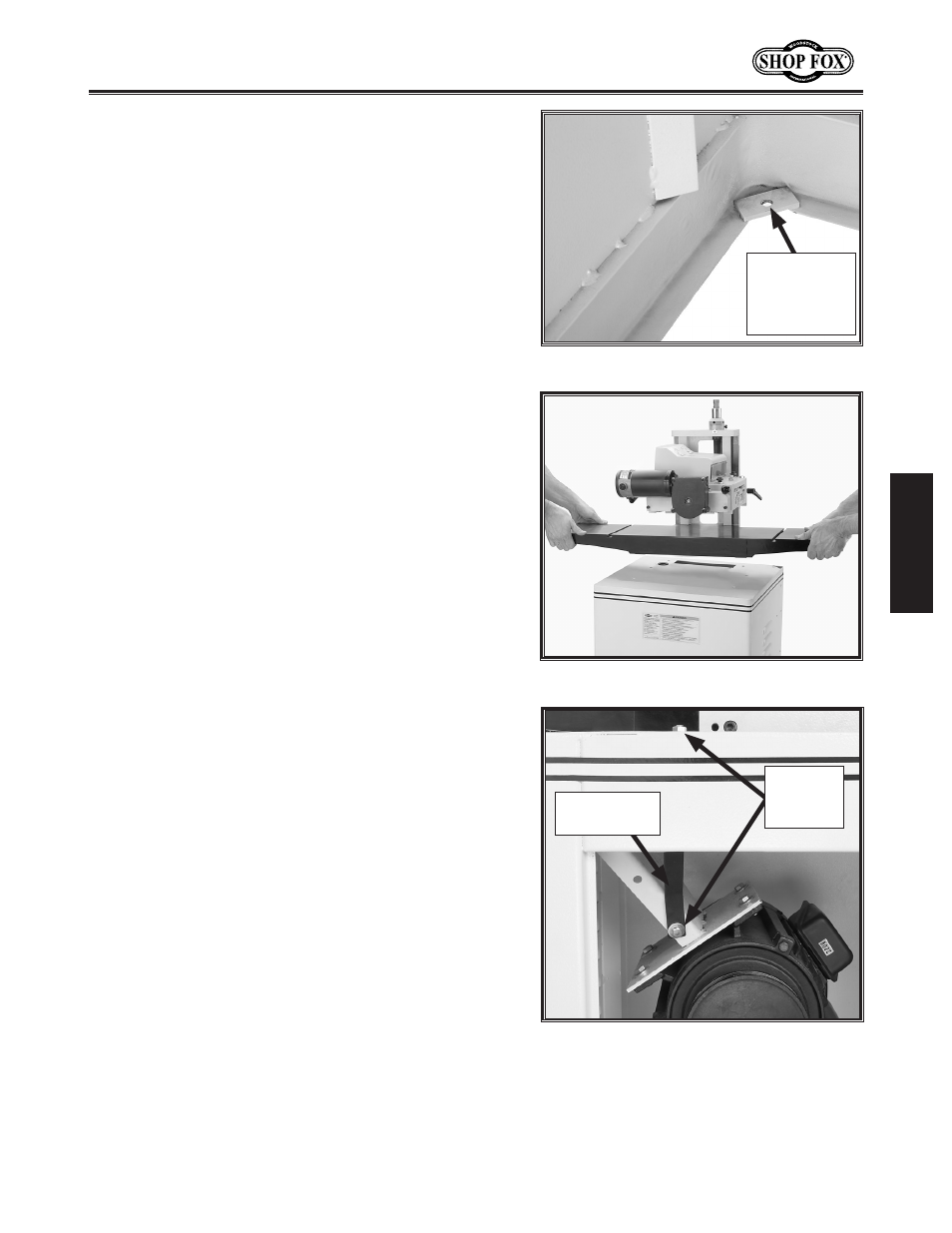

=`^li\8.Suggested lifting locations.
KfXjj\dYc\k_\gcXe\i&dflc[\i#[fk_\j\jk\gj1
(. With the help of an assistant, lay the stand on
its side, then insert the 3 ⁄
8
" x 16 x 1 1 ⁄
4
" hex bolts
through the rubber feet, then thread on a 3 ⁄
8
" x 16
hex nut onto each bolt.
). Next, thread each bolt into the reinforced holes
shown in =`^li\7, and then thread the four
remaining 3 ⁄
8
" x 16 hex nuts onto each bolt to lock
the feet in place.
Note: For a pre-made heavy-duty mobile base option
instead of using the feet, you can place the cabinet
directly on the Shop Fox Model D2057 Heavy-Duty
Mobile Base equipped with swivel casters and post
brakes.
*. Position the stand upright, then adjust the feet so
the cabinet sits level on the floor.
+. When level, tighten the jam nuts to lock the feet in
place.
,. With the help of an assistant, lift the planer/moulder
headstock and position it onto the cabinet, as shown
in
=`^li\8.
-. Open the cabinet door, then secure the headstock to
the cabinet with four 5 ⁄
16
"-18 x 3 ⁄
4
" hex bolts and 5 ⁄
16
"
flat washers.
.. Remove the shipping brace shown in =`^li\9.
=`^li\7.Foot installation.
3 ⁄
8
" Diameter
Reinforced
Mounting
Hole
=`^li\9.Shipping brace.
Brace
Mounting
Bolts
8jj\dYcp
Shipping
Brace
