Troubleshooting and Diagnostics
JS56696,00009F0 ­19­18MAY11­2/2
PC13751
—UN—01JUN1
1
Diagnostic Readings Page 1
PC13753
—UN—16MA
Y1
1
Diagnostic Readings Page 2

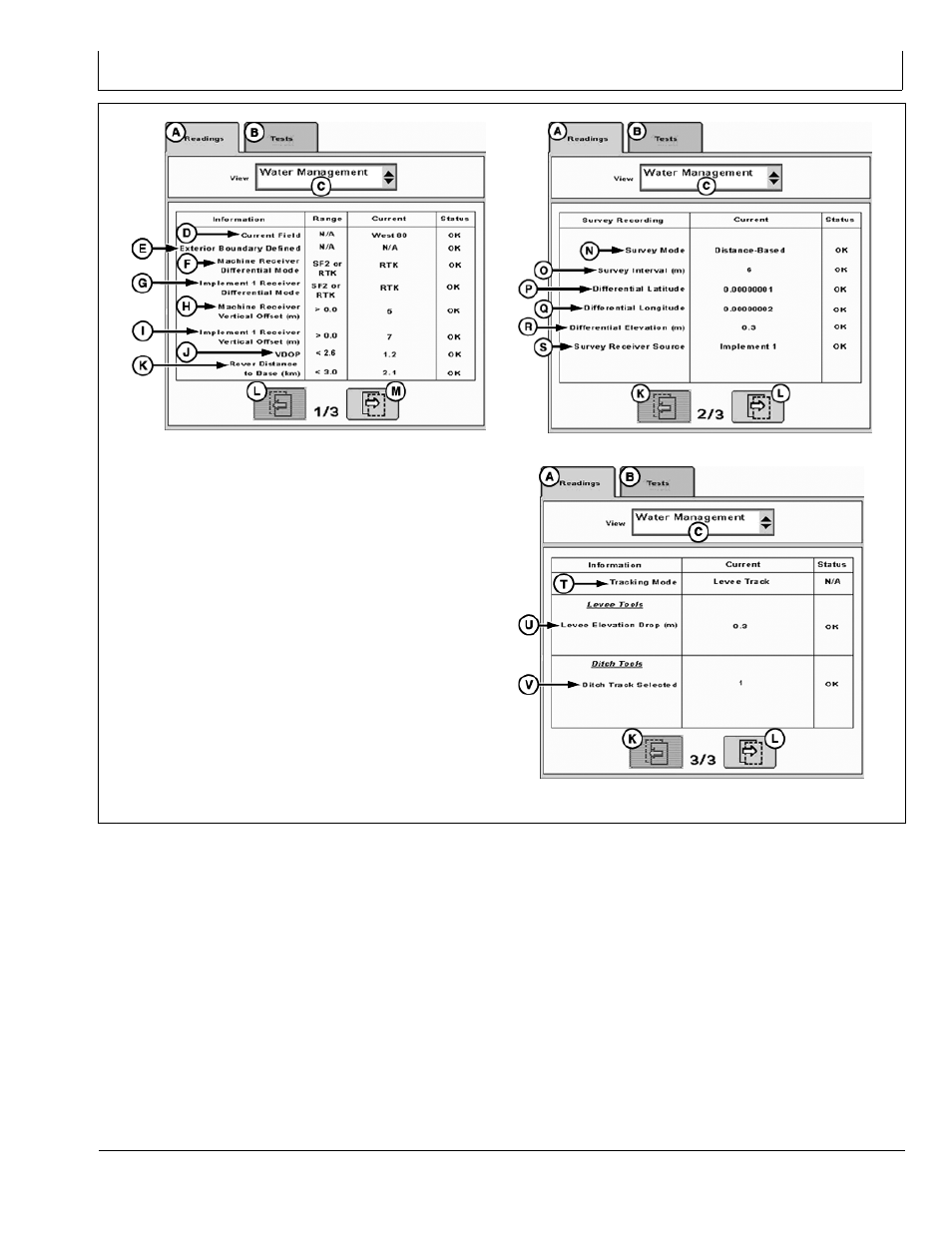

These screens list requirements for Surface Water Pro
tools to fully function.
A—Readings tab
B—Tests tab
C—Diagnostic View drop­down
D—Current Field
E—Exterior Boundary Defined
F— Machine Receiver
Differential Mode
G—Implement 1 Receiver
Differential Mode
H—Machine Receiver Vertical
Offset
I— Implement 1 Receiver
Vertical Offset
J— VDOP
K—Rover Distance to Base
L— Previous Page button
M—Next Page button
N—Survey Mode
O—Survey Interval (m)
P—Differential Latitude
Q—Differential Longitude
R—Differential Elevation (m)
S—Survey Receiver Source
T— Tracking Mode
U—Levee Elevation Drop (m)
V—Ditch Track Selected
PC13754
—UN—16MA
Y1
1
Diagnostic Readings Page 3
