Machine and Implement Setup
Continued on next page JS56696,00009D3 ­19­01JUN11­2/3
Machine Tab
NOTE: All items and changes will be saved under
the current machine name.
Offsets are provided by some ISO implements
and some John Deere tractors. Some list
boxes may be grayed out when the machine
is automatically recognized.
When setting up Surface Water Pro for the
first time, creating a machine name for the
vehicle is recommended. All dimensions and
parameters set for this vehicle are used for
Surface Water Pro operations.
The Machine and Implement tabs are required to be
populated with equipment information such as:
• Type
• Model
• Name
• Offsets
Machine Type—Vehicle type being used (e.g. Tractor,
Combine, Sprayer).
Machine Model—Model number of the vehicle being
used. For John Deere vehicles, model numbers will be
available from the drop down list.
Machine Name—The name is used to further clarify
which machine is being used. For instance, if there are
two 8430’s in your operation, the machine names may be
“John” and “Deere”, or “8430­1” and “8430­2”, or simply
“1” and “2”. However, settings associated to the tractor,
such as turning radius, turn sensitivity, dimensions, etc.,
are stored to the name.
PC13768
—UN—17MA
Y1
1

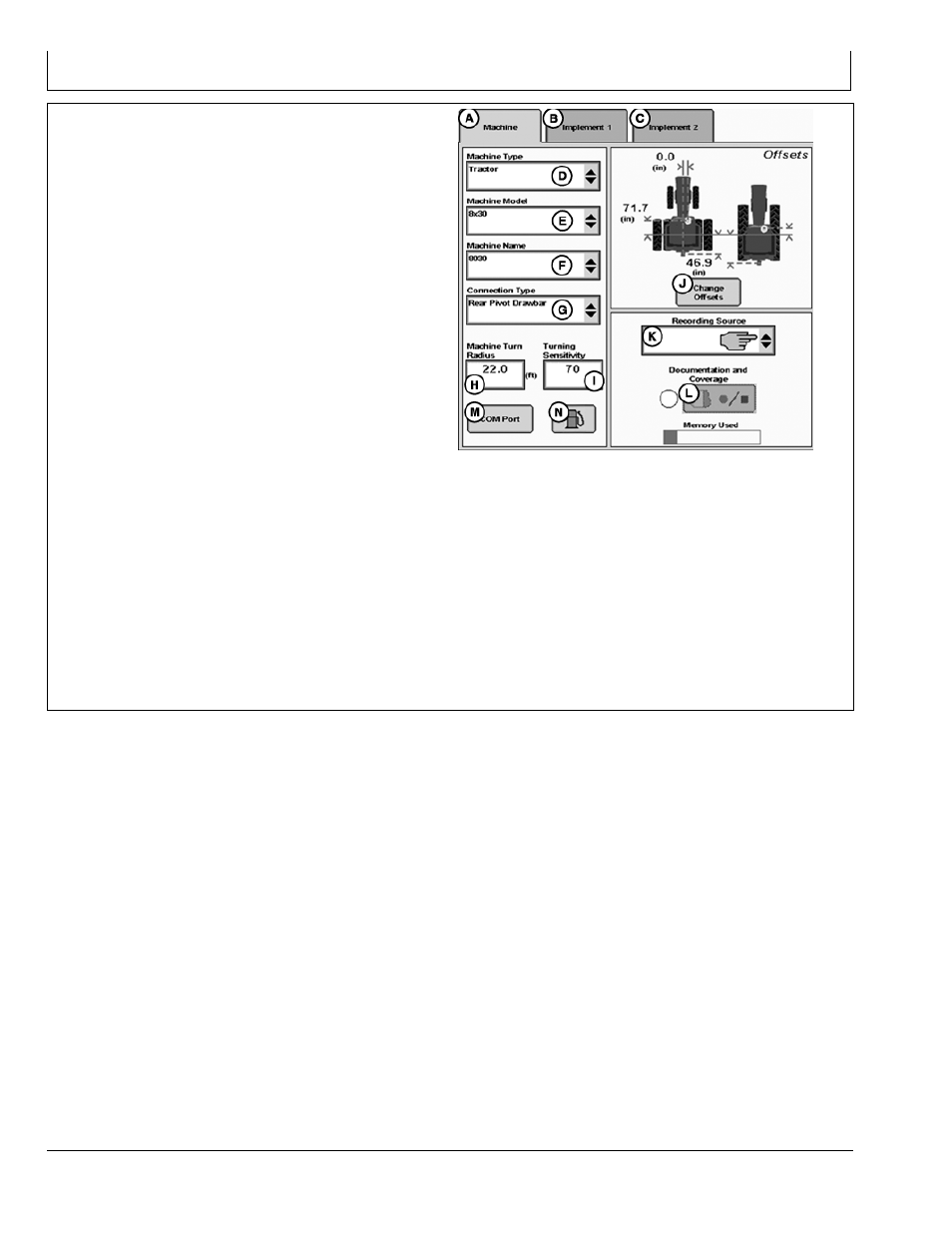

Machine Tab
A—Machine Tab
B—Implement 1 Tab
C—Implement 2 Tab
D—Machine Type drop­down
menu
E—Machine Model drop­down
menu
F— Machine Name drop­down
menu
G—Connection Type
drop­down menu
H—Machine Turn Radius input
box
I— Turning Sensitivity input
box
J— Change Offsets button
K—Recording Source
drop­down menu
L— Record/Pause button
M—COM Port button
N—Fuel button (Business Pack
/ Europe Only)
