Machine and Implement Setup
Continued on next page JS56696,00009D6 ­19­11MAY11­2/4
PC10376
—UN—13OCT07

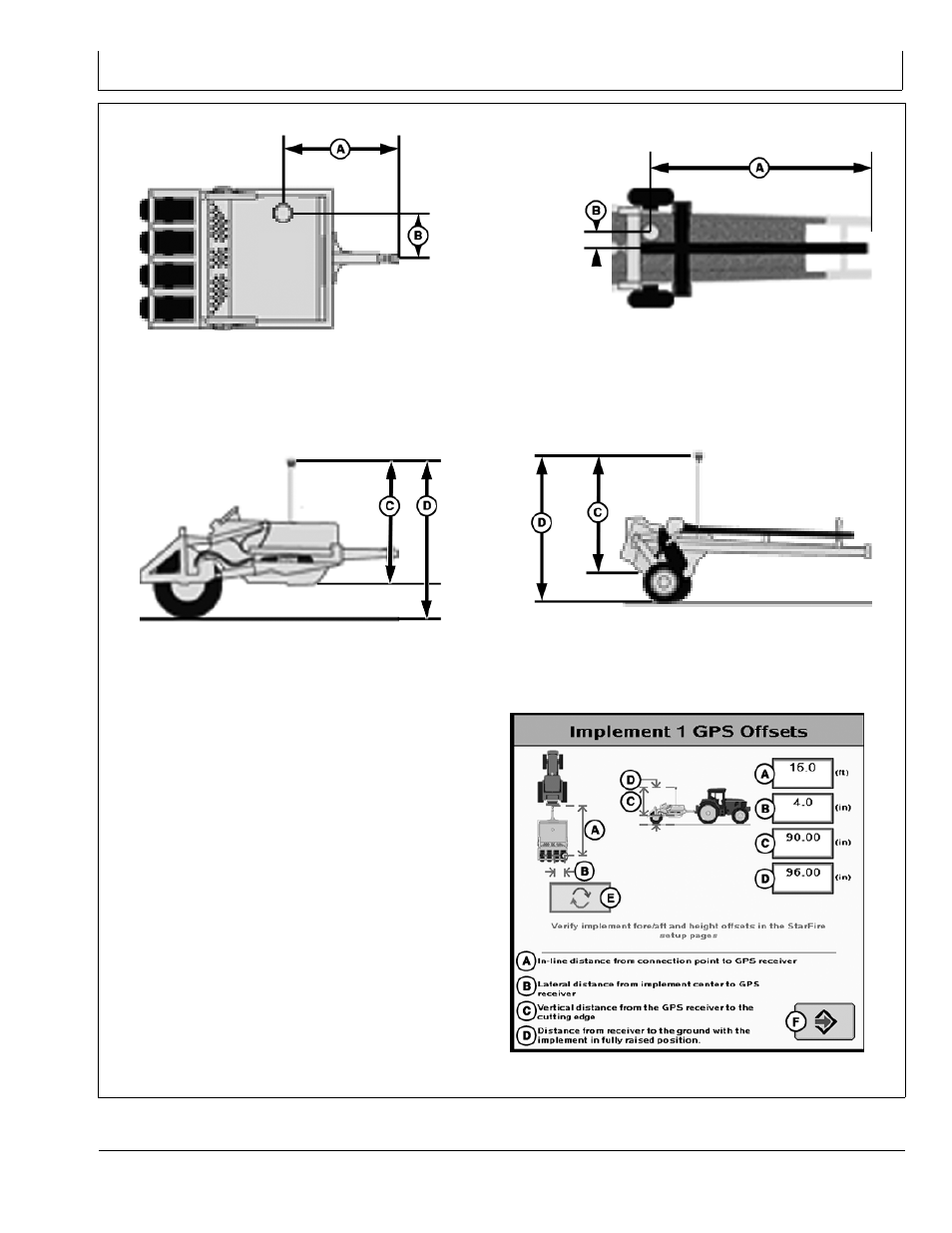

Scraper Overhead
PC10378A
—UN—14OCT07
Rotary Ditcher Overhead
PC10375A
—UN—14OCT07
Scraper Profile
PC10377
—UN—13OCT07
Pull Type Rotary Ditcher Profile
A—In­line distance from
connection pivot point to
GPS receiver.
B—Lateral distance from
implement center to GPS
receiver.
C—Vertical distance from the
GPS receiver to the cutting
edge.
D—Vertical distance from the
GPS receiver to the ground
in the fully raised position.
E—Offset Toggle button
F— Accept button
PC13801
—UN—02JUN1
1
Implement GPS Offsets
15­9 061611
