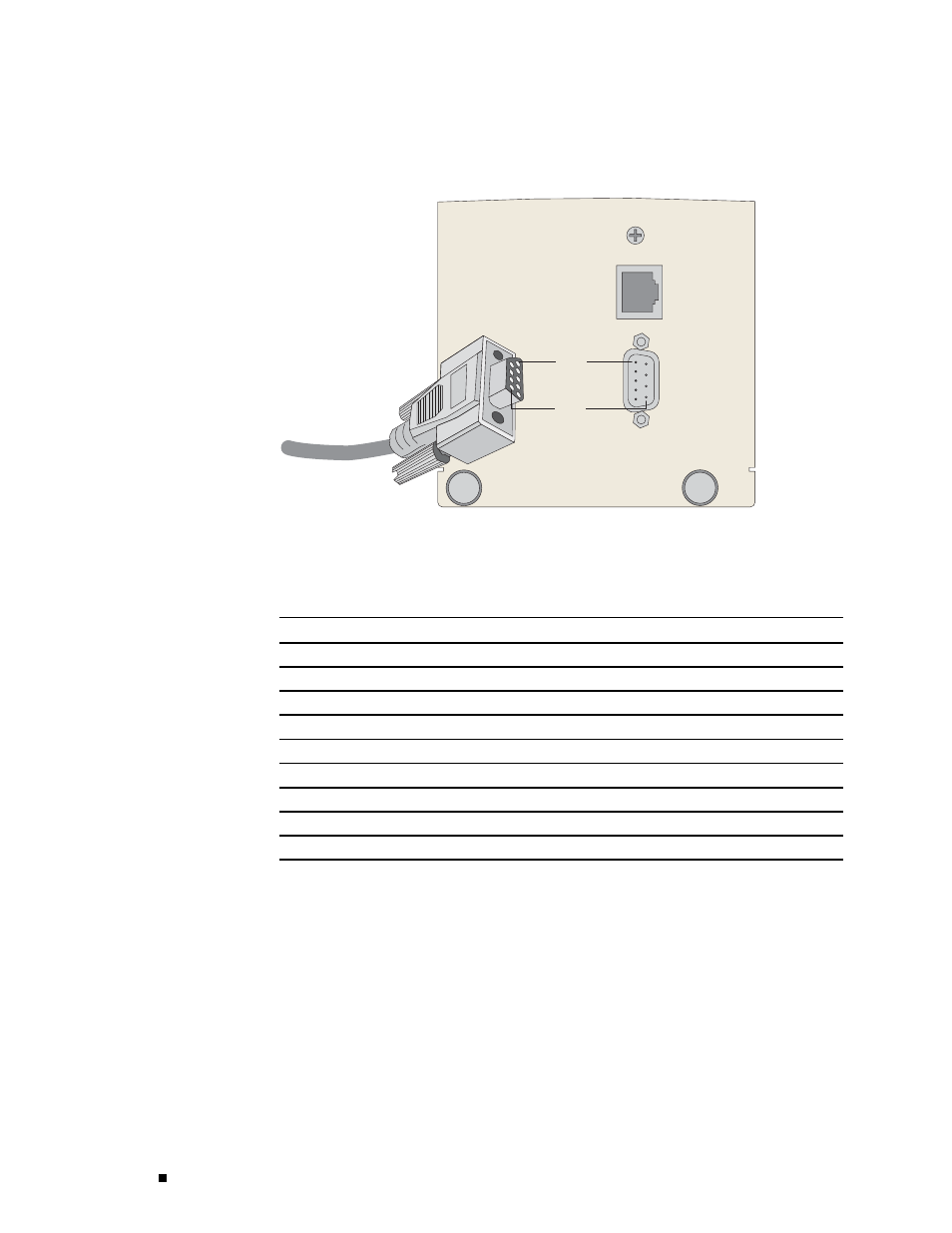

Figure 52: SRP I/O Module Serial Port
CONSOLE
10/100
BASE T
RS-232
DB-9
PIN 1
PIN 9
g013771
Table 19 lists the pinout for the serial cable’s RS-232 connector.
Table 19: SRP I/O Module—RS-232 Serial Connector Pinout
Pin Signal
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RNG
After you have configured an IP address on the system, you can connect using
a host running Telnet over the 10/100Base-T Ethernet port on the SRP I/O
module. The router ships with a straight-through cable having a male RJ-45
Ethernet connector on each end. Figure 53 shows the location of the Ethernet
port and the sequence of the pins in the RJ-45 connector.
