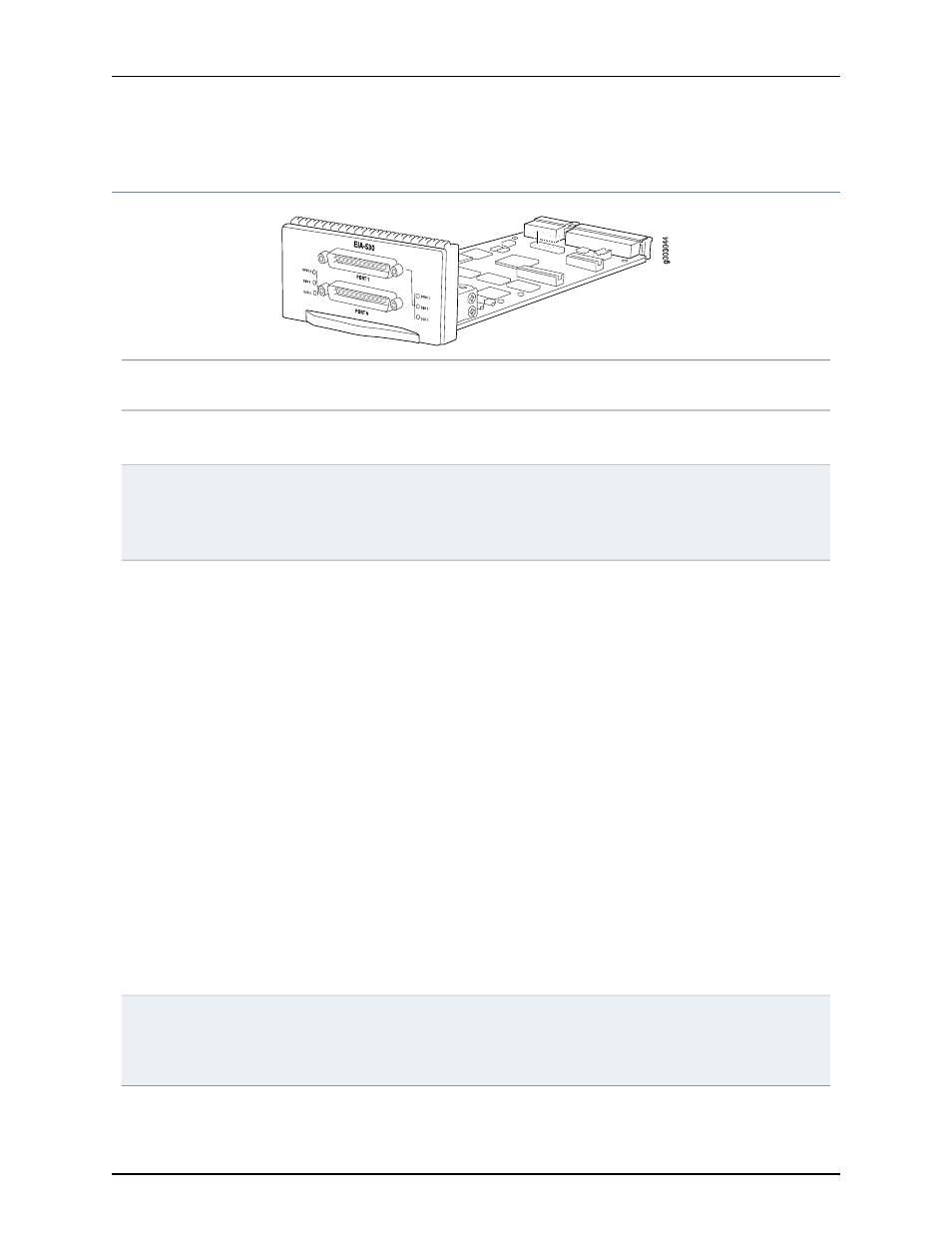

EIA-530 PIC (M7i Router)
• Junos OS Release 6.0 and later Software release
• Two EIA-530, X.21 or V.35 serial ports
• Power requirement: 0.07 A @ 48 V (3.4 W)
Description
• Configured as data terminal equipment (DTE) ports
• Resynchronization signal
• Receives clock rates up to 16 Mbps
• Local, data communications equipment (DCE) local, and DTE remote loopbacks
Hardware features
• Supports four queues per port
• Random early detection (RED)
• Transmitter Signal Element Timing is looped from the timing received on the Transmitted
Signal Element DCE. EIA-530 ports support the ability to invert the Transmit Data Element.
The EIA-530 ports support the following rates:
• 2.048 Mbps
• 2.341 Mbps
• 2.731 Mbps
• 3.277 Mbps
• 4.09 Mbps
• 5.461 Mbps
• 8.192 Mbps
• 16.384 Mbps
• V.35 ports support up to 2.048 Mbps
• X.21 ports support up to 10 Mbps
• Encapsulations
• High-Level Data Link Control (HDLC)
• Frame Relay
• Circuit cross-connect (CCC)
• Translational cross-connect (TCC)
• Point-to-Point Protocol (PPP)
Software features
• Two DB-25 male connectors (one per port, included with PIC)
• V.35 requires an EIA-530 to V.35 cable and connects to a V.35 DTE 34-pin Winchester type
male cable (one per port)
• X.21 requires an EIA-530 to X.21 cable and connects to a X.21 DTE DB-15 male cable
Cables and connectors
