Channelized OC12/STM4 Enhanced IQ (IQE) PIC with SFP (M7i Router)

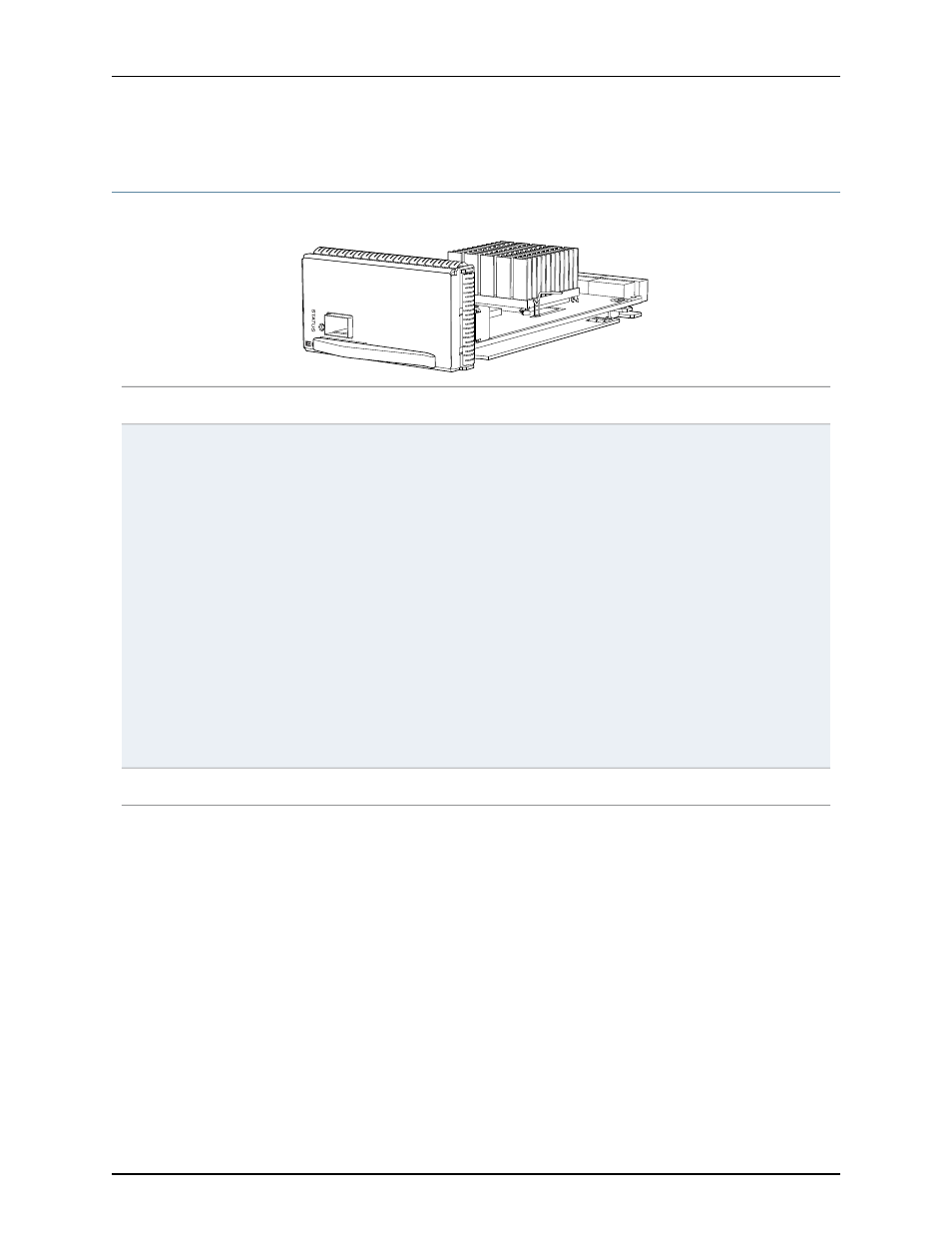

Figure 1: 1-Port IQE PIC
TX
RX
Channelized
STM-4/OC-1
2 SFP
g006014
•
Junos OS Release 10.2 and later (Type 1)
Software release
•
One OC12/STM4 port
•
SONET channelization:
•
1 OC12 channel
•
4 OC3 channels
•
12 DS3 channels
•
336 DS1 channels
•
1011 DS0 channels
•
SDH channelization:
•
1 STM4 channel
•
4 STM1 channels
•
12 E3 channels
•
252 E1 channels
•
12 DS3 channels
•
336 DS1 channels
•
1011 DS0 channels
•
Power requirement: 0.64 A @ –48 V (30.7 W)
Description
•
Port is numbered 0.
Hardware features
