Insignia NS-BRDVD Blu-ray Disc Player
www.insignia-products.com

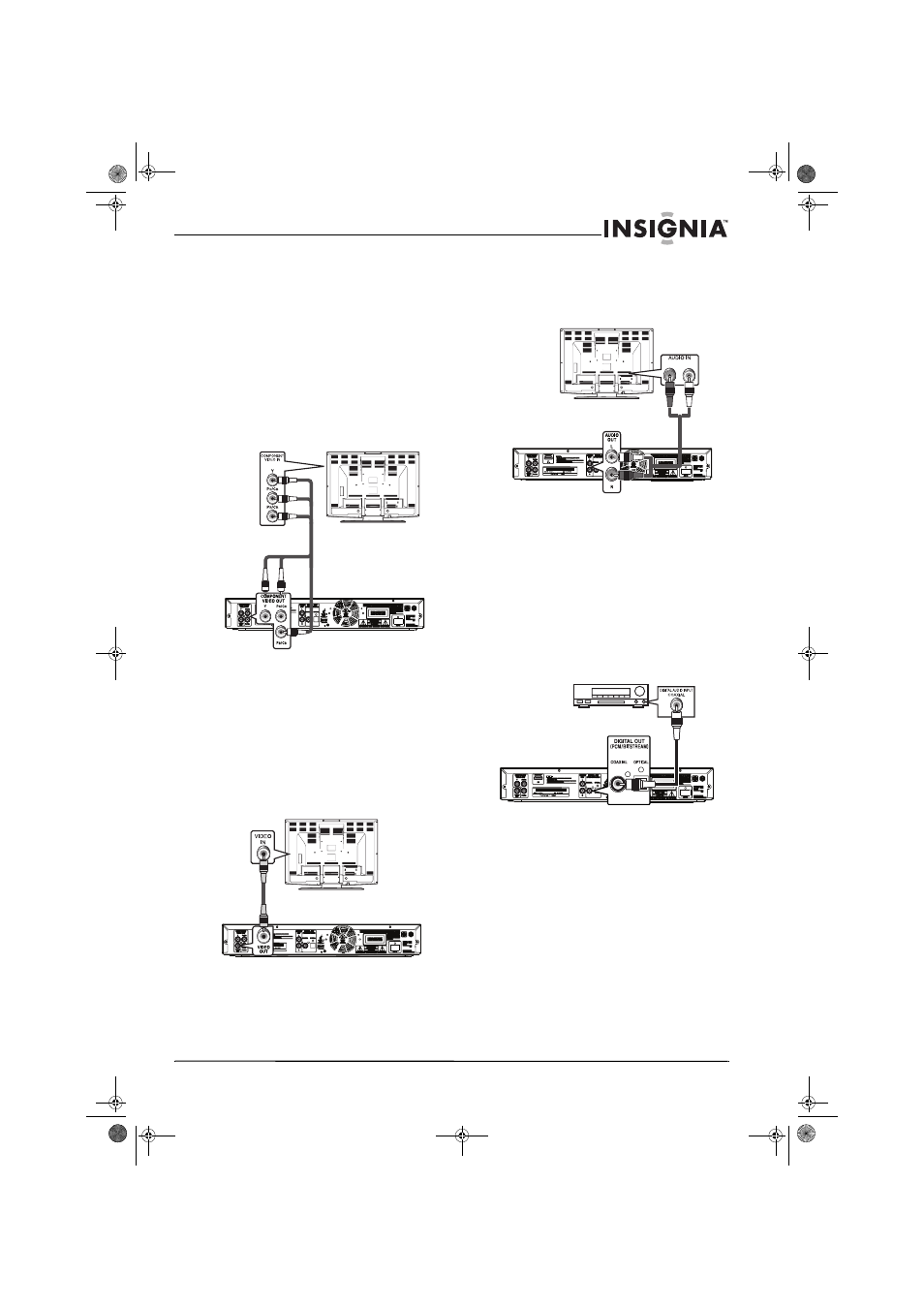

Connecting a TV using component video
A component video connection provides better
video than standard video.
Your player is compatible with progressive scan.
The feature provides you with the higher quality
pictures than traditional output system does. You
may need to adjust the Component Output
setting. For more information, see “Adjusting the
component resolution” on page 21.
To connect a TV using component video:
1 Make sure that your player and the TV are
turned off.
2 Connect one end of a component video cable
(not provided) to the COMPONENT VIDEO
OUT jacks on the back of your player.
3 Connect the other end of the cable to the
COMPONENT VIDEO IN jacks on the TV.
4 Complete the steps in “Connecting standard
audio” on page 9 to connect the standard
audio.
Connecting a TV using standard video
To connect a TV using standard video:
1 Make sure that your player and the TV are
turned off.
2 Connect one end of the standard video cable
(provided) to the VIDEO OUT jack on the
back of your player.
3 Connect the other end of the cable to the
VIDEO IN jack on the TV.
4 Complete the steps in “Connecting standard
audio” on page 9 to connect the standard
audio.
Connecting standard audio
To connect standard audio:
1 Connect one end of the standard audio cable
(provided) to the AUDIO OUT L/R jacks on
the back of your player.
2 Connect the other end of the cable to the
AUDIO IN L/R jacks on the TV.
Connecting an audio system
You can connect a digital or analog audio
system.
Connecting a digital audio coaxial system
To connect a digital audio coaxial system:
1 Make sure that your player and the TV are
turned off.
2 Connect one end of a digital audio coaxial
cable (not provided) to the DIGITAL OUT
(PCM/BITSTREAM) COAXIAL jack on the
back of your player.
3 Connect the other end of the cable to the
DIGITAL AUDIO COAXIAL INPUT jack on
the digital audio system.
Component video cable
Video cable
L R
Audio cable
Digital audio
coaxial cable
