IBM Dual AMD OpteronTM SFF Barebone ZMAXdp User Manual
Page 51
SFF Workstation Installation Guide
User’s Manual 51

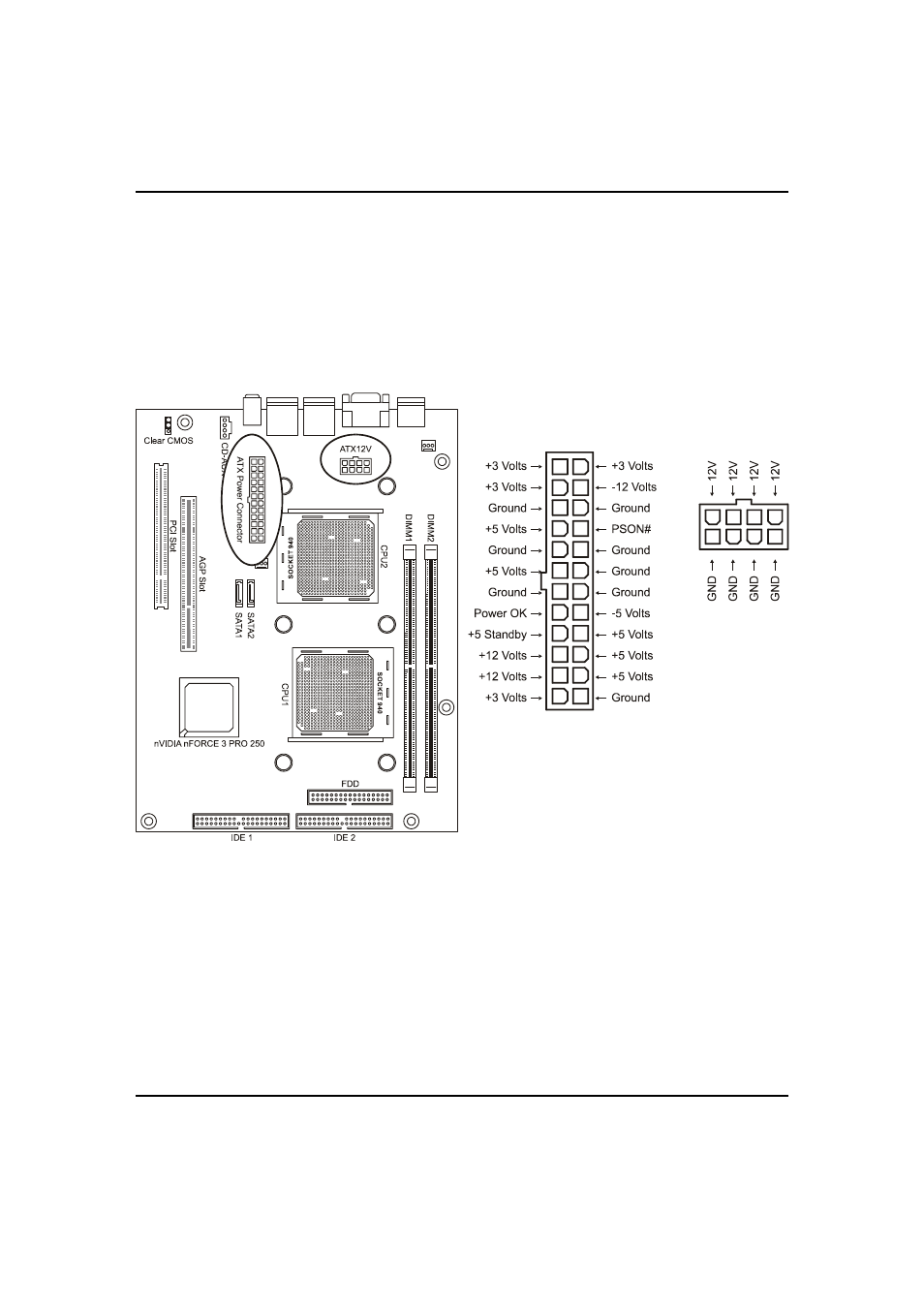

Power Connectors
The two power connectors let you attach two leads from an ATX12V power supply to the
motherboard. The board requires a 24-pin ATX connector plus a 8-pin ATX12V connector. Insert
the 24-pin lead of the ATX12V power supply into the first 20 holes of the power connector leaving
the last four empty. Insert the 8-pin ATX12V lead into the another power connector.
