IBM Dual AMD OpteronTM SFF Barebone ZMAXdp User Manual
Page 29
SFF Workstation Installation Guide
User’s Manual 29
Installing hard disk drives
ZMAX comes with two available internal bay to hold two standard 3.5-inch hard disk drive. Your
system can support ATA-33, ATA-66, or ATA-100 hard disk drives. IWILL recommends using an
ATA-100 hard disk drive to take full advantage of your system's features.

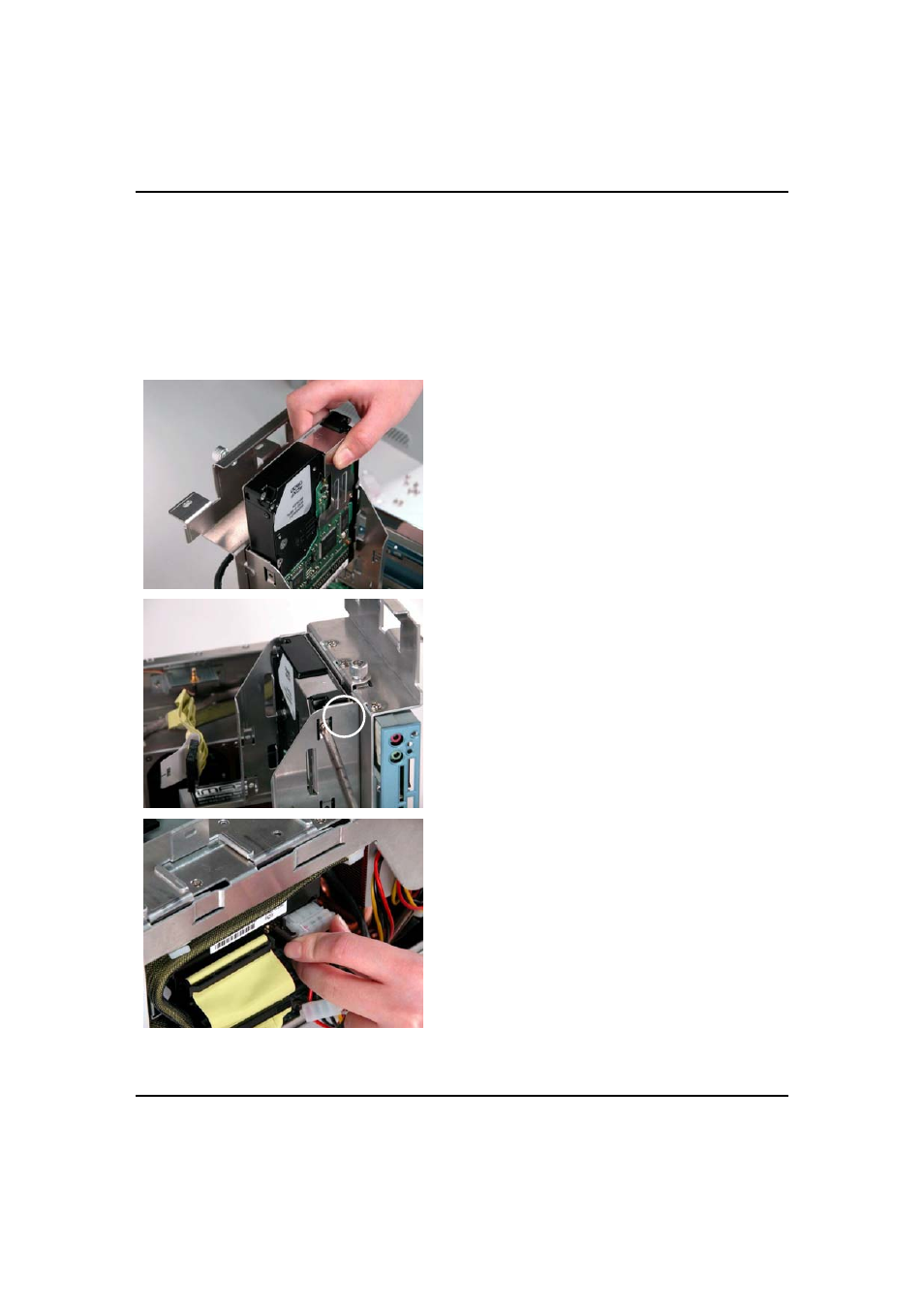

Slip the HDDs into the bay
Carefully slip the HDDs into the disk drive bay.
Your new hard disk drive is supplied with the
necessary screws.
Attaching the drive screws
Ensure that the four screw holes are properly
aligned. Tighten in the screws. Do not
over-tighten these screws when securing the
drive to the drive holder.
Connect the cables
Connect the IDE cable and power cable to the
hard disk drive.
