IWILL ZMAXdp
22 User’s Manual
Central Processing Unit (CPU) Overview
The motherboard comes with a surface mount two 940-pin Zero Insertion Force (ZIF) socket
designed for the AMD Opteron™ processors.

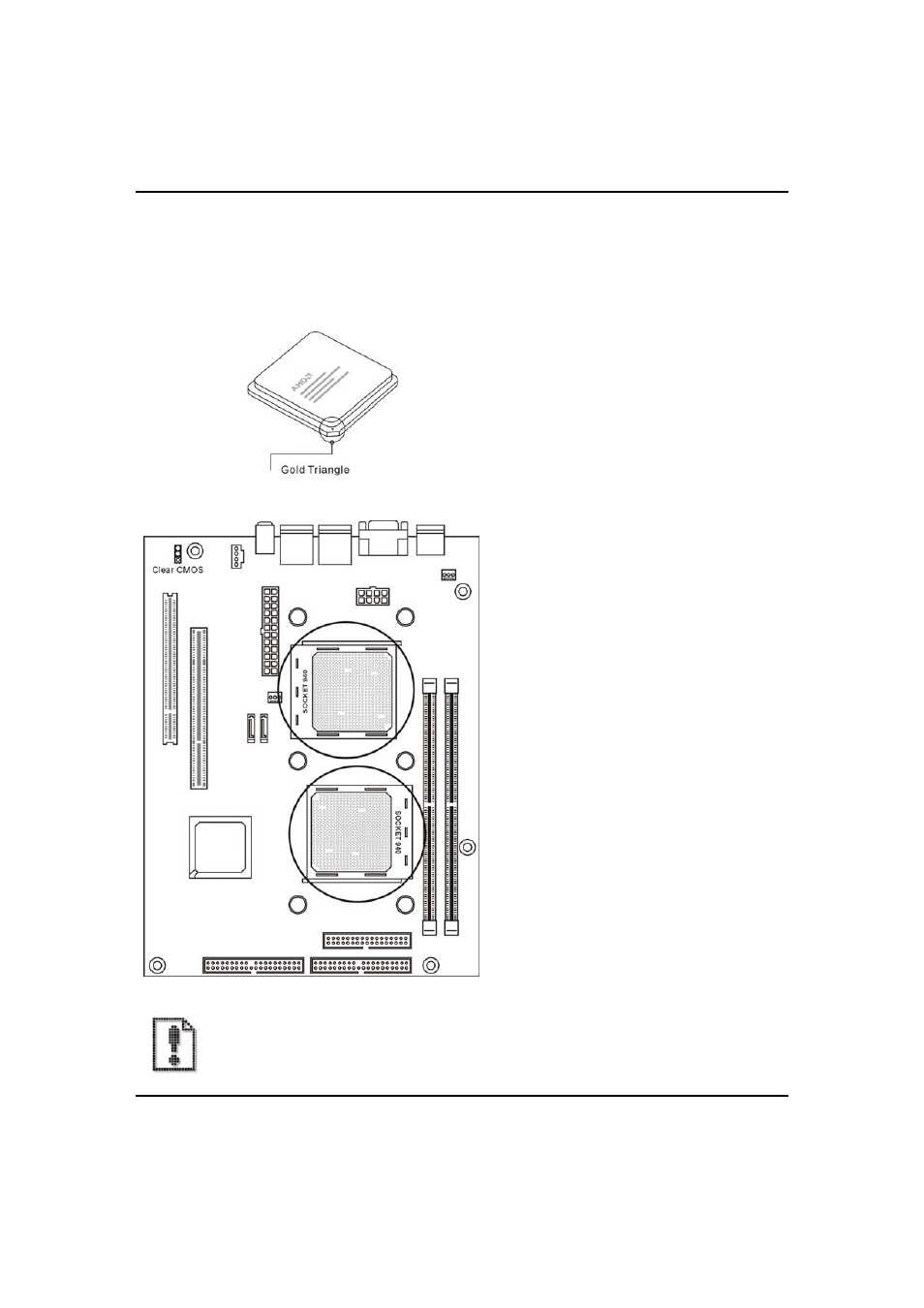

Gold Triangle on the CPU
Take note of the marked corner (with gold
triangle) on the CPU. This mark should
match a specific corner on the socket to
ensure correct installation.
940-pin ZIF socket
Locate the two 940-pin ZIF socket on the
motherboard.
The CPU fits only in one correct orientation. DO NOT force the CPU into the socket to
prevent bending the pins and damaging the CPU!
