IBM Dual AMD OpteronTM SFF Barebone ZMAXdp User Manual
Page 37
SFF Workstation Installation Guide
User’s Manual 37

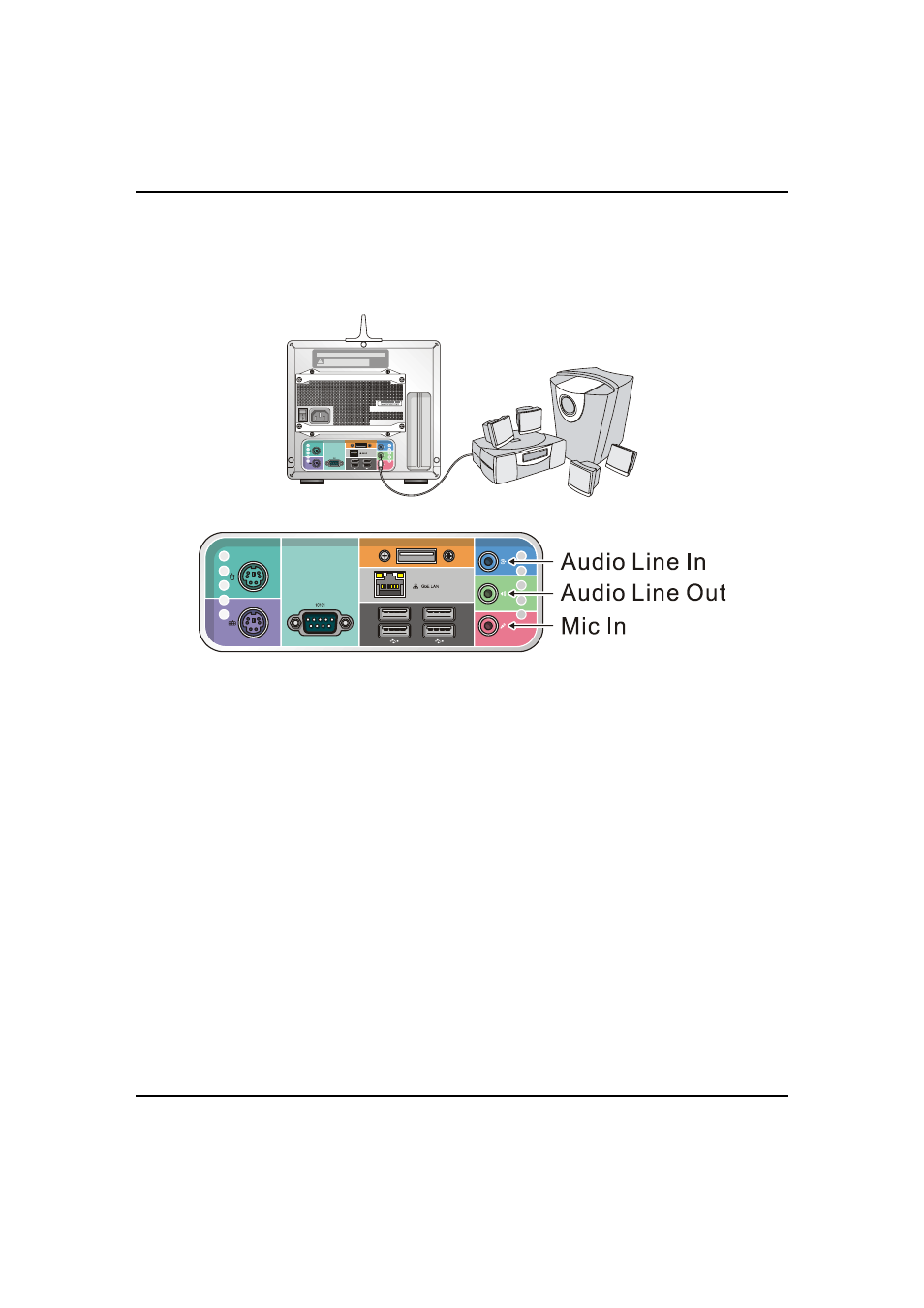

Connecting the Speakers
Plug the Speaker cord into the rear of the computer by Audio Line Out.
1. Line In jack. This Line In (light blue) jack connects a tape player or other audio sources. In
6-channel mode, the function of this jack becomes Bass/Center.
2. Line Out jack. This Line Out (lime) jack connects a headphone or a speaker. In 4-channel and
6-channel mode, the function of this jack becomes Front Speaker Out.
3. Mic In, Microphone jack. This Mic (pink) jack connects a microphone. In 4-channel and
6-channel mode, the function of this jack becomes Rear Speaker Out.
