IBM Dual AMD OpteronTM SFF Barebone ZMAXdp User Manual
Page 13
SFF Workstation Installation Guide
User’s Manual 13

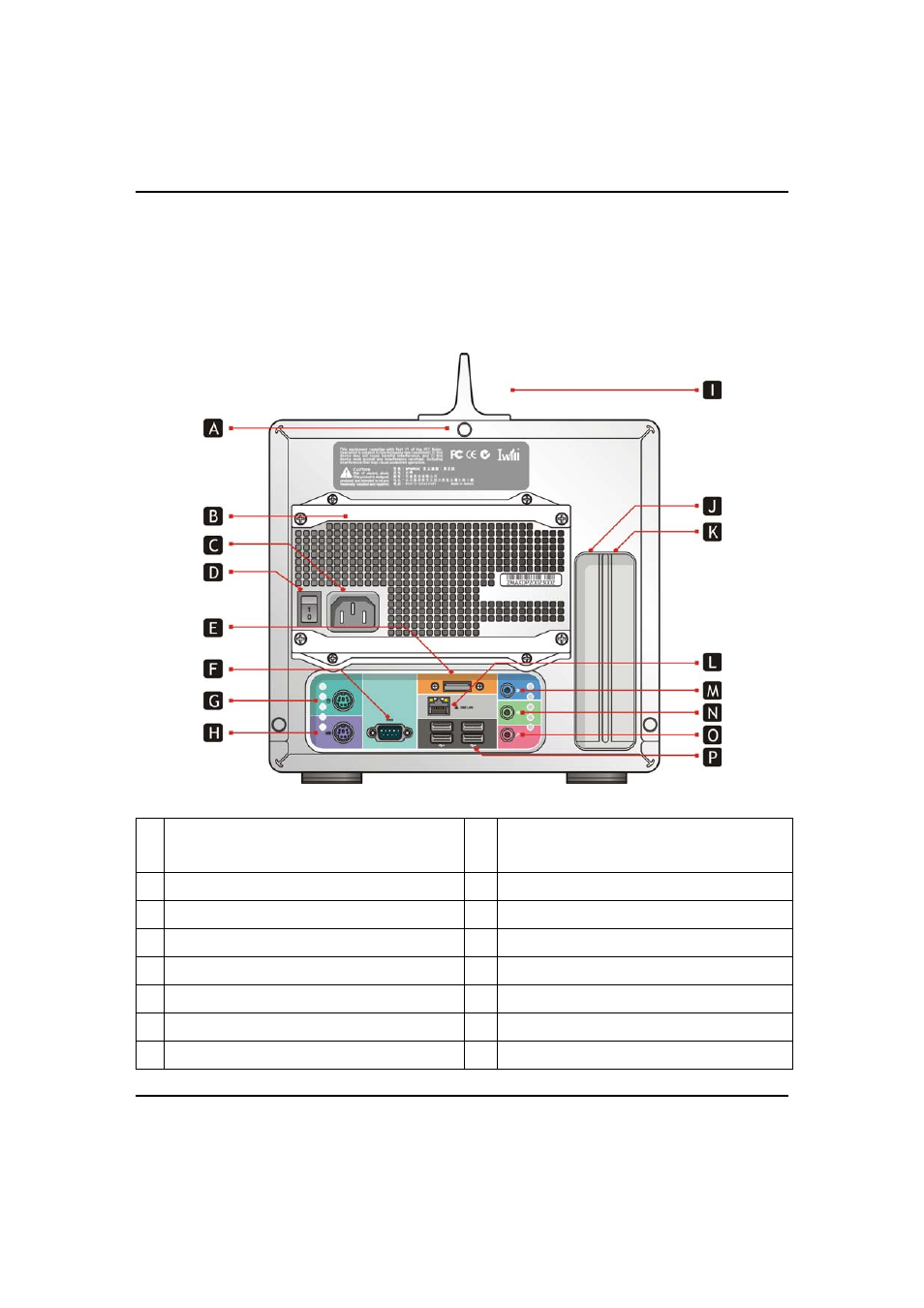

ZMAXdp Rear Panel Features:
The back panel of your ZMAXdp contains the ports for supplied and optional accessories. The
icons on the back panel locate and identify the ports on your computer.
A Screws on rear
I
WLAN Antenna
(WLAN Version Only)
B Power supply
J
Empty AGP slot
C AC Input port
K
Empty PCI slot
D Power supply switch
L
Ethernet
E External SATA
M
Line in
F Serial port
N
Line out
G PS/2 mouse port
O
Microphone
H PS/2 keyboard
P
USB 2.0 ports
