IBM Dual AMD OpteronTM SFF Barebone ZMAXdp User Manual
Page 19
SFF Workstation Installation Guide
User’s Manual 19

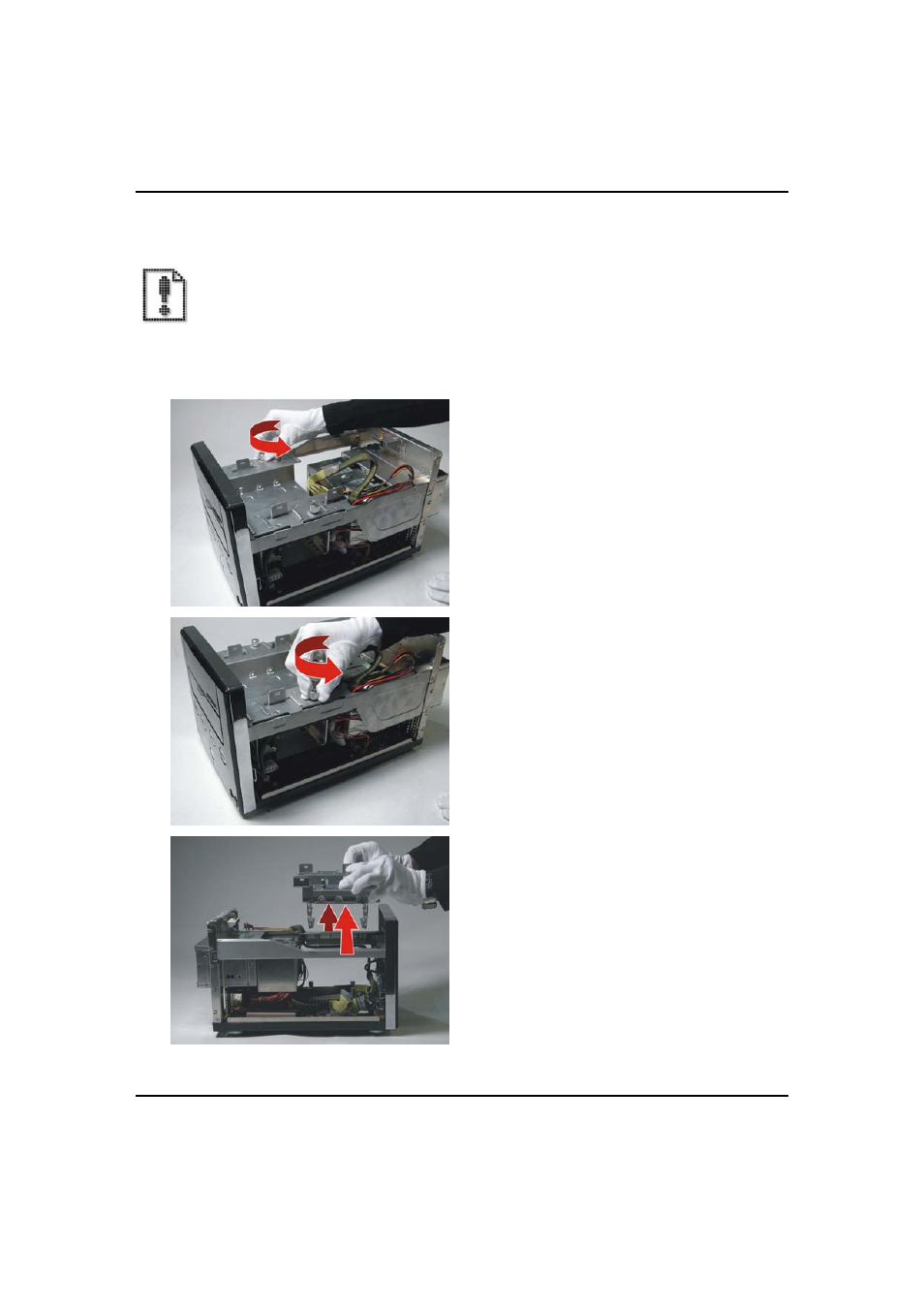

Remove the drive holder
Please remove the drive holder entirely. It would be easier to install graphic card,
CPUs and memory.
Release the screws from the CDROM/ HDD rack with a screw driver.
Release the screw from the rack
Release the two screws holding the rack
to the casing. Set one screws aside..
Remove this screw
Remove another screw holding the rack to
the casing and set it aside.
Remove the drive holder
You can remove the drive holder entirely
for easy install AGP, CPU and system
memory.
