IBM Dual AMD OpteronTM SFF Barebone ZMAXdp User Manual
Page 30
IWILL ZMAXdp
30 User’s Manual
Installing a optical drive
ZMAX comes with one available internal bay to hold a standard 5.25-inch optical drive. Your
system can support IDE CDROM/ DVD/ DVD+-RW drives. Follow these steps to install a
CD/DVD-ROM drive.

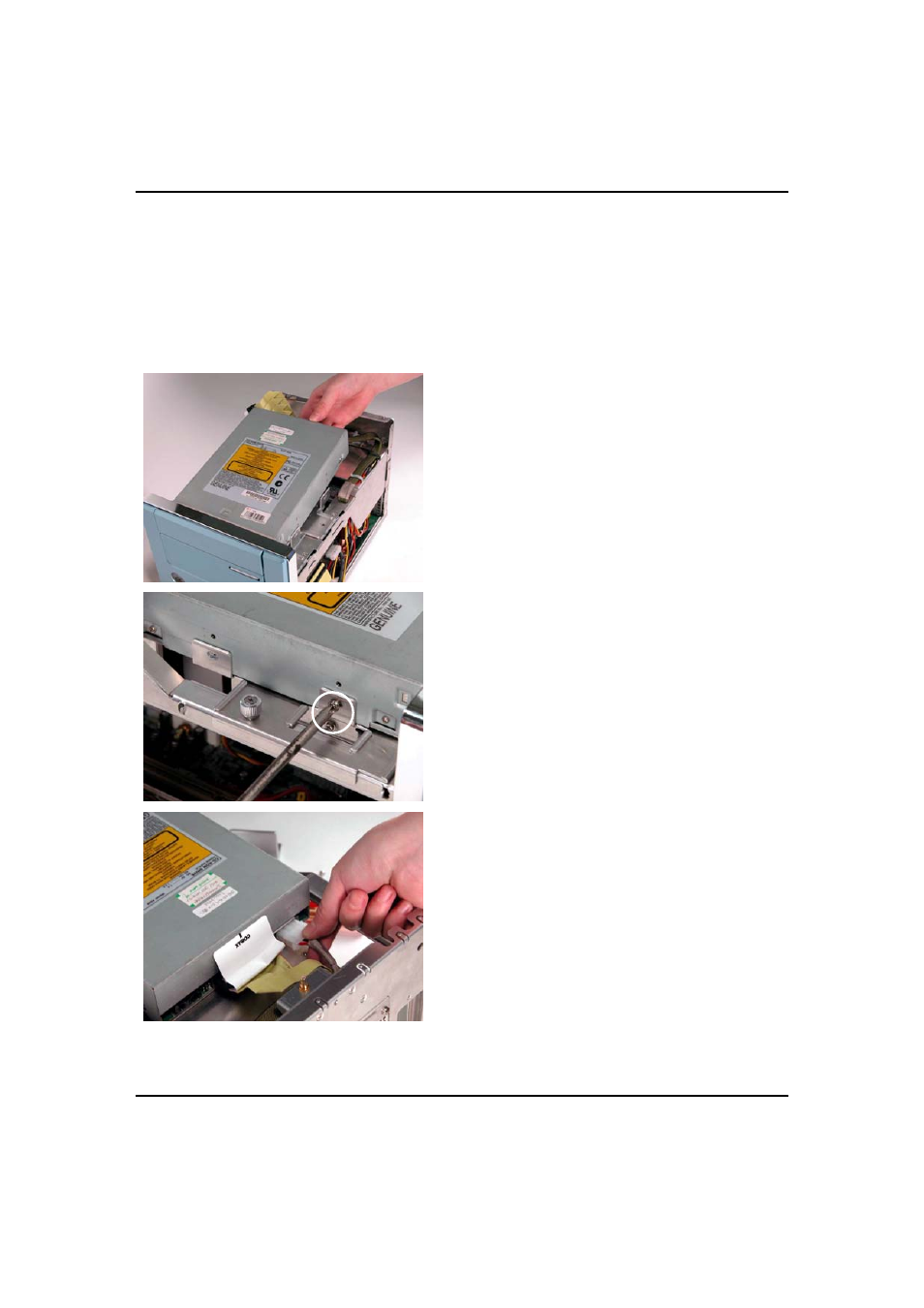

Slip the CDROM/ DVD into the bay
Carefully slip the optical drive into the CDROM
bay. Your new CDROM drive is supplied with the
necessary screws.
Attaching the drive screws
Ensure that the four screw holes are properly
aligned. Tighten in the screws. Do not over-tighten
these screws when securing the drive to the drive
holder.
Connect the cables
Connect the both data and power cable to the
optical drive. Connect the Line-Out cable to
motherboard.
