Step 3: Connect the Modem to Your System
Placing the modem in a convenient location, connect it to your com-
puter’s serial port, to the telephone line, to AC power, and, optionally,
to your telephone (UK and international models do not have a tele-
phone jack). If yours is an MT5634ZBAV model, you can also optionally
connect it to a microphone and a speaker or sound card.
PWR
RS232
PHONE
LINE

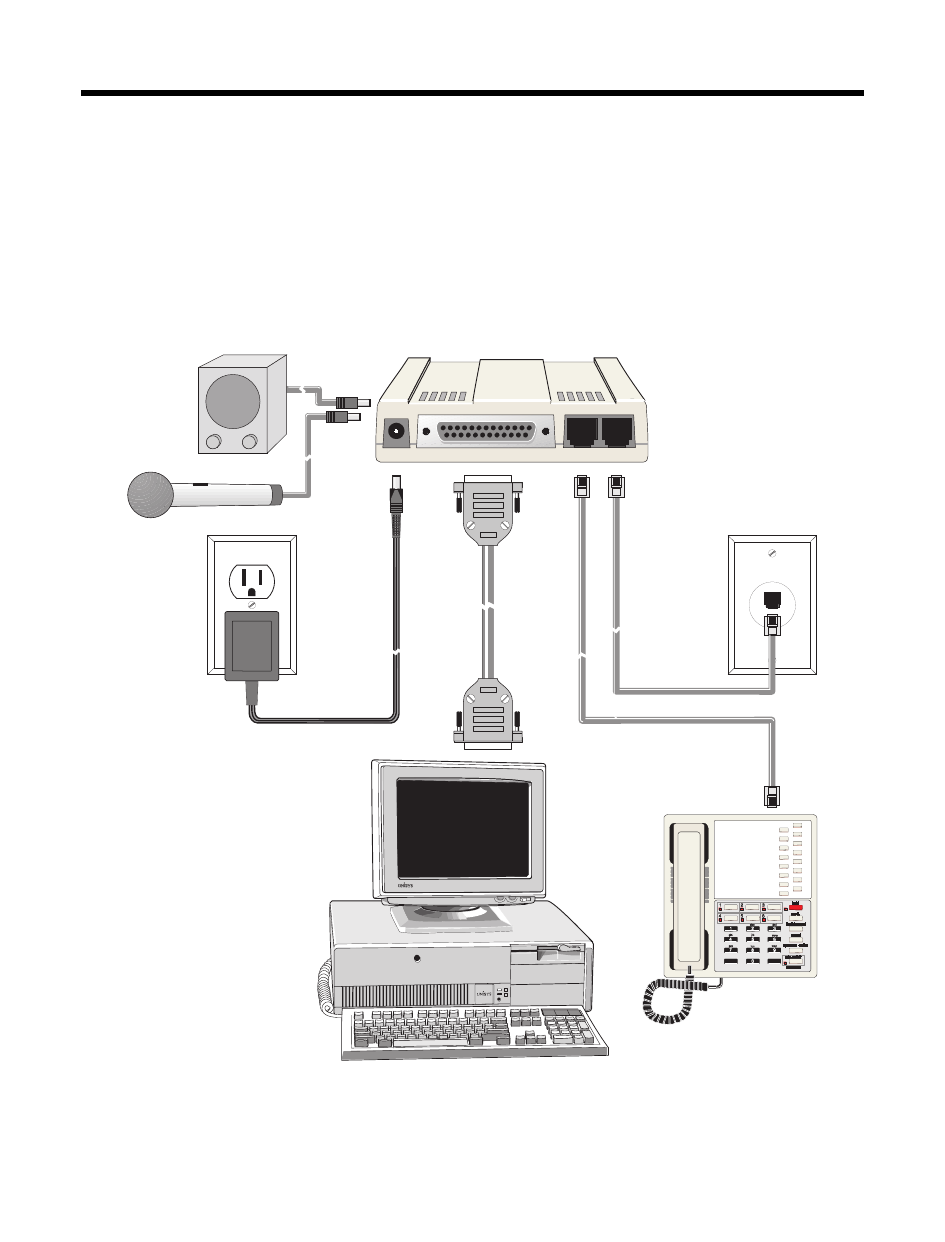

Figure 2-3. Modem connections.
