SECTION 7

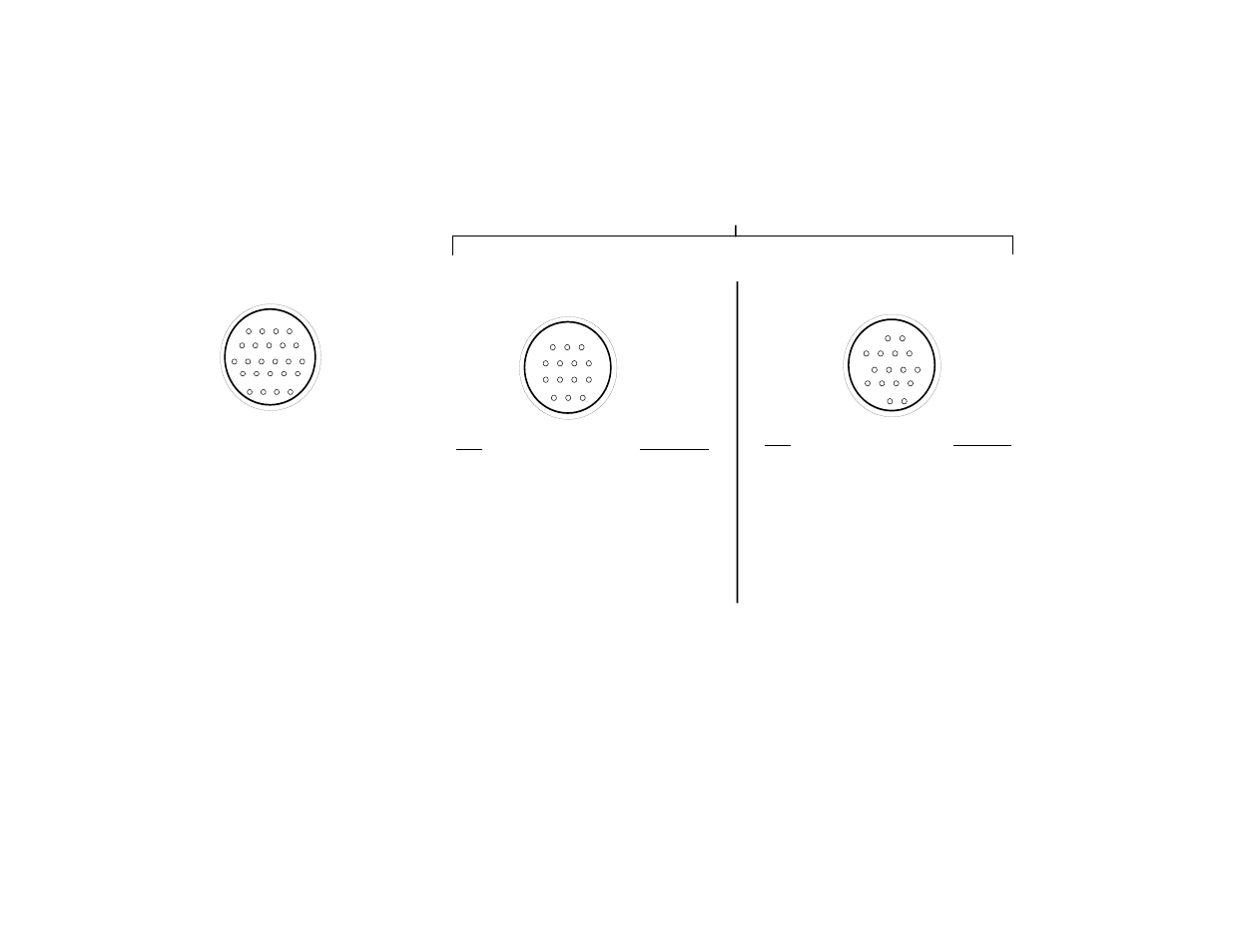

ELECTRICAL SCHEMATICS
J2
24 pin cable,
Both connectors
female
12 11 10
24 23 22
9
7 6 5
4 3 2 1
8
Pin #’s 1-12
Thumbwheel Ribbon Cable
starting with Pin #1 - blue
Pin #22 Red, Thermocouple
Pin #23 Wht, Thermocouple
Pin #24 Ground
14 pin cable
at Machinery Compartment,
Male end
Pin
Wire Color
#1
Control Fuse
Blk
#2
Air Switch
Orn
#3
Conveyor AC
Yel
#4
Transformer
Purple
#5
High Flame Solenoid
Blu
#6
Contactor
Brn
#13
Neutral
Wht
#14
Ground
Grn
J1
16 pin cable
at Remote Control,
Female end
Pin
Terminal
#1
Temperature Control
#9
#2
Heat Switch
#3
#3
Conveyor Switch
#4
#4
Temperature Control
#5
#5
Temperature Control
#4
#6
Temperature Control
#10
#15
Temperature Control
L2
#16
Ground
14
13
5 6
1 2 3
4
5 4
2 1
6
3
16 15
