SECTION 2
INSTALLATION
24"
610mm
6
ON
OFF
6
ON
OFF
24"
610mm
To
Oven
To
Oven

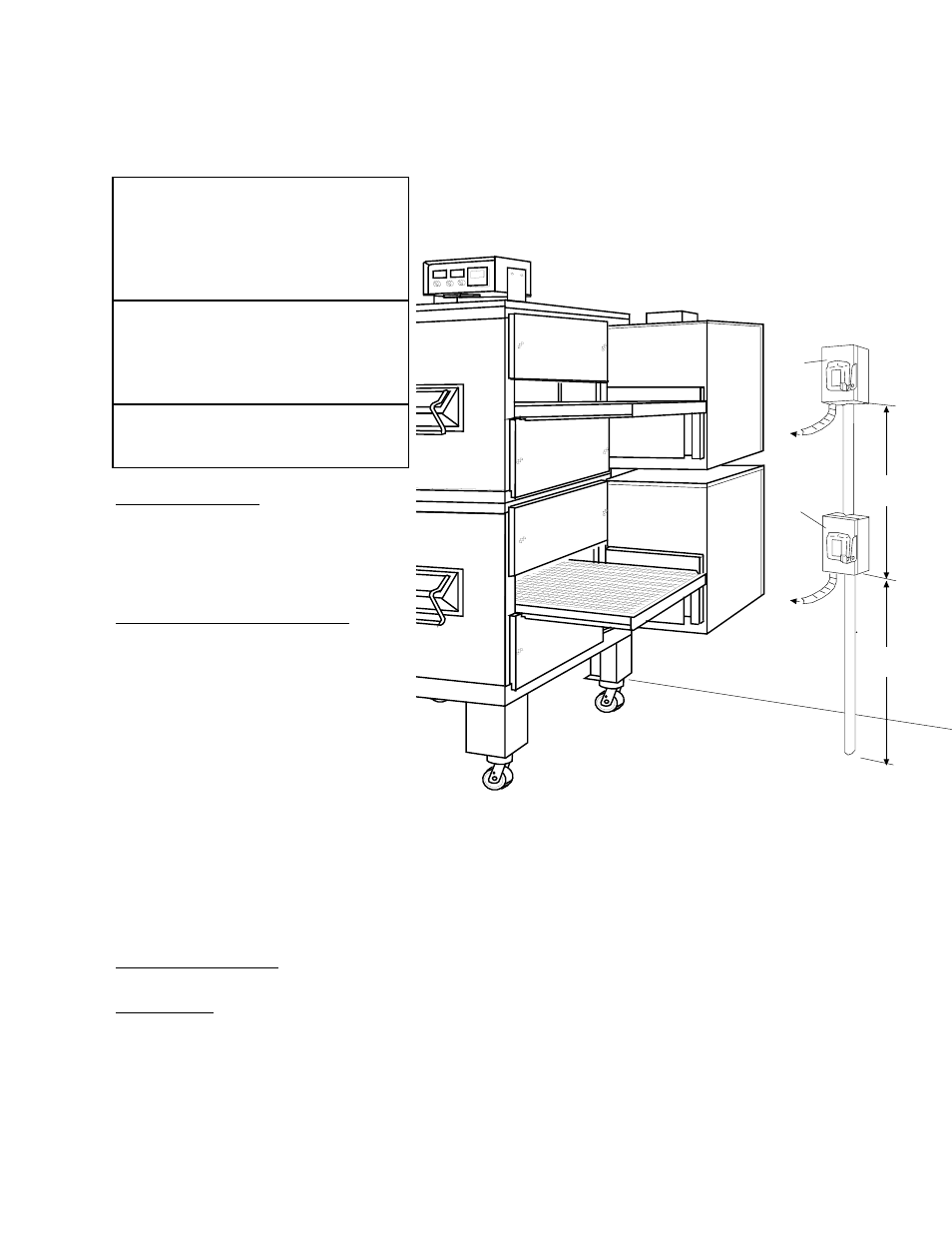

ELECTRIC OVEN ROUGH-IN
UTILITY ROUGH-IN DIMENSIONS AND POSITIONING
FOR PS200-R68 SERIES OVENS
CAUTION
IT IS REQUIRED THAT THE OVEN BE
PLACED UNDER A VENTILATION
HOOD FOR ADEQUATE AIR SUPPLY
AND VENTILATION.
Figure 2-9
Typical Installation
ELECTRICAL SUPPLY
PROVIDED BY CUSTOMER
DO NOT USE CONDUIT
FOR GROUND
CIRCUIT BREAKER
Separate circuit breaker with lockout/
tagout electrical shutoff for each
cavity. Wire each cavity separately.
100 Amp circuit breaker for 200-240V,
or 50 Amp circuit breaker for 380-480V.
ELECTRICAL SPECIFICATIONS
DOMESTIC: 208-240V main blower
motors and elements, 3 Ph, 75 Amp
draw, 50/60 Hz, 120V control circuit, 4
pole, 5 wire system per cavity (3 hot, 1
neut, 1 grd).
or
DOMESTIC: 220-240V main blower
motors and elements, 3 Ph, 75 Amp
draw, 50/60 Hz, 120V control circuit, 3
pole, 4 wire system per cavity (3 hot, 1
grd).
or
EXPORT: 380V or 400-416V main
blower motors and elements, 3 Ph, 50
Amp, 50/60 Hz, 120V transformer
control circuit, 4 pole, 5 wire system per
cavity (3 hot, 1 neut, 1 grd).
ELECTRICAL RATING
26 kW/HR
SUGGESTED
If space permits service should be
located at the drive end of the ovens to
allow access to switches and valves.
