12
SECTION 2
INSTALLATION
PARTS LIST FOR SERIES PS200-R68 SINGLE OVEN OPTION KIT
PS200-R68, P/N 31360
PS220-R68, P/N 30752
PS224-R68, P/N 49025-0016
ITEM QTY PS200-R68 PS220-R68 PS224-R68 DESCRIPTION
NO. PART NO. PART NO. PART NO.
1 1 35900-0055 37900-0184 35900-0411 BASE PAD
2 4 37900-0102 37900-0102 37900-0102 LEGS
3 2 22290-0009 22290-0009 22290-0009 SWIVEL CASTER W/LOCKING BRAKE
4 2 22290-0010 22290-0010 22290-0010 SWIVEL CASTER
5 32 A11039 A11039 A11039 3/8" LOCKWASHER
6 32 21416-0001 21416-0001 21416-0001 3/8" FLAT WASHER
7 32 220373 220373 220373 3/8 - 16 SCREW HEX HD SS
8 4 21256-0008 21256-0008 21256-0008 SCREWS FOR TOP 10-32 X 3/8" RH
9 32 21296-0005 21296-0005 21296-0005 10-32 X 3/4" SCREW HEX WASHER HD SS
10 1 22450-0228 22450-0228 22450-0228 RESTRAINT CABLE ASSEMBLY
13 1 31319 31319 31319 LABEL, UPPER
14 1 31320 31320 31320 LABEL, LOWER
15 1 32116 32116 32116 WIREWAY ASSEMBLY
16 2 21516-0001 21516-0001 21516-0001 POP RIVETS
17 1 32227 32227 32227 INSTRUCTION, CONTROL BOX INSTALLATION
Not shown 1 32023 31261 30878 OVEN TOP
PARTS LIST FOR SERIES PS200-R68 DOUBLE OVEN OPTION KIT
PS200-R68, P/N 31361
PS220-R68, P/N 31363
PS224-R68, P/N 31362
ITEM QTY PS200-R68 PS220-R68 PS224-R68 DESCRIPTION
NO. PART NO. PART NO. PART NO.
1 1 35900-0055 37900-0184 35900-0411 BASE PAD
2 4 37900-0102 37900-0102 37900-0102 LEGS
3 2 22290-0009 22290-0009 22290-0009 SWIVEL CASTER W/LOCKING BRAKE
4 2 22290-0010 22290-0010 22290-0010 SWIVEL CASTER
5 32 A11039 A11039 A11039 3/8" LOCKWASHER
6 32 21416-0001 21416-0001 21416-0001 3/8" FLAT WASHER
7 32 220373 220373 220373 3/8 - 16 SCREW HEX HD SS
8 4 21256-0008 21256-0008 21256-0008 SCREWS FOR TOP 10-32 X 3/8" RH
9 32 21296-0005 21296-0005 21296-0005 10-32 X 3/4" SCREW HEX WASHER HD SS
10 1 22450-0228 22450-0228 22450-0228 RESTRAINT CABLE ASSEMBLY
11 1 30042 30042 30042 VENT EXTENSION
12 1 30039 30039 30039 OFFSET CROSSOVER VENT
13 1 31319 31319 31319 LABEL, UPPER
14 1 31320 31320 31320 LABEL, LOWER
15 1 32116 32116 32116 WIREWAY ASSEMBLY
16 2 21516-0001 21516-0001 21516-0001 POP RIVETS
17 1 32227 32227 32227 INSTRUCTION, CONTROL BOX INSTALLATION
Not Shown 1 32023 31261 30878 OVEN TOP

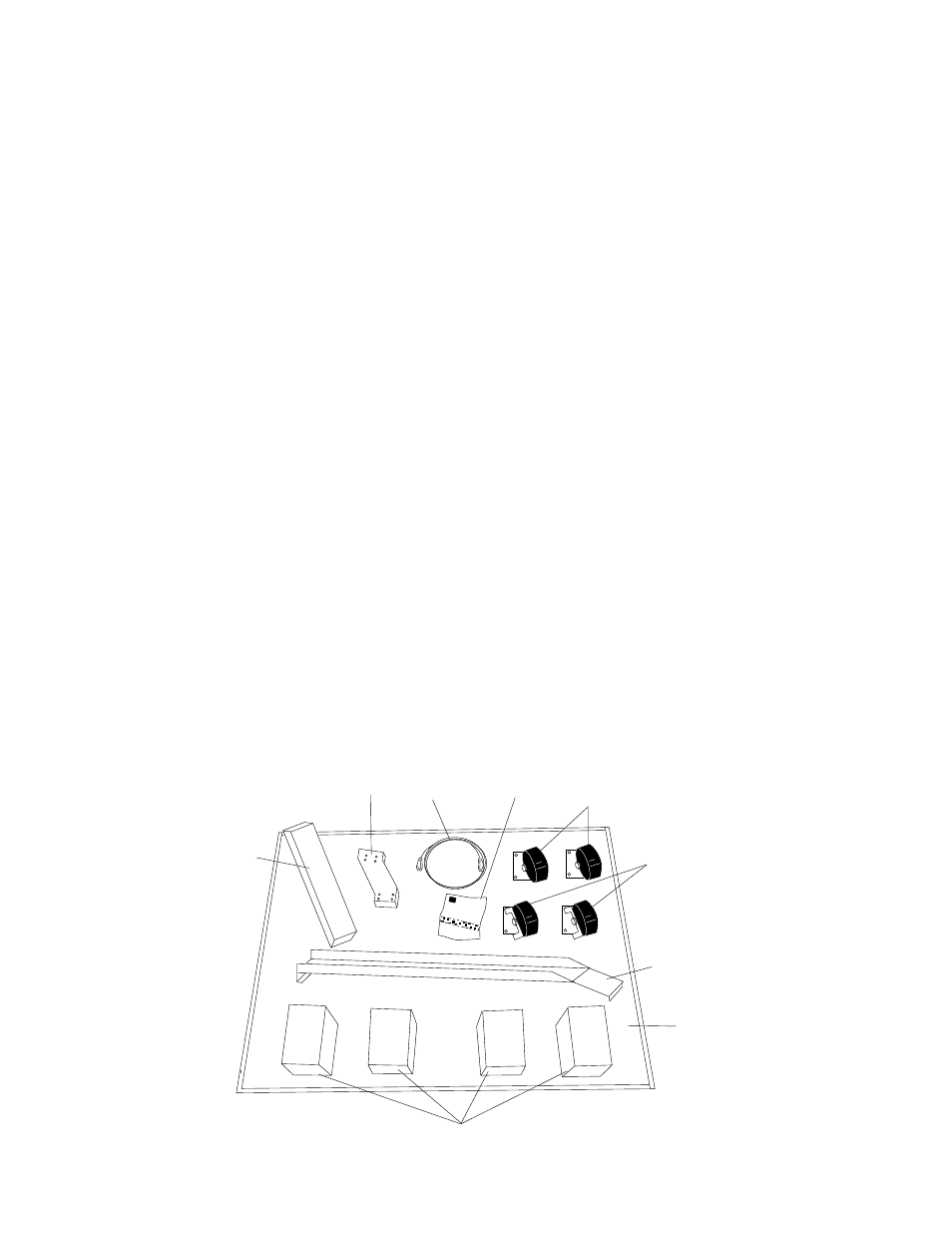

Figure 2-2. Series PS200-R68 Single and Double Oven Option Kits
Middleby Marshall
12
10
5,6,7,8,9,13,
14,16,17
4
3
2
11
1
15
