36
SECTION 4
MAINTENANCE
Middleby
Marshall
Middleby
Marshall

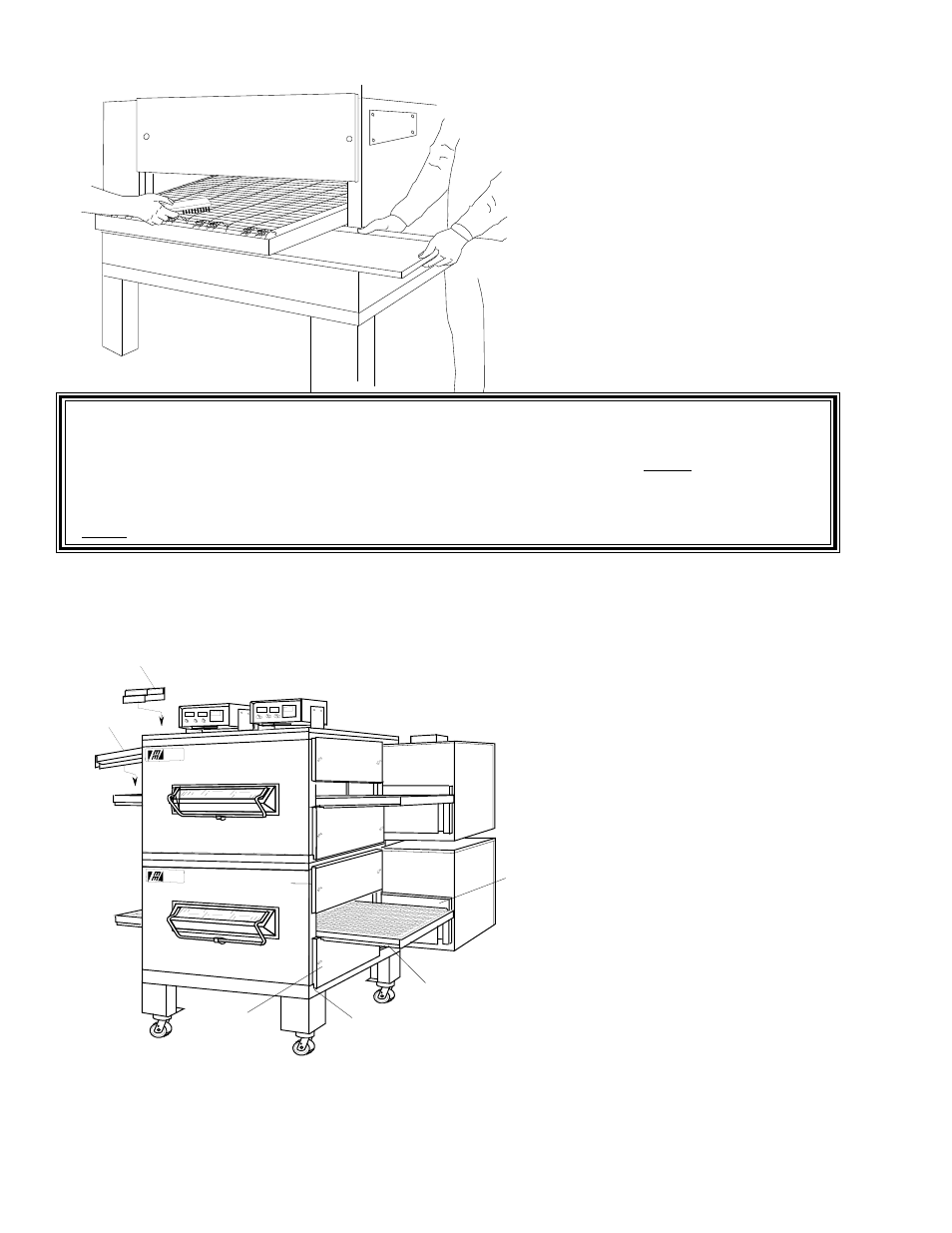

C. Crumb Pans
Remove the crumb pan(s) at both
ends of the oven. Crumb pans are
removed by sliding out as shown in
Figure 4-2. Wash the crumb pans in
the pot sink.
CAUTION
Possibility of injury from rotating parts and electrical shock exist in this oven.
Turn off and lockout or tagout electrical supply to oven(s) before
attempting to disassemble, clean
or service oven(s).
Never disassemble or clean the oven with the fan switch or any other part of the oven turned "on".
II.MAINTENANCE WEEKLY - Oven Disassembly and Cleaning
Use the following instructions to clean the oven interior once a week. To clean the interior 2 people are required to
disassemble the oven. Disassemble
the oven the night before and soak the
removed parts overnight. Then clean
the oven in the early morning before
production and line setup. Approxi-
mately 2 hours is required.
When cleaning your Series PS200-R68
oven note the following:
PRECAUTIONS-
1. Do not use excessive water or satu-
ration of oven insulation will occur.
2. Do not get water in the fan area
located in the bake chamber.
A. Removing conveyor from oven
for cleaning
1. Remove crumb pans, conveyor end
stops and conveyor rear stops shown
in Figure 4-2.
2. Remove upper end plugs from each
end of oven. The two wing screws in
each end plug are loosened and then
the end plugs are removed and set
aside. The wing screws should be held
in the end plugs by locking washers. If
your wing screws drop out of the end
plugs order new screws from your local
service agency.
Figure 4-3.
Figure 4-2.
Removable
Crumb
Pans
Removable
Crumb
Pans
Conveyor
End Stop
Conveyor
Rear Stop
Notch In Lower
End Plug
