45
SECTION 4
MAINTENANCE
2. Reassemble bottom fingers into oven first by pushing in on their back side.
Refer to Figure 4-16 for correct finger position in oven.
Extended
Lip
Tab on
Outer Plate
Blocking
Tab
Tab on
Outer Plate
Tab to Rest
End Plug On
Flange of Finger
Manifold
IMPORTANT: Only M6 fingers fit in the
bottom row. All M3 finger cover plates have
extended lips at front. This extended lip will
not allow these fingers to be installed in the
bottom row.

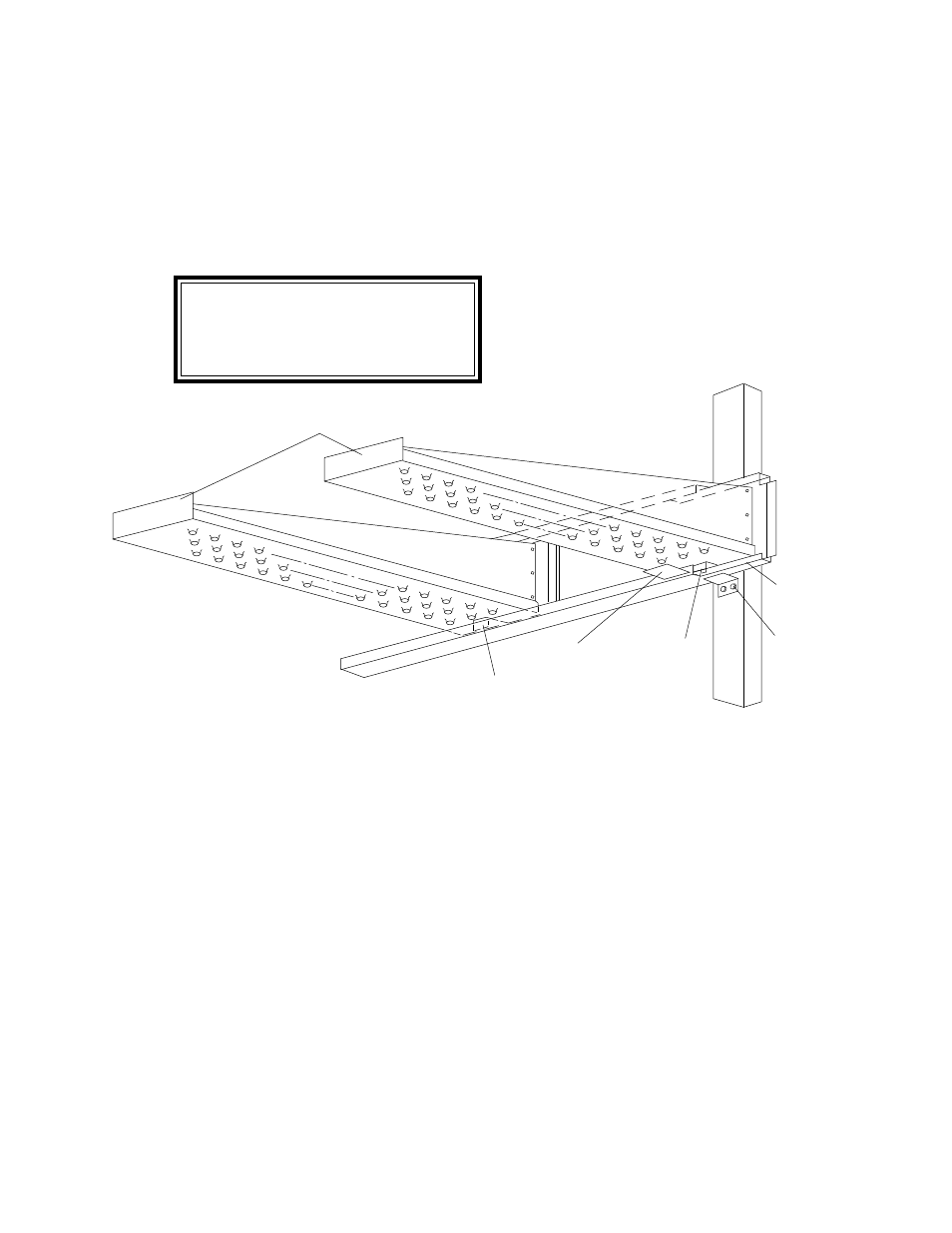

a. IMPORTANT: When inserting fingers the tab on
the outer plate must be in the groove as shown in the
illustration. There is a blocking tab on the outside of
the groove which will prevent inserting the finger in
the groove if the outer plate is moved away from the
flange of the finger manifold. Refer to Figure 4-22.
Figure 4-22.
