SECTION 2
INSTALLATION

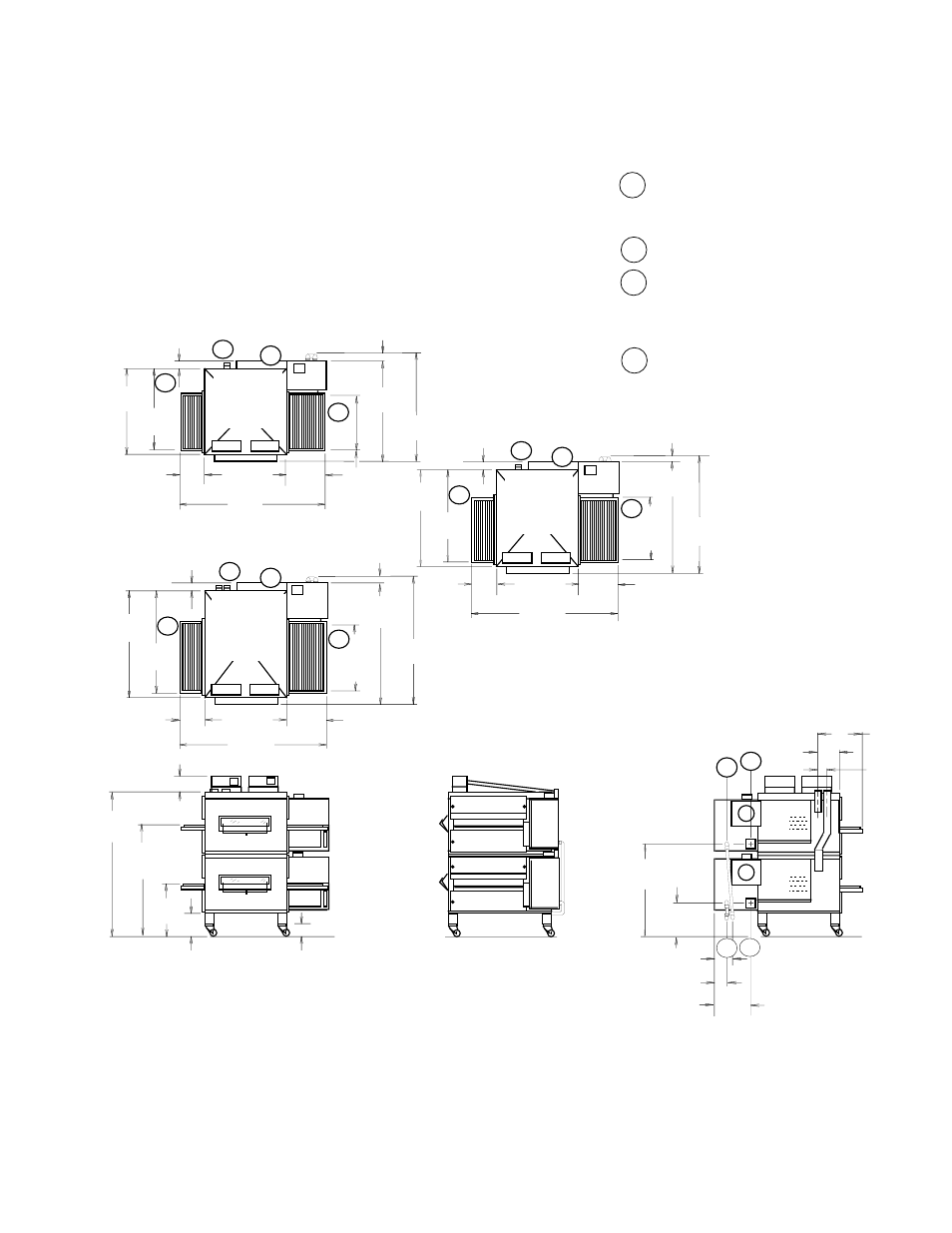

Figure 2-3. Series PS200-R68 Oven Dimensions
3"
76mm
50-1/2"
1283mm
48-1/2"
1232mm
3
3
56-3/4”
1441mm
4
3
40-1/2"
1028mm
12-1/2"
318mm
27-1/2"
699mm
69-1/2"
1765mm
7-1/4"
184mm
47"
1194mm
5"
127mm
14-1/2"
368mm
1
54"
11372mm
2
20"
508mm
19-3/4"
502mm
9-3/4"
248mm
3-1/8"
79mm
1
2
38-1/2"
978mm
36-1/2"
927mm
3
3
44-3/4”
1137mm
4
3
40-1/2"
1028mm
68"
1727mm
10"
254mm
3"
76mm
42-1/2"
1080mm
40-1/2"
1029mm
3
3
48-3/4”
1238mm
4
3
40-1/2"
1028mm
3"
76mm
68"
1727mm
10"
254mm
17-1/2"
445mm
68"
1727mm
10"
254mm
17-1/2"
445mm
6-1/2"
165mm
17-1/2"
445mm
45-3/4”
1162mm
1”
25mm
57-3/4”
1467mm
1”
25mm
1”
25mm
49-3/4”
1264mm
7”
178mm
1 GAS OVEN: Gas Inlet
ELECTRIC OVEN: Conduit for
Electrical Connection
GAS OVEN: Electrical Junction Box
RECOMMENDED MINIMUM
CLEARANCES:
Rear of Oven to Wall - 3" (76mm)
Non-Drive End of Oven to Wall - 0"
Drive End of Oven to Wall - 18" (457mm)
OVEN VENT - GAS OVEN ONLY
2" x 3" (50mm x 75mm)
2
3
4
NOTE: The Model PS200-R68 Series ovens are
manufactured with the conveyor drive at either the right or
left end of the oven.
32"
813mm
Cooking
Zone
24"
813mm
Cooking
Zone
20"
813mm
Cooking
Zone
Rear
View End
View
Front
View
Model
PS220-R68
Top View
Model
PS224-R68
Top View
Model
PS200-R68
Top View
