38
SECTION 4
MAINTENANCE

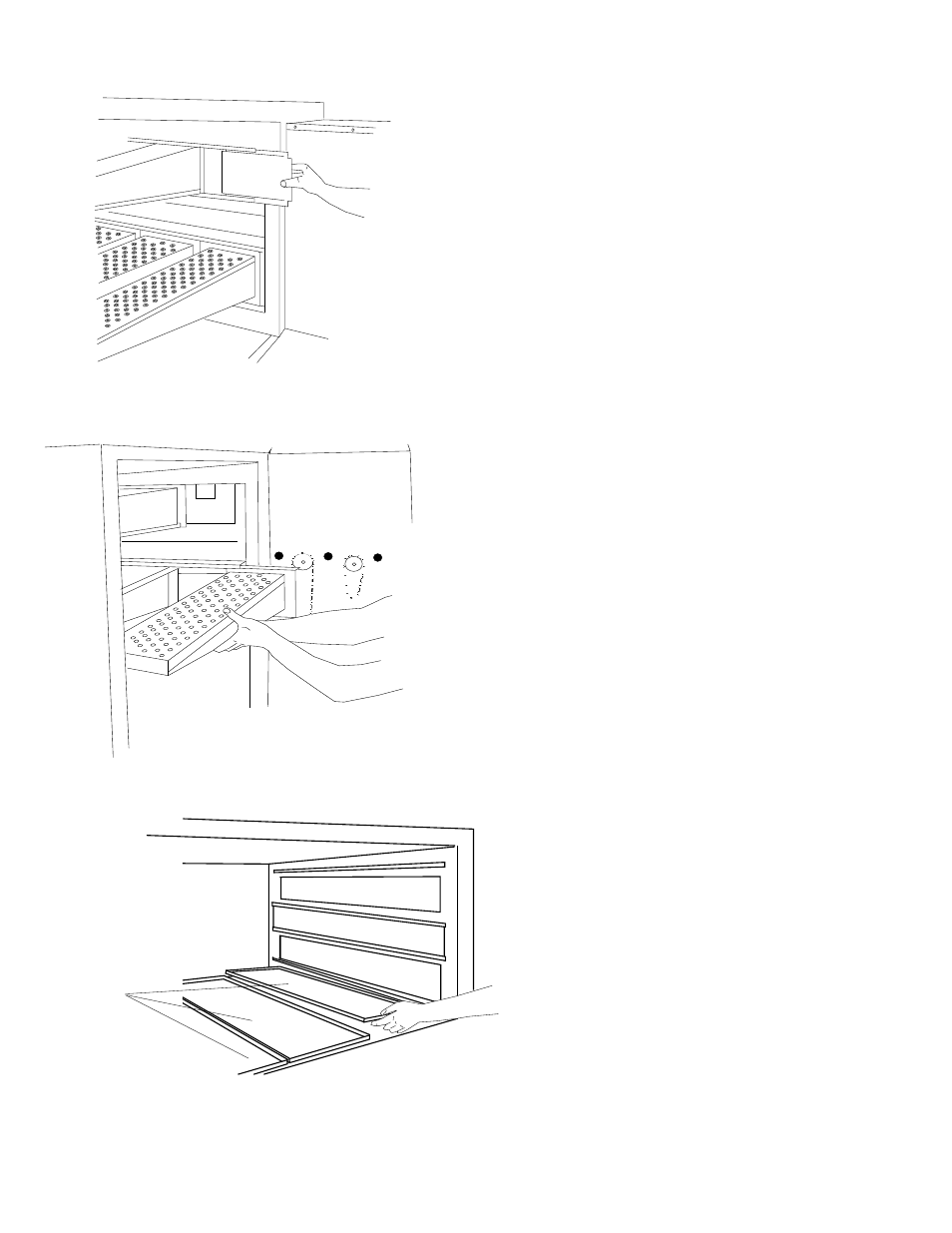

Figure 4-7.
Figure 4-8.
Figure 4-9.
B. Oven interior disassembly.
1. Slide blank plates straight out. There is a blank plate
located at each end of the row of top fingers.
2. Remove air fingers. There are four bottom air fingers with
6 rows of holes and 2 top air fingers with 3 rows of holes.
You can remove top and bottom fingers and blank plates from
each or either end.
3.Remove the air fingers by pulling the fingers
at the back side and pulling straight out.
The finger assemblies should not be disas-
sembled at this time.
3 Drip
Pans
4. Remove the 3 drip pans from the bottom of
the oven. Refer to Figure 4-9
