15
SECTION 2
INSTALLATION

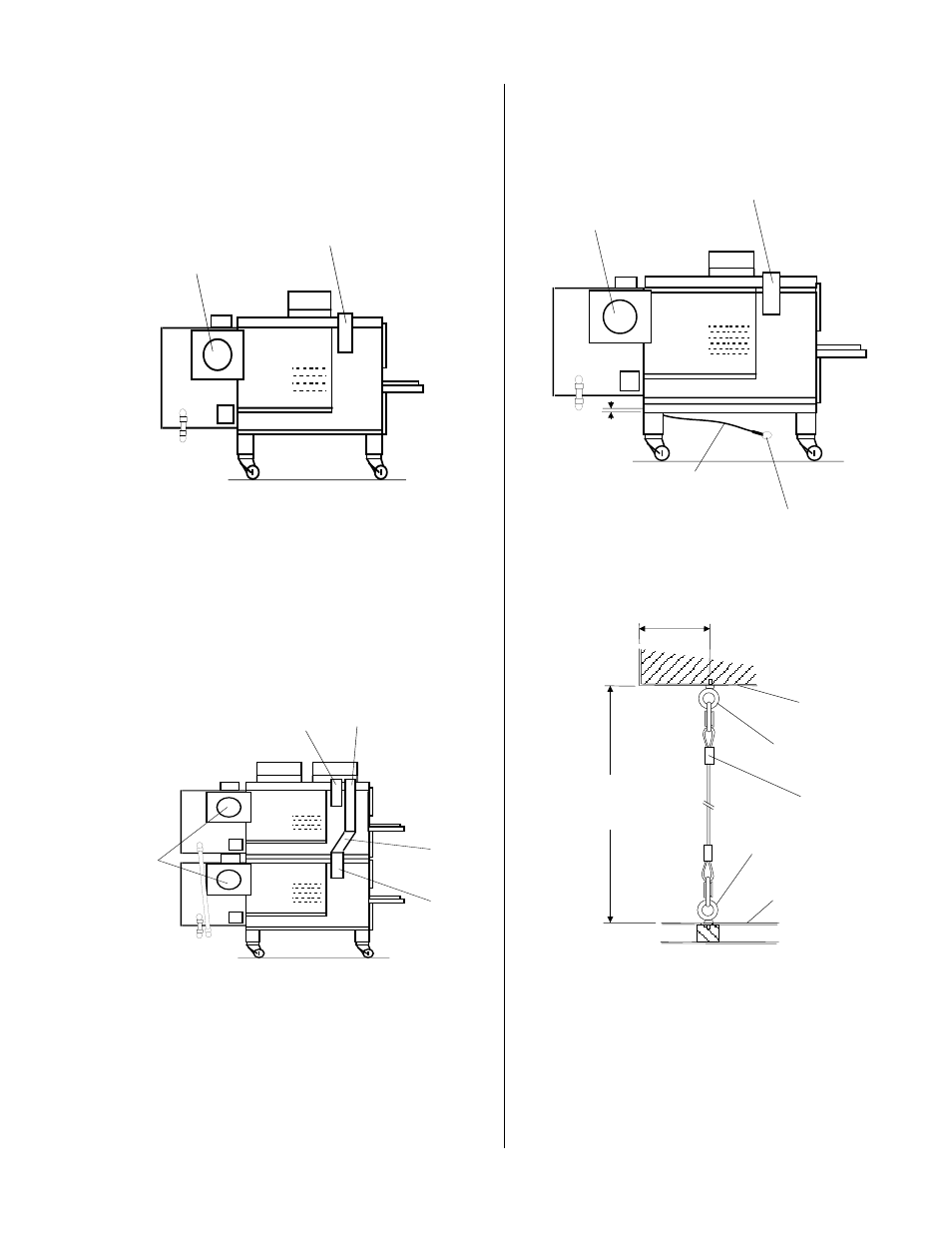

IV. RESTRAINT CABLE INSTALLATION
Install the restraint cable assembly on the oven as
shown in Figure 2-7.
Figure 2-7. Restraint Cable Assembly Installation
Figure 2-6. Double Oven Flue Installation
Rear View
Rear
View
III. FLUE VENT INSTALLATION
A. Install the flue vent: (Gas oven only)
NOTE: On a single oven the flue is factory mounted.
Figure 2-5. Single Oven Flue Installation
B. On a double oven install the flue extension and
flue offset by sliding it down over the lower flue. Then
attach both flues with the screws provided.
Rear
View
Flue
Fan
Flue
Extension Upper Oven
Flue
Flue
Offset
Lower
Oven Flue
Fan
Fan
Flue
3/4"
(19mm)
Restraint
Cable
Assembly
To Eyebolt
On Wall
Rear Surface
of Oven
3-5/16"
(84mm)
3/4" (19mm) Eyebolt
in Base Pad
Restraint Cable
Assembly
3/4" (19mm) Eyebolt
Wall of Structure
49-3/4"
(1264mm)
