E
Modifying Static Routes E-3
Verify Static Routes
2. Click the Static Routes tab.

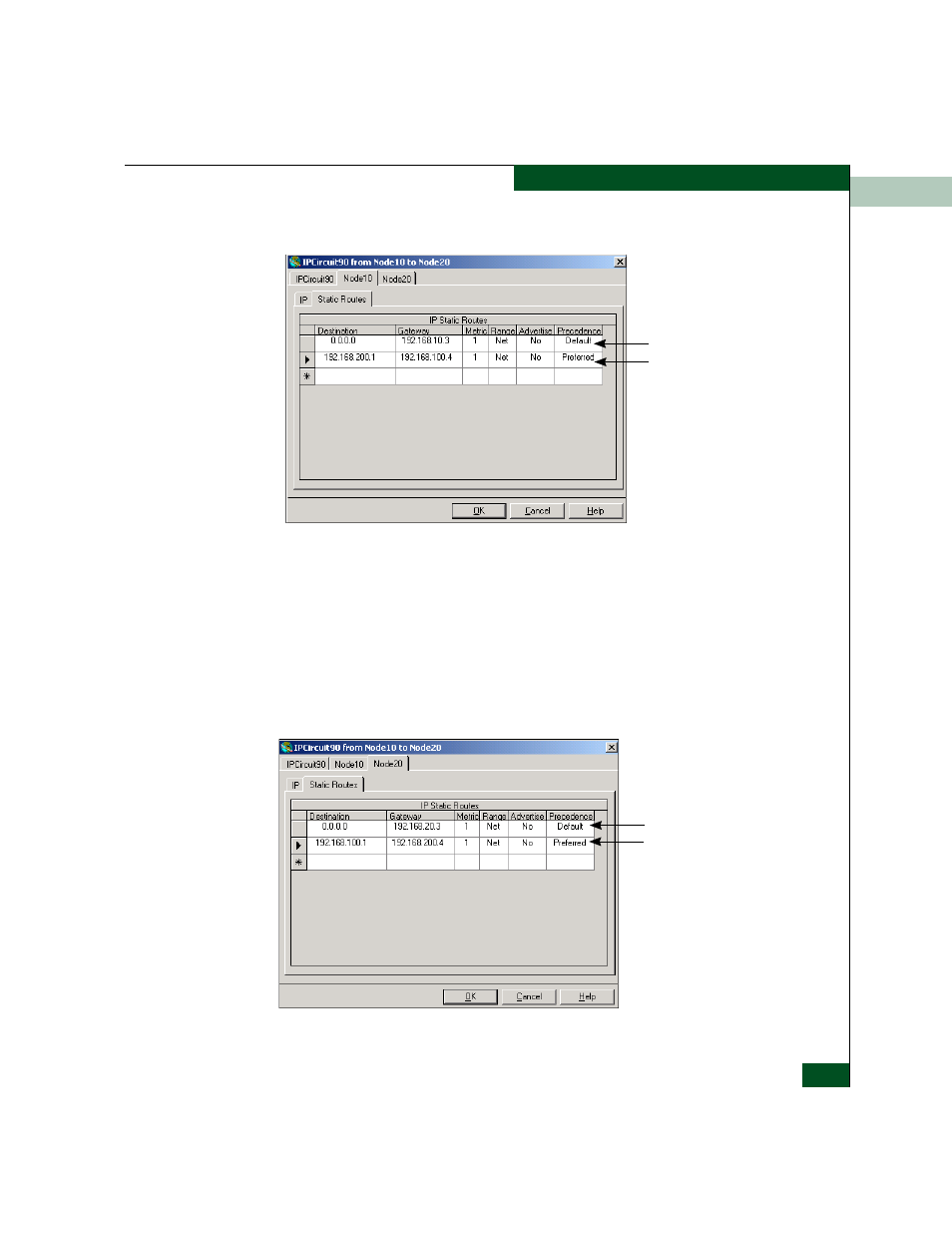

This screen shows a defined default gateway and a host specific
static route for Node10. During the configuration process, the
default gateway fields are automatically updated when the
Ethernet Maintenance interface is configured via the “Initial
Config
” step. The host specific static route fields are updated
when the IP circuit is configured.
3. Click the Node20 tab.
The IP/Static Routes tabs are displayed on the Node20 tab.
4. Click the Static Routes tab.
Default Gateway
Host Specific Static Route
Default Gateway
Host Specific Static Route
