Chapter 4: Site Selection and Deployment Guidelines

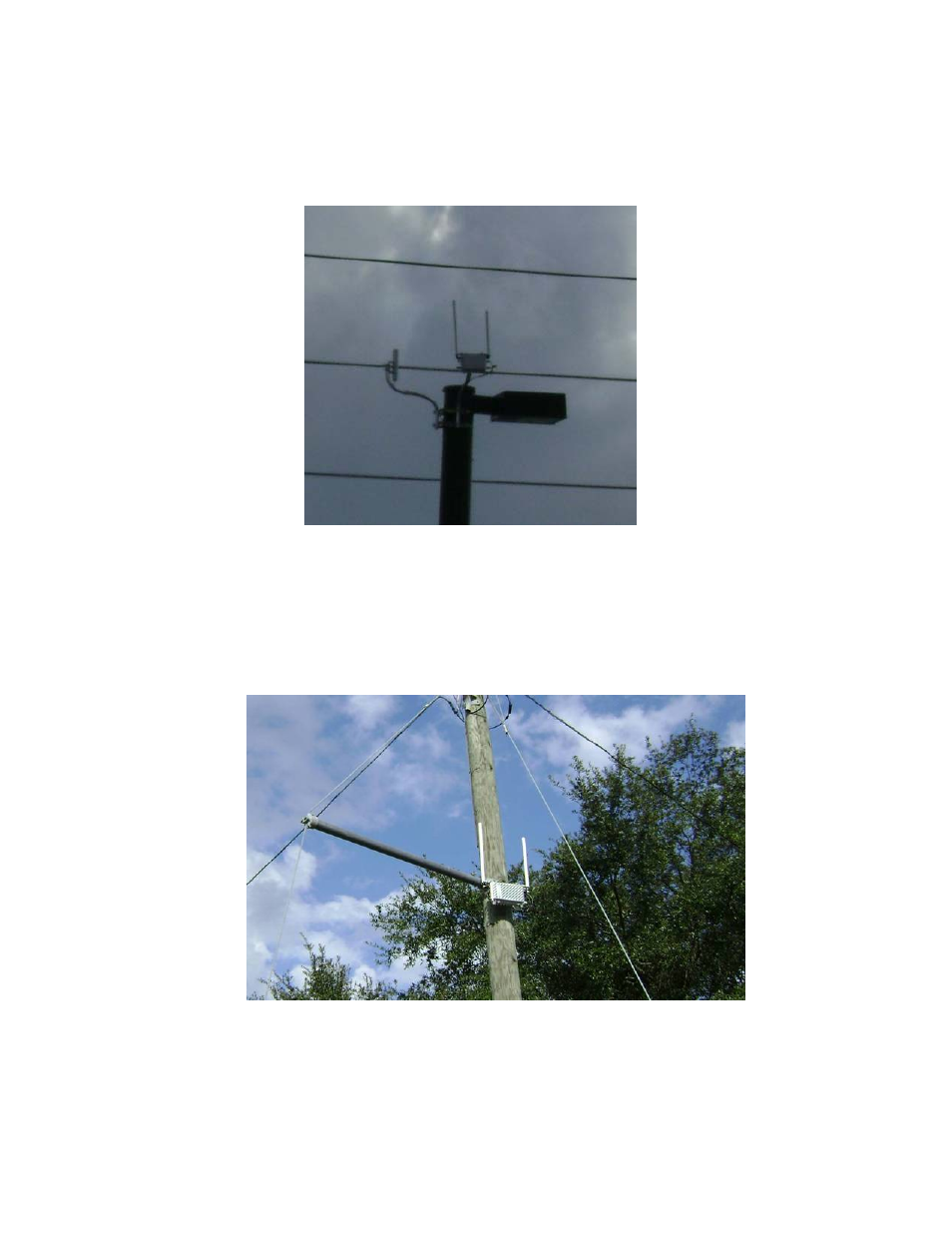

Figure 4-30

Poor Install Example 2

In this example we see the Canopy backhaul radio with its antenna pointing towards the
MOTOMESH Duo device. This results in strong interference.

Figure 4-31

Poor Install Example 3

In this example we see the MOTOMESH Duo device mounted with its antenna next to a
steel pole. This results in antenna pattern distortion.

4-20
