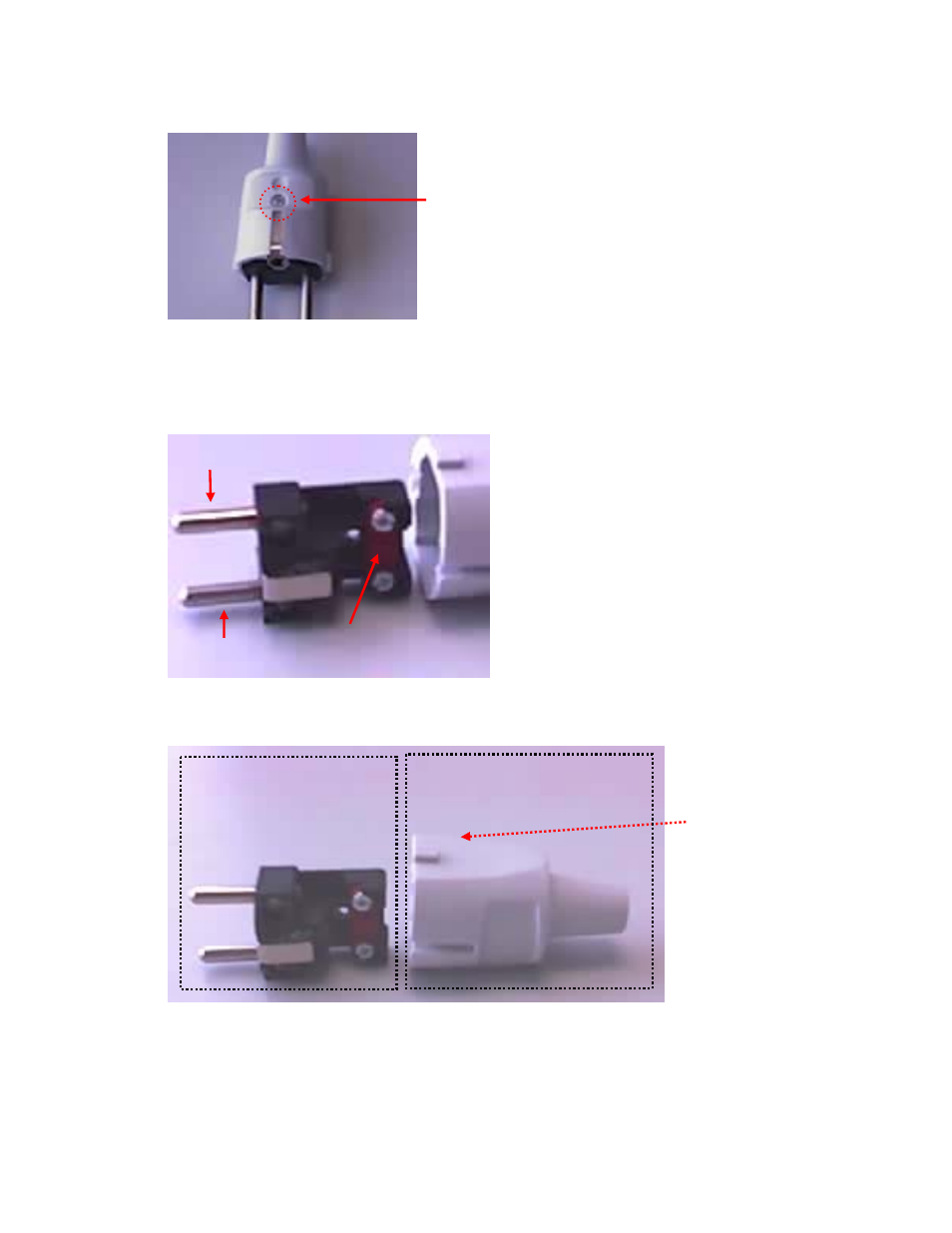

Figure 9-11 Top View of European Power Connector Showing Access Screw
Access Screw
3. After pulling out the Plug Contents, place the plug on its side. The Strain Relief Bar section of the
plug should be facing you, as shown in the graphics below.
Figure 9-12 Side View of Plug Showing Detail of the Stress Relief Bar
Figure 9-13 Side View of Plug Contents and Plug Shell
NEUTRAL
Strain Relief Bar
LINE
Plug Shell Plug Contents
Access Screw
(Not visible in this
graphic, it is on the
opposite side of
the plug.)
