Chapter 4: Site Selection and Deployment Guidelines

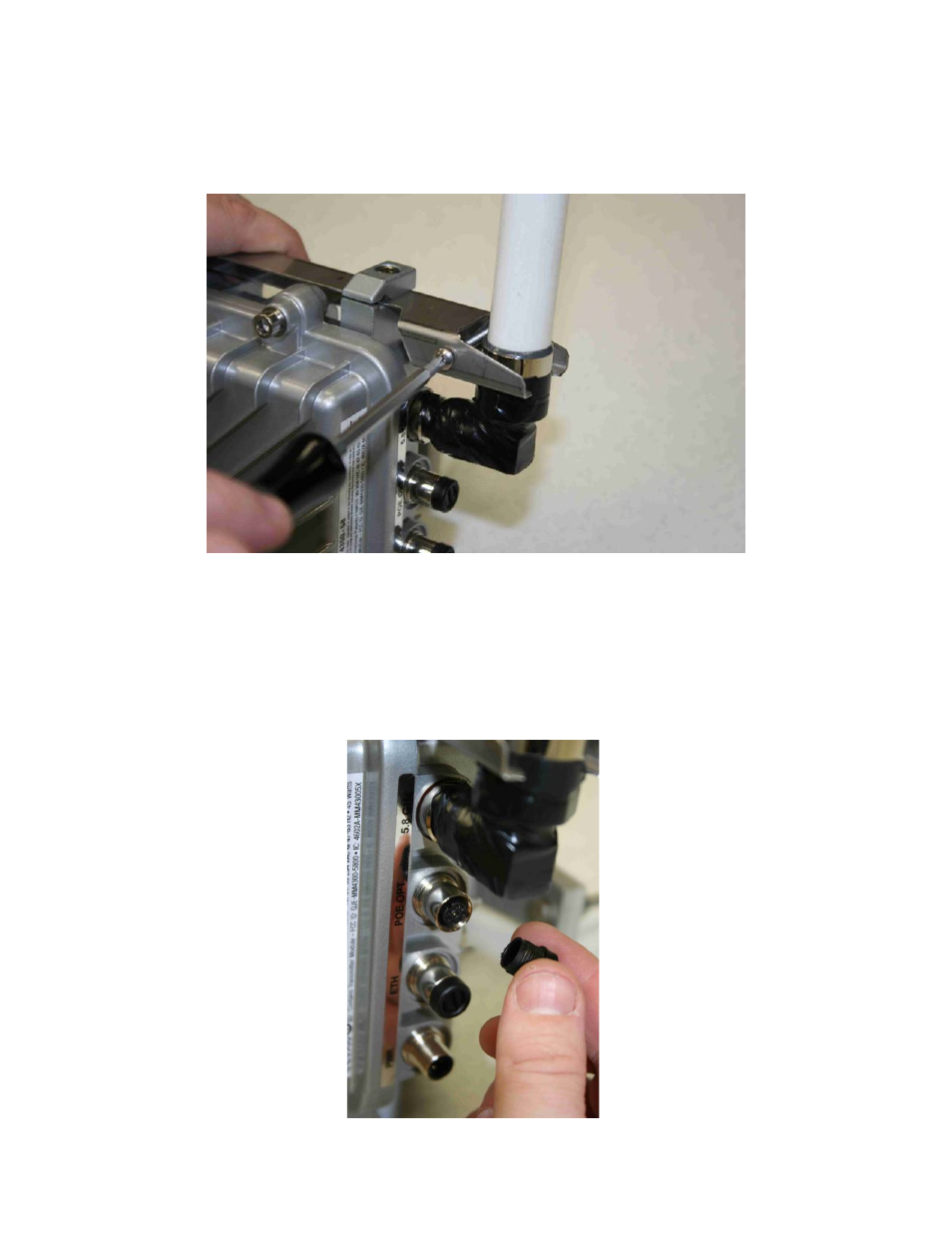

Figure 4-18
Tighten the bracket screws
If your MOTOMESH Duo device is going to be used as an IAP remove the protective cap on the POE
OPT Ethernet port. The POE OPT port is configured by default to be used as the backhaul port. Note
that this port is NOT powered unless a personality plug is attached to the select port. Please see Chapter
3 for more information. Note that the Ethernet cable and port are keyed.
Figure 4-19
Remove the protective cap
4-11
