Figure 4-24, Mounted motomesh duo -14 – Motorola 2.1 User Manual
Page 73
Chapter 4: Site Selection and Deployment Guidelines
The majority of your MOTOMESH Duo devices will only have a power connection (unless the device is an
IAP). If the MWR is going to be used to power a PoE capable device (such as an IP camera) then add
the white personality plug to the select port (standards based 802.3af PoE) and connect the Ethernet
cable to the POE OPT port.

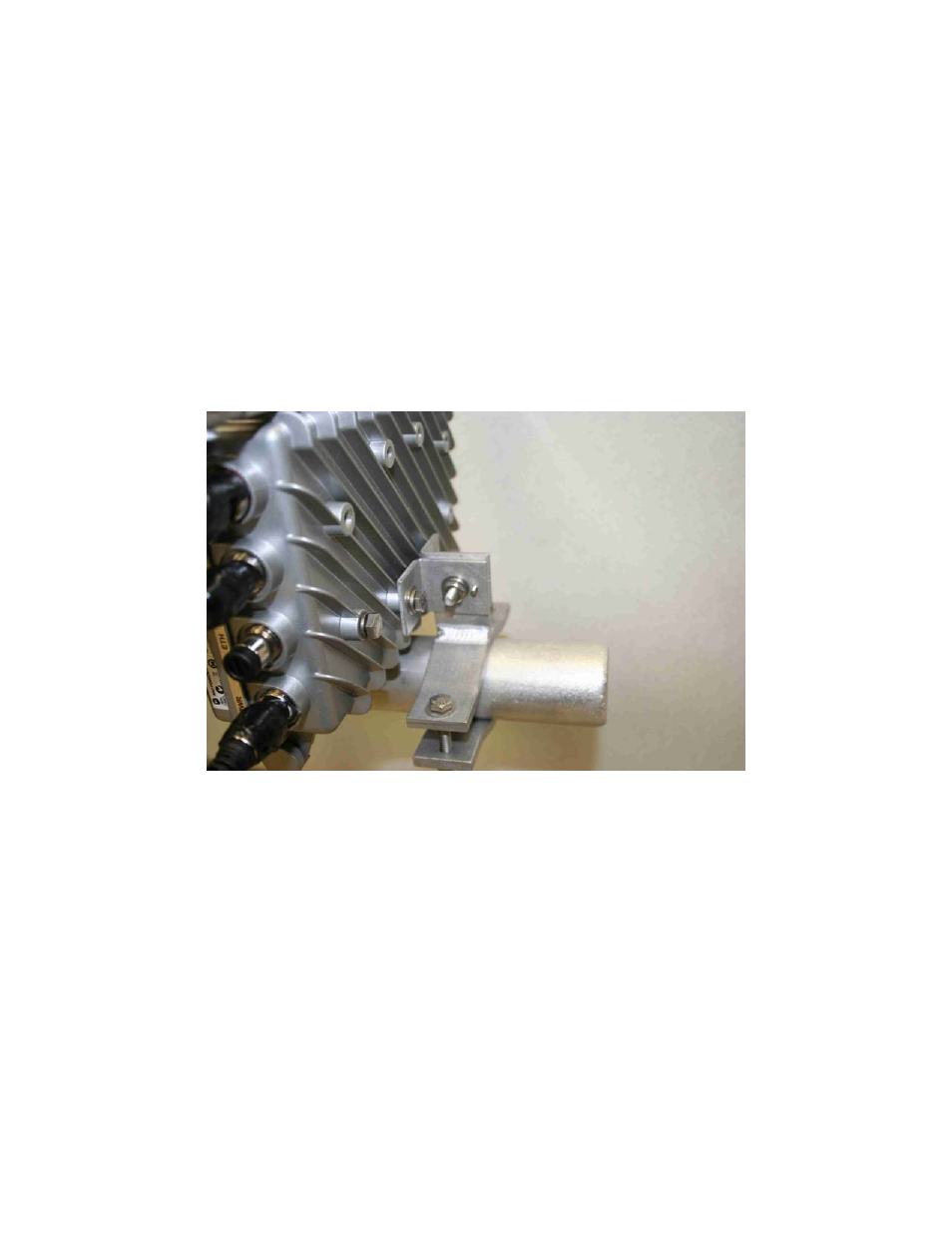

Figure 4-24 shows a MOTOMESH Duo mounted on a horizontal pole. The mounting bracket is tightened
using the 7/16” wrench.
Figure 4-24
Mounted MOTOMESH Duo
4-14
