Chapter 3: MOTOMESH Duo Hardware

Power Consumption

The power consumption of a MOTOMESH Duo device is dependent on the radio configuration (single vs.
dual radio operation) and whether or not PoE is being used.

• 1 radio no PoE = 7.5W

• 1 radio with PoE Canopy = 15W

• 1 radio with PoE Standard = 22.5 W

• 2 radio no PoE = 15 W

• 2 radio with Canopy PoE = 22.5 W

• 2 radio with Standard PoE = 30 W

Ethernet Adapter Cable

To connect an Ethernet cable to a MOTOMESH Duo device the 1ft Ethernet cable is required. This cable
provides a standard RJ-45 port.

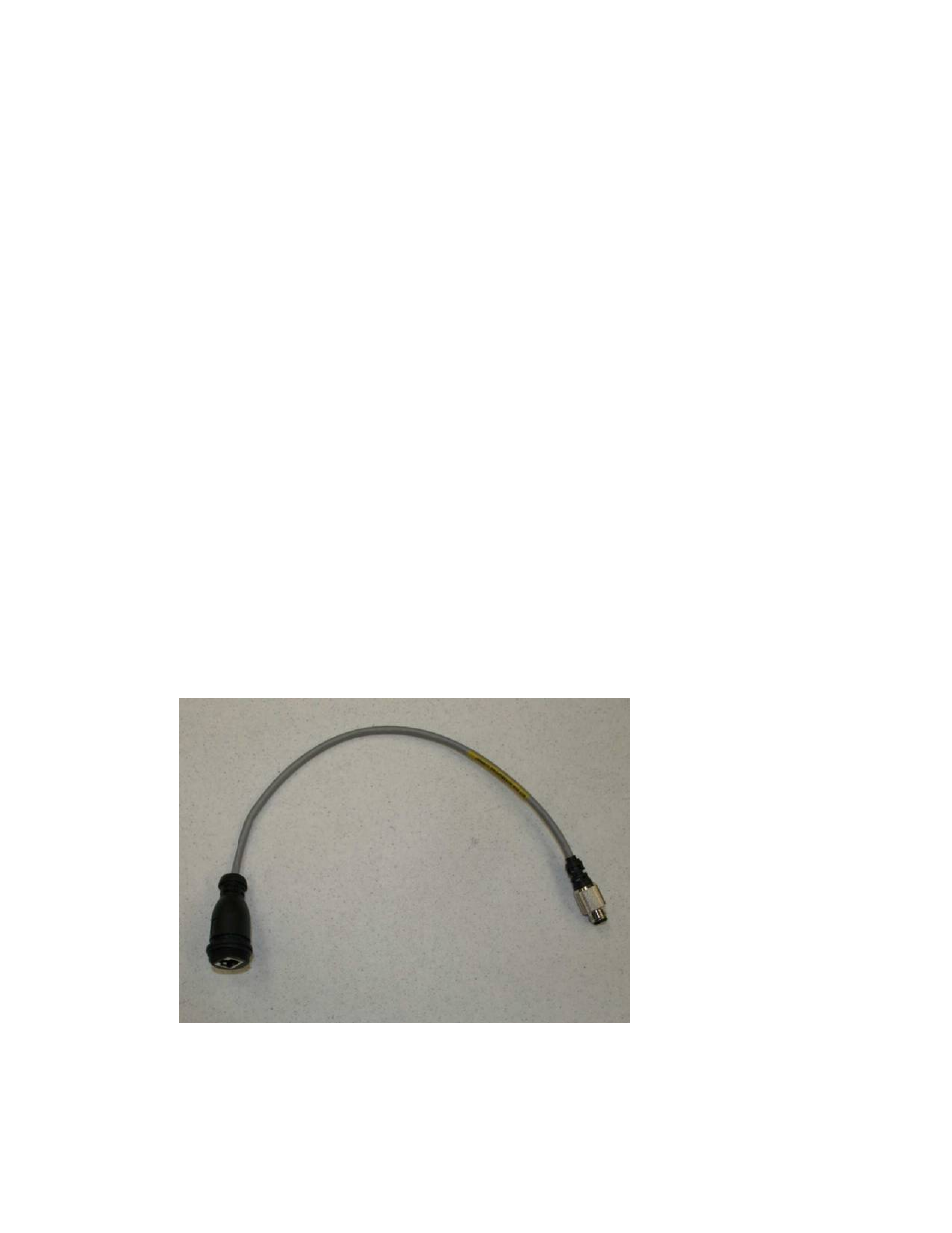

Figure 3-8

1ft Ethernet adapter cable (3063338B01)

3-9
