Chapter 3: MOTOMESH Duo Hardware
Antenna
Optional Antennas
The antennas listed below are recommended for use.
Table 3-1 Approved MOTOMESH Duo Antennas
Motorola Part No. Antenna Type
8571327H01 2.4 GHZ OMNI ANTENNA 8 DBI
RAN4054A 2.4 GHZ DOWNTILT ANTENNA 8DBI
8563328B02 2.4GHZ LOW POWER OMNI ANTENNA 6DBI
8563328B03 2.4GHZ LOW POWER OMNI ANTENNA 4DBI
8563339B01 5.8GHZ LOW POWER OMNI ANTENNA 6DBI
8571328H01 5.8 GHZ OMNI ANTENNA 10 DBI
RAN4019A 4.9GHZ OMNI ANTENNA 11DBI
RAN4044A 5.4GHZ OMNI ANTENNA 10DBI
Antenna Support Brackets
Currently there are two optional brackets. See the list in the table below.
Table 3-2 MOTOMESH Duo Antenna Brackets
Motorola Part No. Antenna Bracket
0763325A01 ANTENNA SUPPORT BRACKET
0163303A10 CANOPY BRACKET ASSEMBLY
An optional support bracket, Motorola Part Number 0763325A01) can be ordered to stabilize
the antennas when a network device is mounted horizontally.

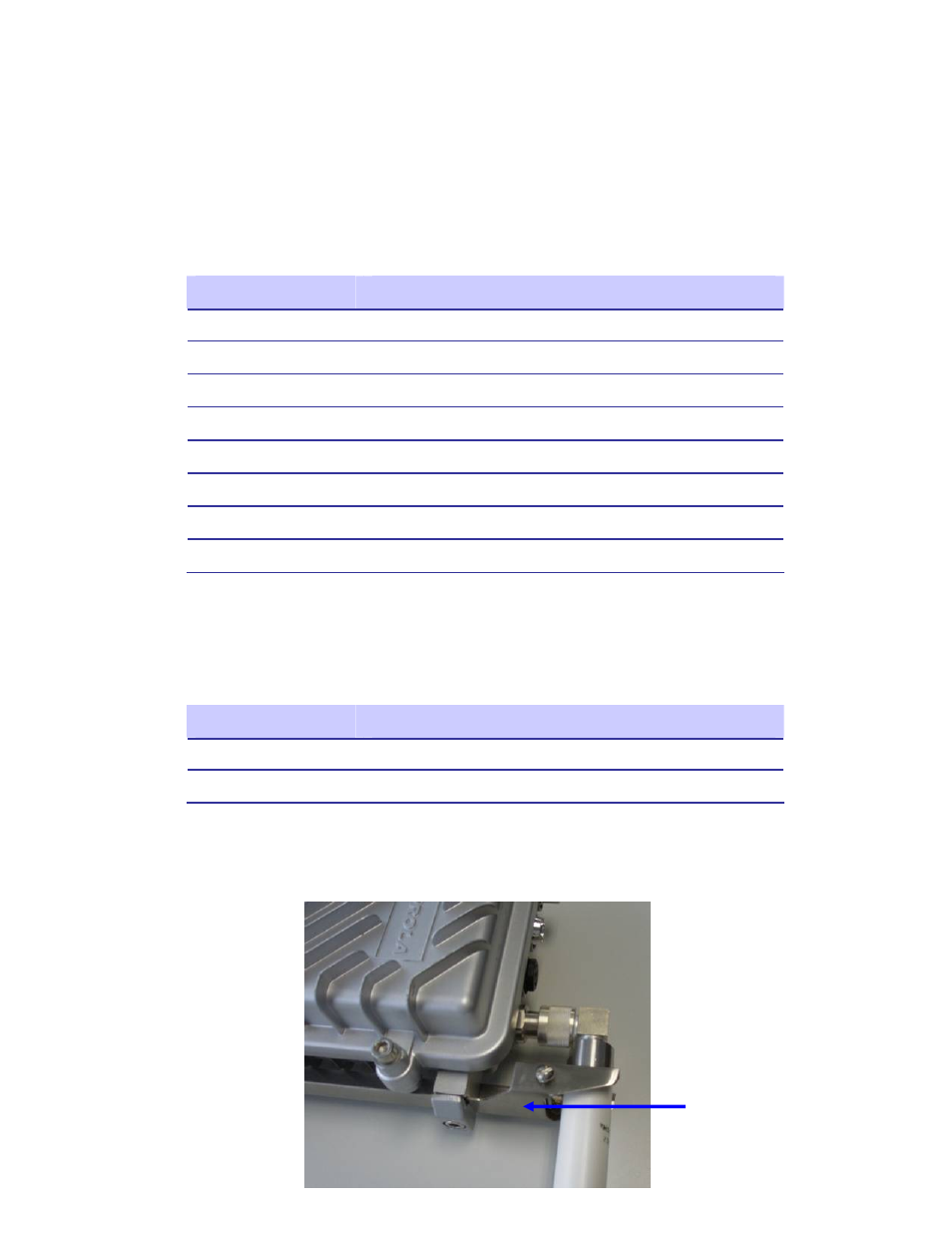

Figure 3-9 Optional Antenna Support Bracket (Part # 0763325A01)
3-10
Antenna Bracket
