Chapter 3: MOTOMESH Duo Hardware
BandPass Filter
The BandPass filter should be used when using a MOTOMESH DUO device together with a
Motorola Canopy backhaul radio while operating in the 5.2, 5.4, or 5.8GHz range.
The specific 5.2, 5.4, or 5.8 BandPass filter attaches to the applicable 4.9, 5.4, and 5.8
antenna socket, positioned between the unit and the antenna.

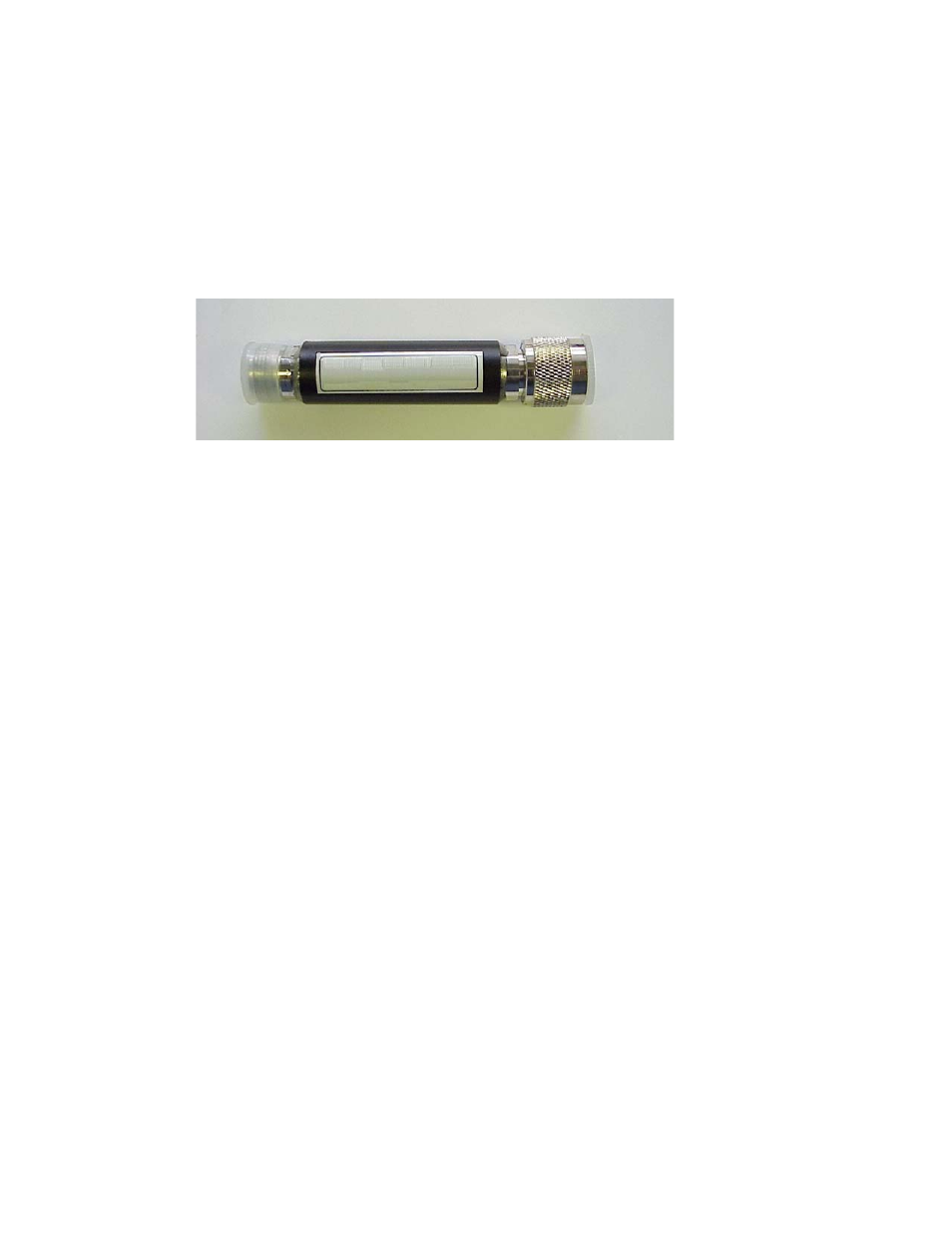

Figure 3-10
BandPass Filter (Part # 9163340B01)
3-11
