Chapter 7: Adding or Replacing Components
www.gateway.com
4
If you are installing two memory modules into one dual-channel
(two-slot) bank (RIMM BANK 0), install two identical RIMMs in
RIMM BANK 0 and two C-RIMMS in RIMM BANK 1 on the system board.
5
If you are installing four memory modules into two dual-channel
(two-slot) banks (RIMM BANK 0 and RIMM BANK 1), install two identical
RIMMs in RIMM BANK 0 and two identical RIMMs in RIMM BANK 1 on the
system board.
6
Make sure that you align the notches on the RIMM and C-RIMM with the
notches on the memory module bank and press firmly into the bank.
7
Make sure that the tabs on the sides of the RIMM and C-RIMM secure the
memory module in the slot. When the module is secure, you will hear a
click.
8
Close the case by following the instructions in “Closing the case” on
page 95.

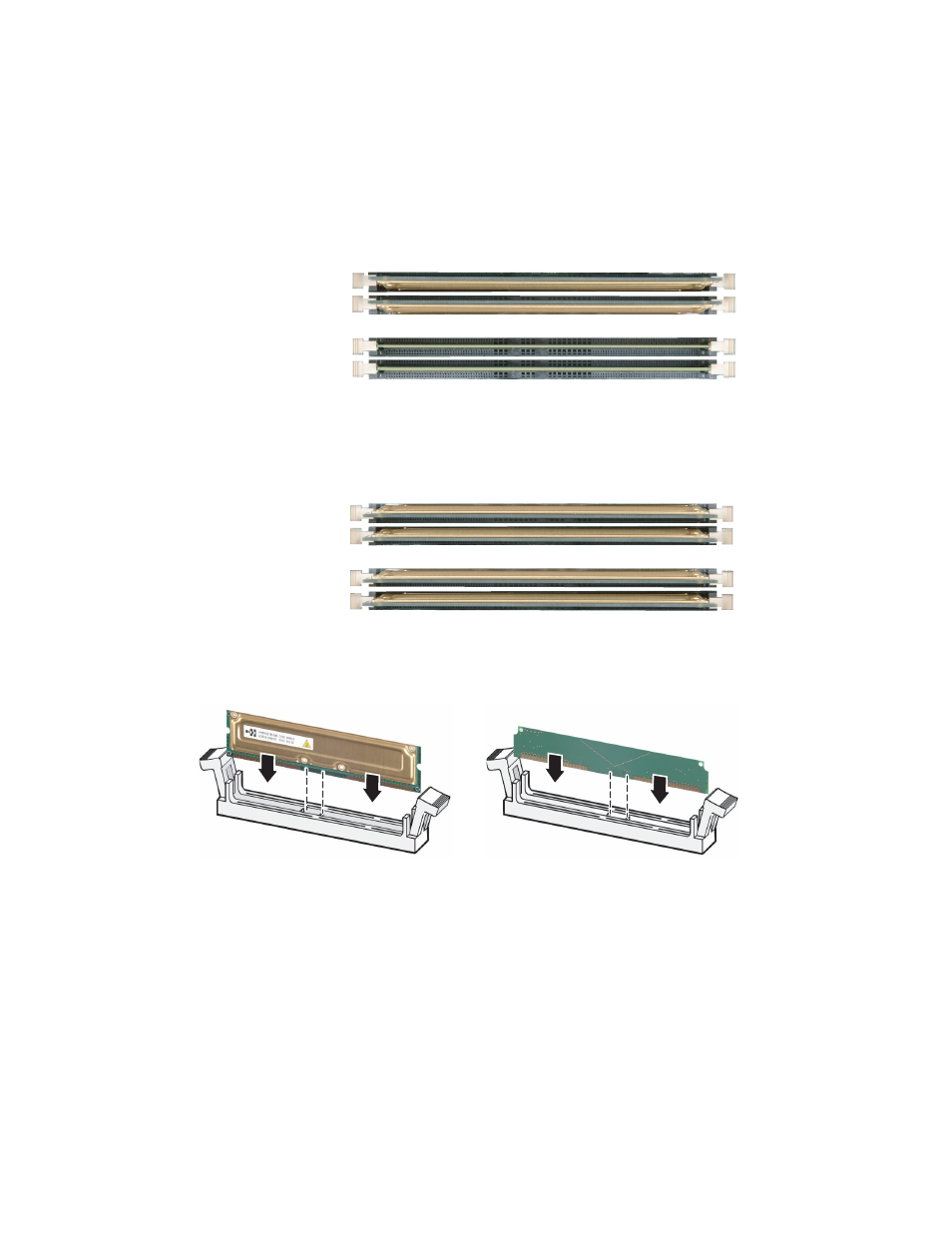

RIMMs installed in
RIMM BANK O
C-RIMMs installed in
RIMM BANK 1
RIMMs installed in
RIMM BANK O
RIMMs installed in
RIMM BANK 1
