-4- G0486/G0487 Wide Belt Sander

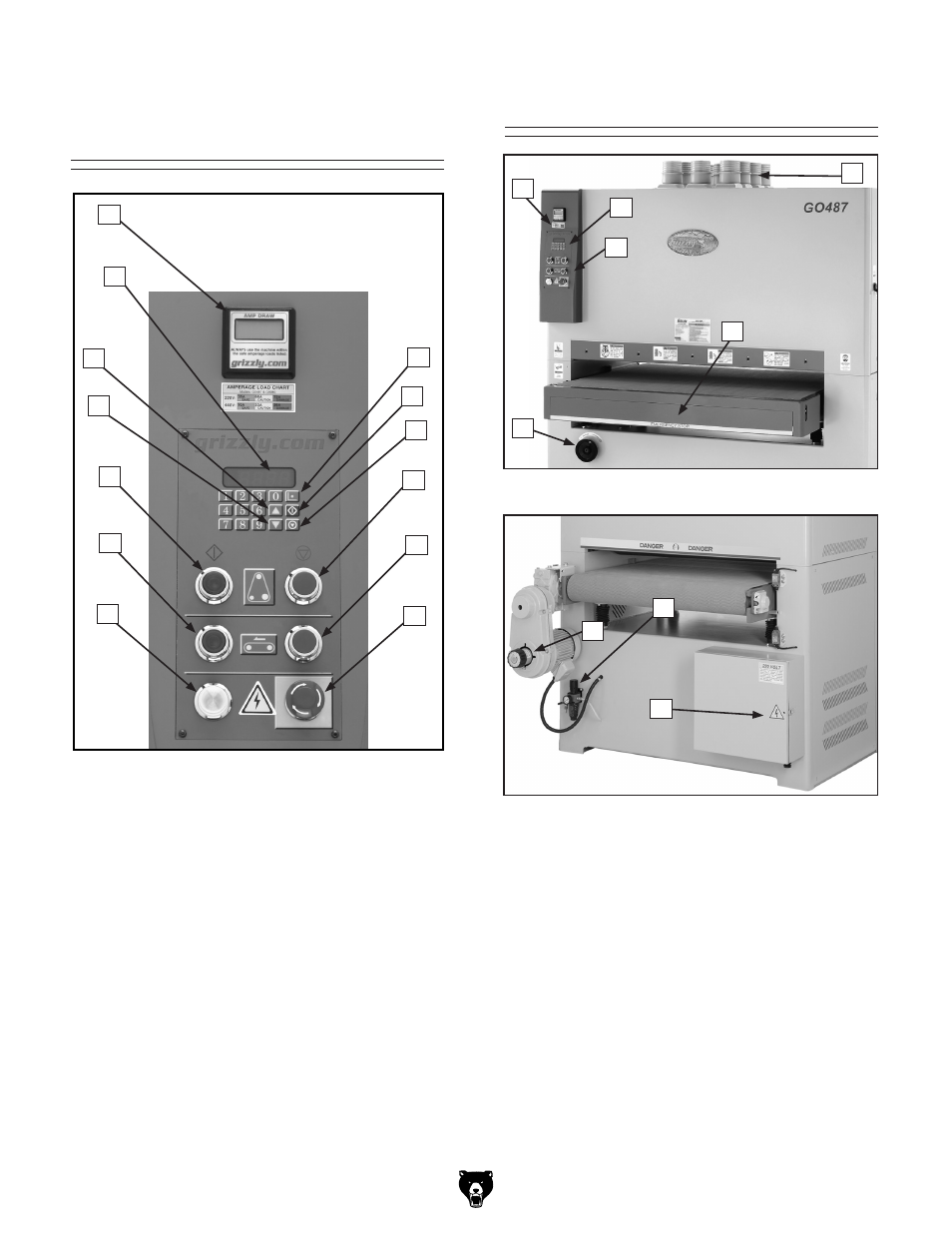

Control Panel
Features
External Features
A. Digital Amp Draw Meter
B. Table-Height Digital Readout
C. Table Up Key
D. Table Down Key
E. Sanding Belt Start Button
F. Conveyor Belt Start Button
G. Power Light
H. Table Set (Enter) Key
I. Table Start Key
J. Table Stop Key
K. Sanding Belt Stop Button
L. Feed Belt Stop Button
M. Emergency Stop Button
Figure 2. Front View, Model G0487.
Figure 1. Control Panel, Model G0487.
A. Control Panel
B. Table Height Handwheel
C. Emergency Stop Push-Panel
D. 4" Dust Collection Ports
E. Amperage Load Chart
F. Digital Table Height Key Pad
G. Conveyor Speed Control
H. Air Pressure Regulator
I. Main Wiring Box
Figure 3. Rear View Model G0487.
A
B
C
D
E
F
G
H
I
J
K
L
M
B
C
A
F
E
D
G
H
I
