G0486/G0487 Wide Belt Sander -11-
The following list outlines the electrical phase and
voltage required to operate the Model G0486/
G0487, as well as the amperage draw of their
motors and circuit requirements.
Note: If you do not have three-phase power avail-
able, you will have to install a phase converter
such as the Griz
zly Phase Converter.
Amperage Draw Specifications:
G0486—220V, Three-Phase ~90 Amp Circuit
25 HP Sanding Motor ............................64 Amps
2 HP Feed Motor .....................................6 Amps
1 ⁄
4
HP Table Motor ................................1.2 Amps
G0486—440V, Three-Phase ~50 Amp Circuit
25 HP Sanding Motor ............................32 Amps
2 HP Feed Motor .....................................3 Amps
1 ⁄
4
HP Table Motor ..................................0.6 Amp
G0487—220V, Three-Phase ~100 Amp Circuit
30 HP Sanding Motor ............................72 Amps
2 HP Feed Motor .....................................6 Amps
1 ⁄
4
HP Table Motor ................................1.2 Amps
G0487—440V, Three-Phase ~50 Amp Circuit
30 HP Sanding Motor ............................36 Amps
2 HP Feed Motor .....................................3 Amps
1 ⁄
4
HP Table Motor ..................................0.6 Amp
Hard wire this machine to a power panel that has
proper overload protection and a locking shut-off
lever ( Figure 6). If you are unsure about electri-
cal wiring, consult a qualified electrician before
attempting any wiring.
220V/440V
Connection
SECTION 2: CIRCUIT
REQUIREMENTS
Do not use an extension cord with 220V/440V
machinery. An extension cord increases the risk
of electrocution and fire. Instead, position your
equipment near the power supply to eliminate the
extension cord requirement.
Extension Cords
Grounding
Electrocution or fire may
result if machinery is incor-
rectly grounded or the
power supply violates local
and state codes. Contact
a qualified electrician for
safe wiring practices!

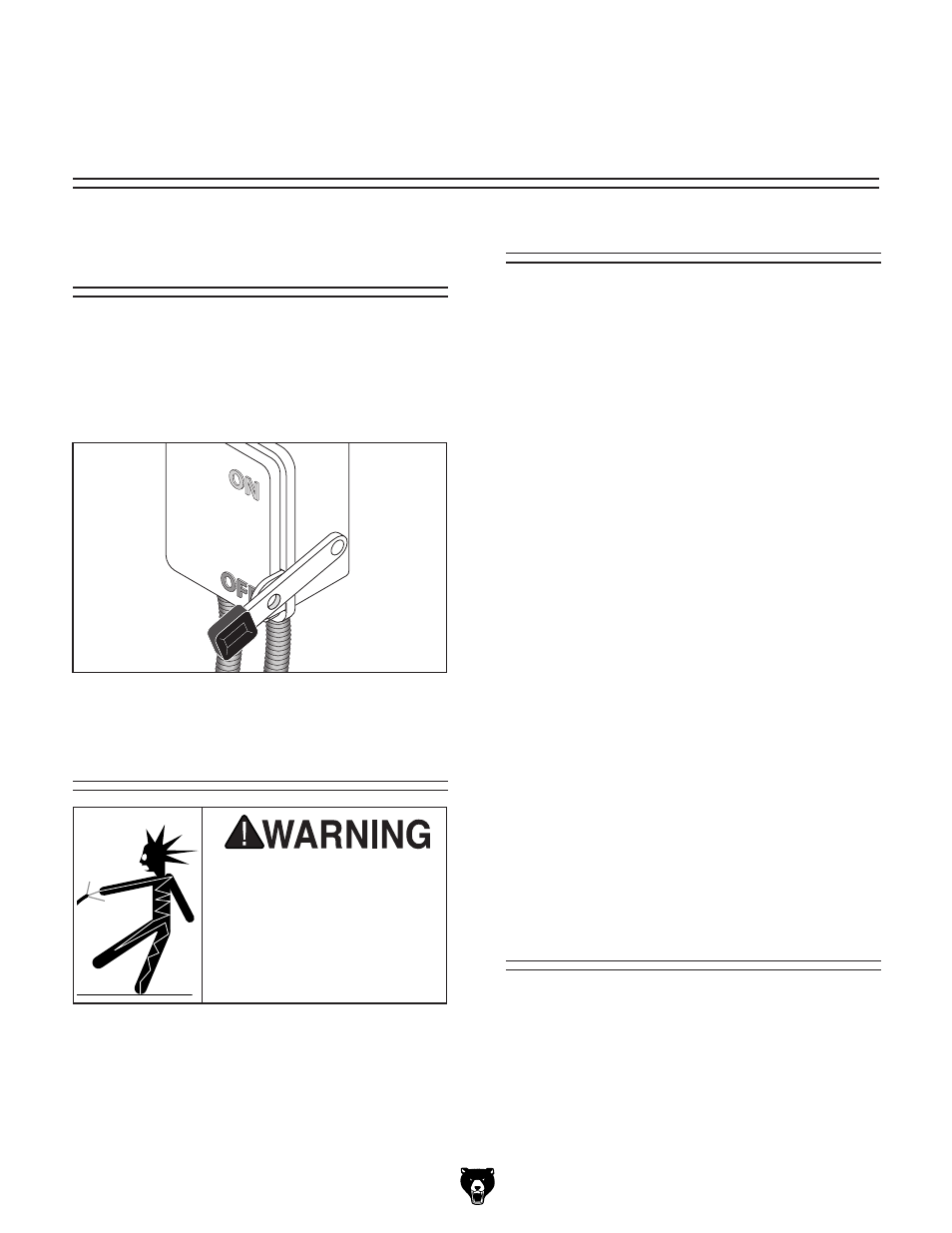

Figure 6. Locking Shut-Off Lever.
Amperage Loads
