Grizzly G0486/G0487 - Manual (Page 15)

G0486/G0487 Wide Belt Sander -13-
Inventory Unpacking
Your wide belt sander was carefully packed when
it left our warehouse. If you discover the machine
is damaged after you have signed for delivery,
please immediately call Customer Service at
(570) 546-9663 for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the con-
dition of your shipment, you should inventory the
contents.

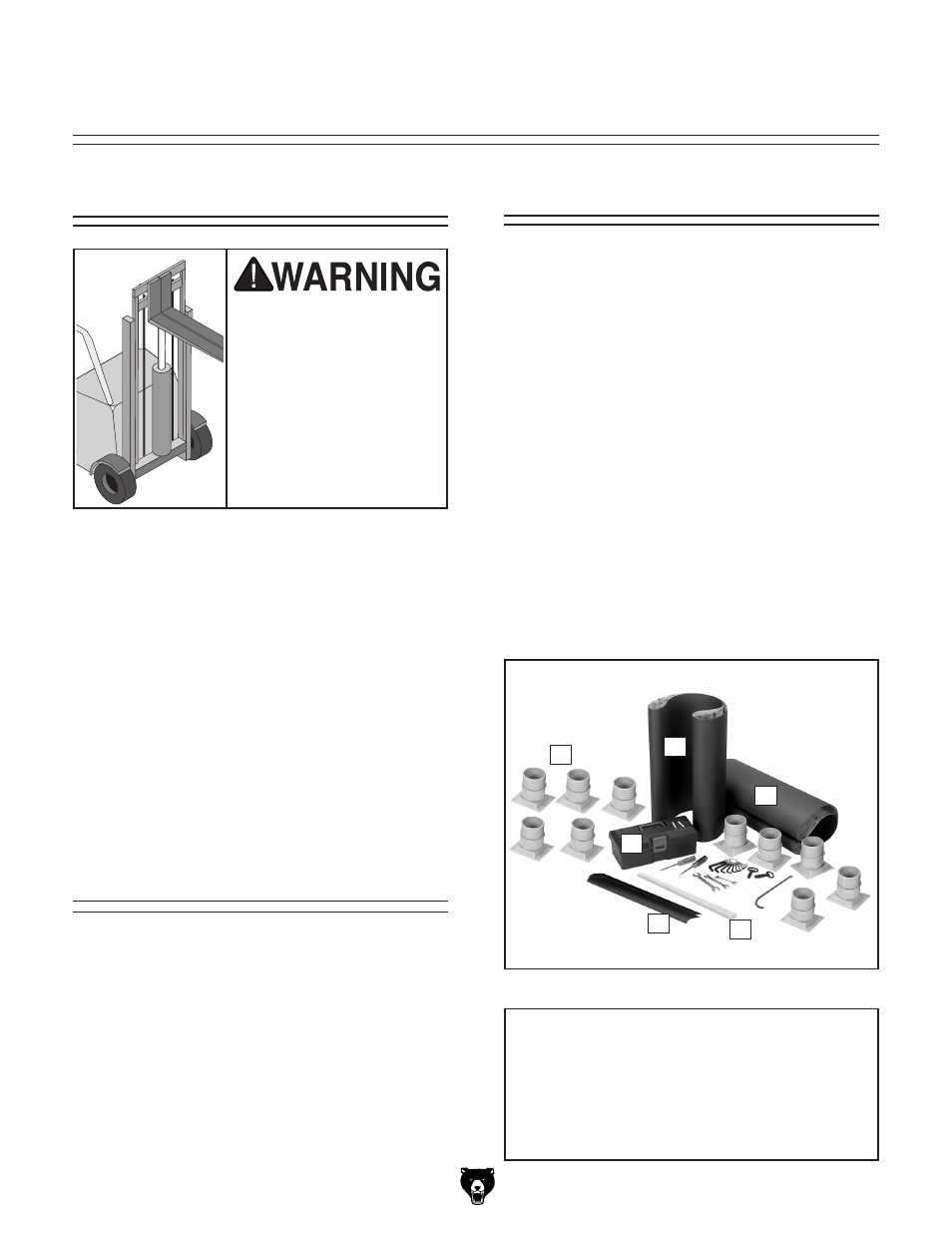

Figure 9. Parts layout.
SECTION 3: SET UP
This sander is a heavy
machine weighing over
4000 lbs (shipping
weight). Personal injury
can occur if the machine
is moved without appro-
priate machinery. Use a
crane or forklift when
moving or lifting the
machine.
NOTICE
A parts diagram and parts list are located
near the end of the manual. Use the diagram
and list to identify missing parts or to sup-
plement the assembly instructions provided
in this manual.
Crate contents, (Figure 9). Qty
A. Sanding Unit (Not Pictured) ....................... 1
B. Dust Ports 4" (G0486, G0487) ................. 10
C. Sanding Belt 100 Grit ................................. 1
D. Sanding Belt 180 Grit ................................. 1
E. Platen Felt* ................................................. 1
F. Platen Graphite Flap* ................................. 1
G. Tool Box ..................................................... 1
• Phillips Head Screwdriver #2 ............... 1
• Standard Screwdriver #2 ..................... 1
• Open-End Wrench 8/10mm ................. 1
• Open-End Wrench 12/14mm ............... 1
• Open-End Wrench 17/19mm .............. 1
• Metric Hex Wrench Set 10 Pcs. .......... 1
• Door Keys ............................................ 2
• Ceramic Limit Switch Posts* ................ 2
• Platen Removal Tool ........................... 1
• Flexible Grease Gun Extension* ......... 1
*Spare parts not needed for set up
The following items are needed to complete the
set up process, but are not included with your
machine:
Description Qty
• Safety Glasses (for each person) .............. 1
• Solvent Cleaner .......................... As Needed
• Dust Collection System .............................. 1
• 4" Dust Hoses (length as needed) ........... 10
• 4" Hose Clamps ....................................... 10
• Air Compressor (12 CFM @75 PSI) .......... 1
Items Needed for
Set Up
B
C
D
E
F
G
