44
Chapter 4: Installing Components
www.gateway.com
7

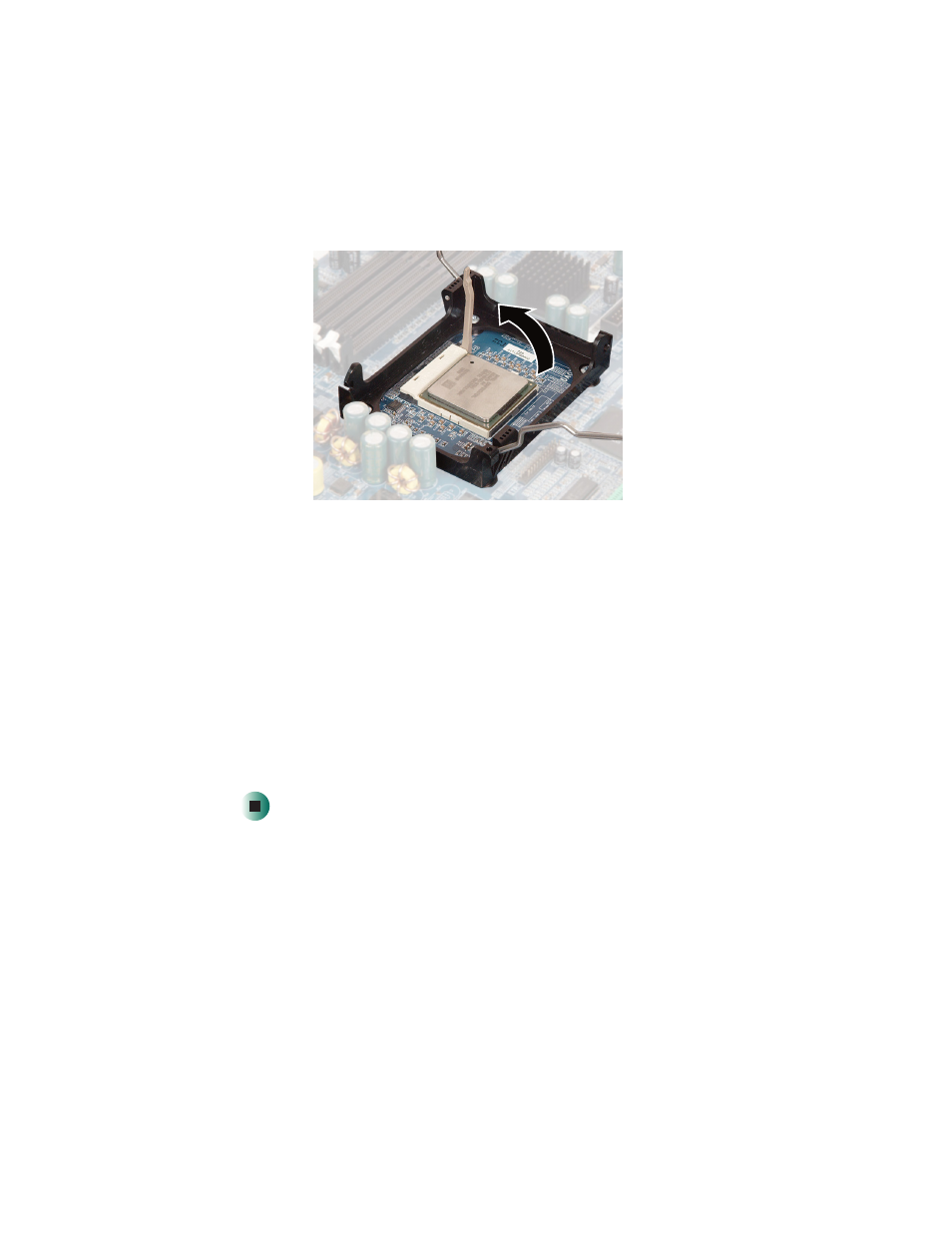

Press down on the processor locking lever, push it slightly away from the
processor, then rotate the lever straight up to release the processor.
8
Remove the old processor.
9
Install the new processor into the processor slot. Make sure that the arrow
on the corner of the processor aligns with Pin 1 on the processor socket
(the socket corner without a pin hole).
10
Press the processor locking lever down until it clicks into place.
11
Apply thermal grease to the top of the processor, if necessary.
12
Place the heat sink on the processor, then press the heat sink locking levers
down until they click into place.
13
Plug the heat sink’s cooling fan into the system board.
14
Follow the instructions in “Closing the server case” on page 28 .
