CHAPTER 10: VLAN
CONFIGURING TAG VLANS WITH ENERVISTA SOFTWARE
MULTILINK ML1600 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL
10–23
.
To activate the VLAN,
Z
Click the Status button in the Configuration >VLAN >Tag-Based >
Settings menu.
Z
Click OK.

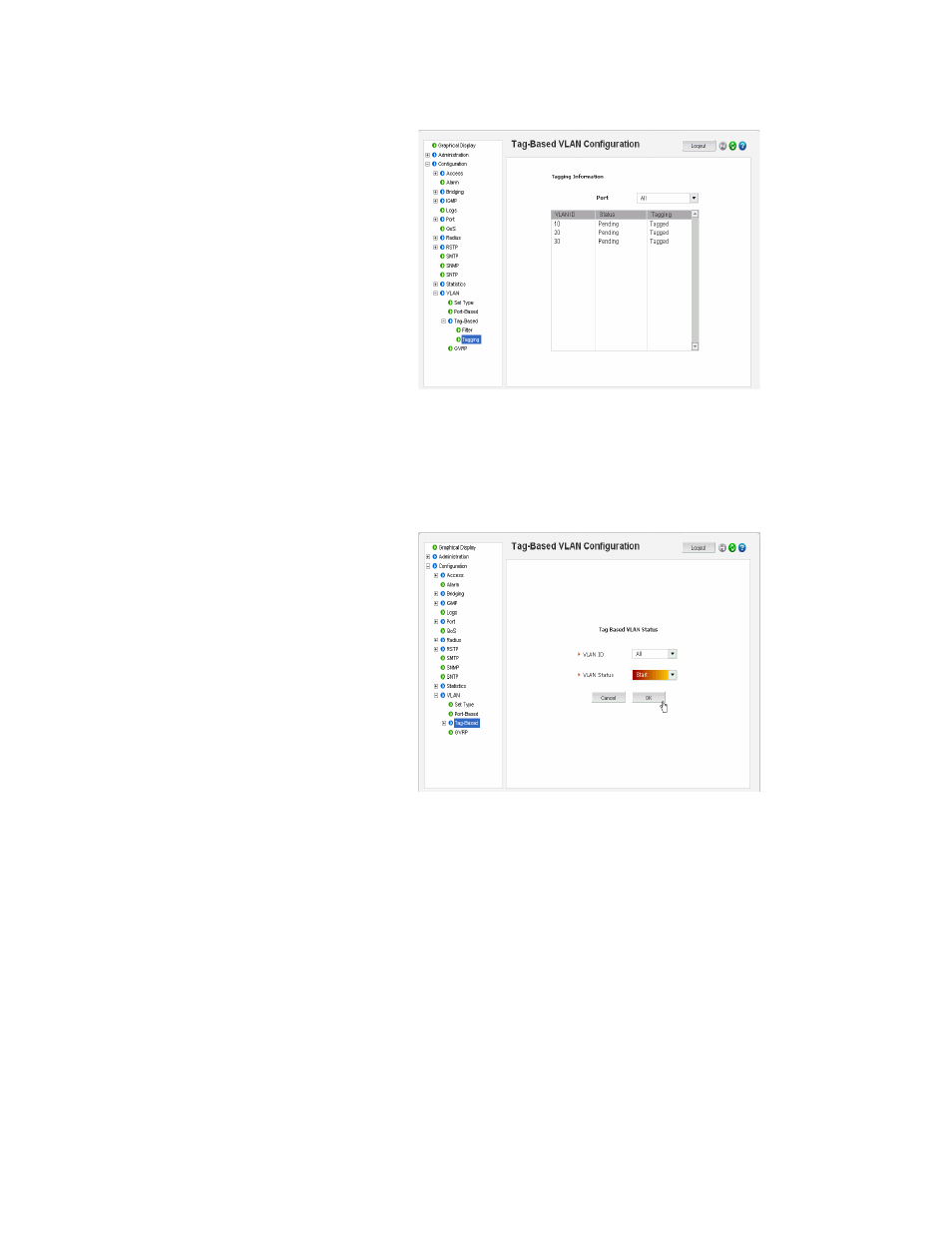

Tagged VLANs can be viewed from the Configuration > VLAN > Tag-Based > Tagging
menu.
To add or delete specific ports from a VLAN,
Z
Click on Join & Leave button from the Configuration > VLAN >
Tag-Based > Settings menu and specify the action.
In the example below, we will take port 11 and assign it to leave VLAN 10. After the action is
completed, note that port 11 will belong to VLAN 1 only
