MULTILINK ML1600 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL
CONFIGURING PORT VLANS WITH ENERVISTA SECURE WEB MANAGEMENT SOFTWARE
CHAPTER 10: VLAN
Z

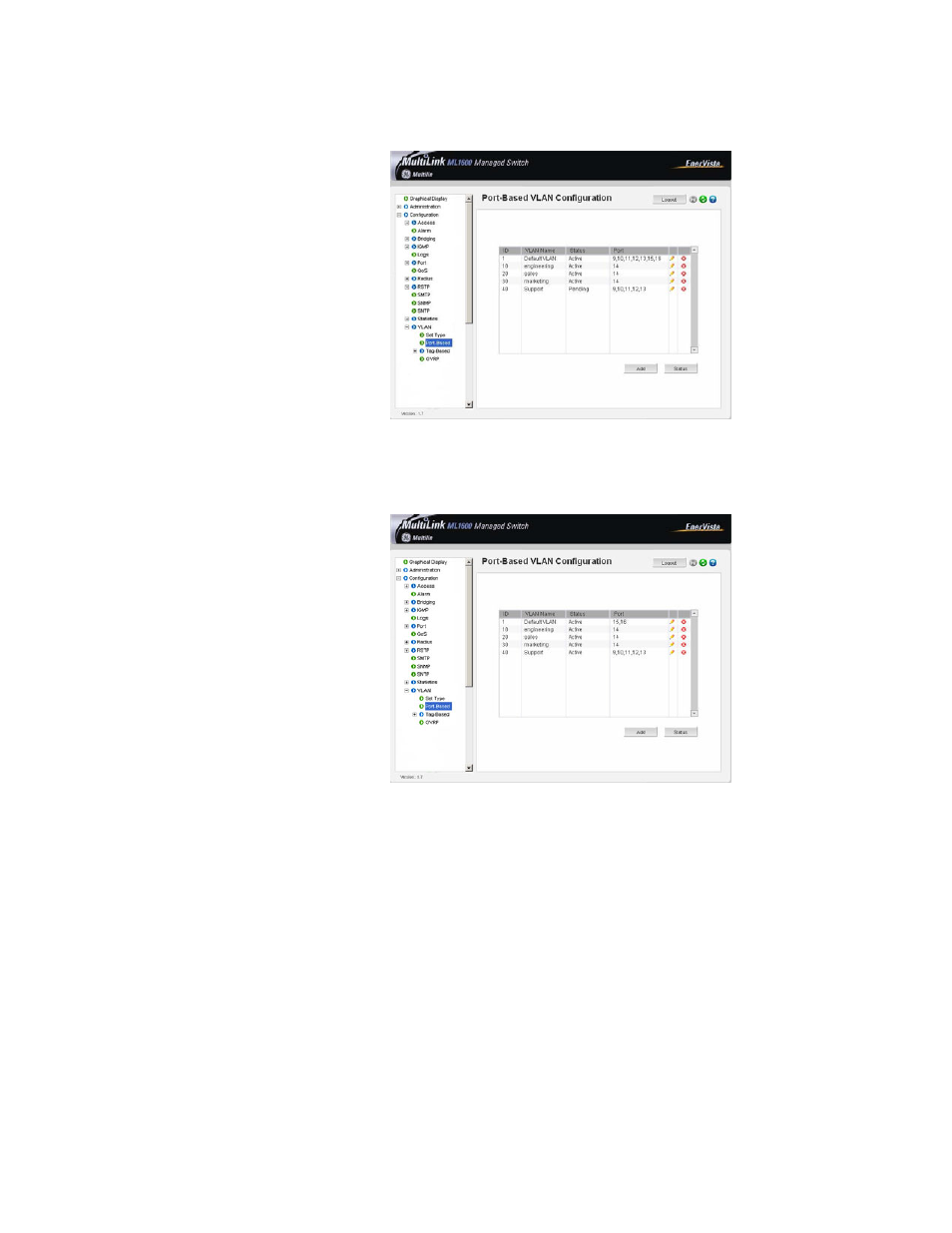

To activate the VLAN, click on the Status button.
A specific VLAN can be activated or all VLANs can be activated (or disabled).
Z
Click OK to activate the VLAN.
After activation, note that ports 9 to 13 belong to the new VLAN. Their membership in the
default VLAN has been eliminated.
Note the VLAN membership of the ports assigned to VLAN 40 now indicates that they are
only members of VLAN 40. The default VLAN membership has been terminated on VLAN
activation. The ports can be added to VLAN 1 by using the edit button on VLAN 1 and
assigning the ports to VLAN 1.
