Installation Conditions
3-10 C141-E145-02EN
3.3.2 Cable connector specifications
Table 3.2 lists the recommended specifications for the cable connectors.
Table 3.2 Cable connector specifications
Name Model Manufacturer
ATA interface and power
supply cable (44-pin type) Cable socket
(44-pin type)
89361-144 FCI
IMPORTANT
For the host interface cable, use a ribbon cable. A twisted cable or
a cable with wires that have become separated from the ribbon may
cause crosstalk between signal lines. This is because the interface
is designed for ribbon cables and not for cables carrying differential
signals.
3.3.3 Device connection

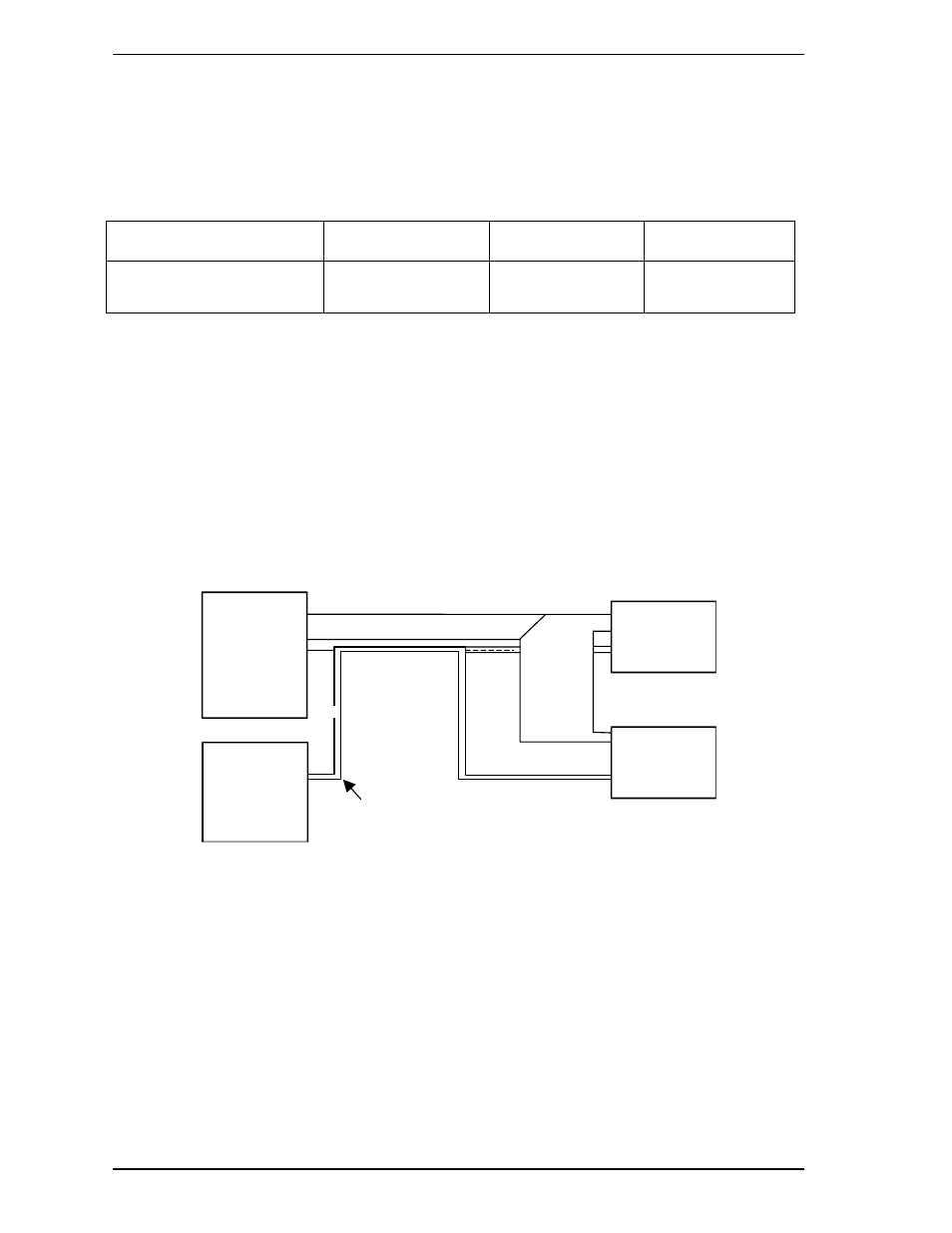

Figure 3.9 shows how to connect the devices.
Host system
DC
Power supply
Disk Drive #0
Disk Drive #1
In
terf
ace
Interface
Power supply cable
Figure 3.9 Cable connections
