5.6.2 Multiword data transfer
Figure 5.10 shows the multiword DMA data transfer timing between the device
and the host system.
Symbol Timing parameter Min. Max. Unit
t0 Cycle time 120 — ns
tD Pulse width of DIOR-/DIOW- 70 — ns
tE Data setup time for DIOR- — 50 ns
tF Data hold time for DIOR- 5 — ns
tG Data setup time for DIOW- 20 — ns
tH Data hold time for DIOW- 10 — ns
tI DMACK setup time for DIOR-/DIOW- 0 — ns
tJ DMACK hold time for DIOR-/DIOW- 5 — ns
tK Continuous time of high level for DIOR-/DIOW- 25 — ns

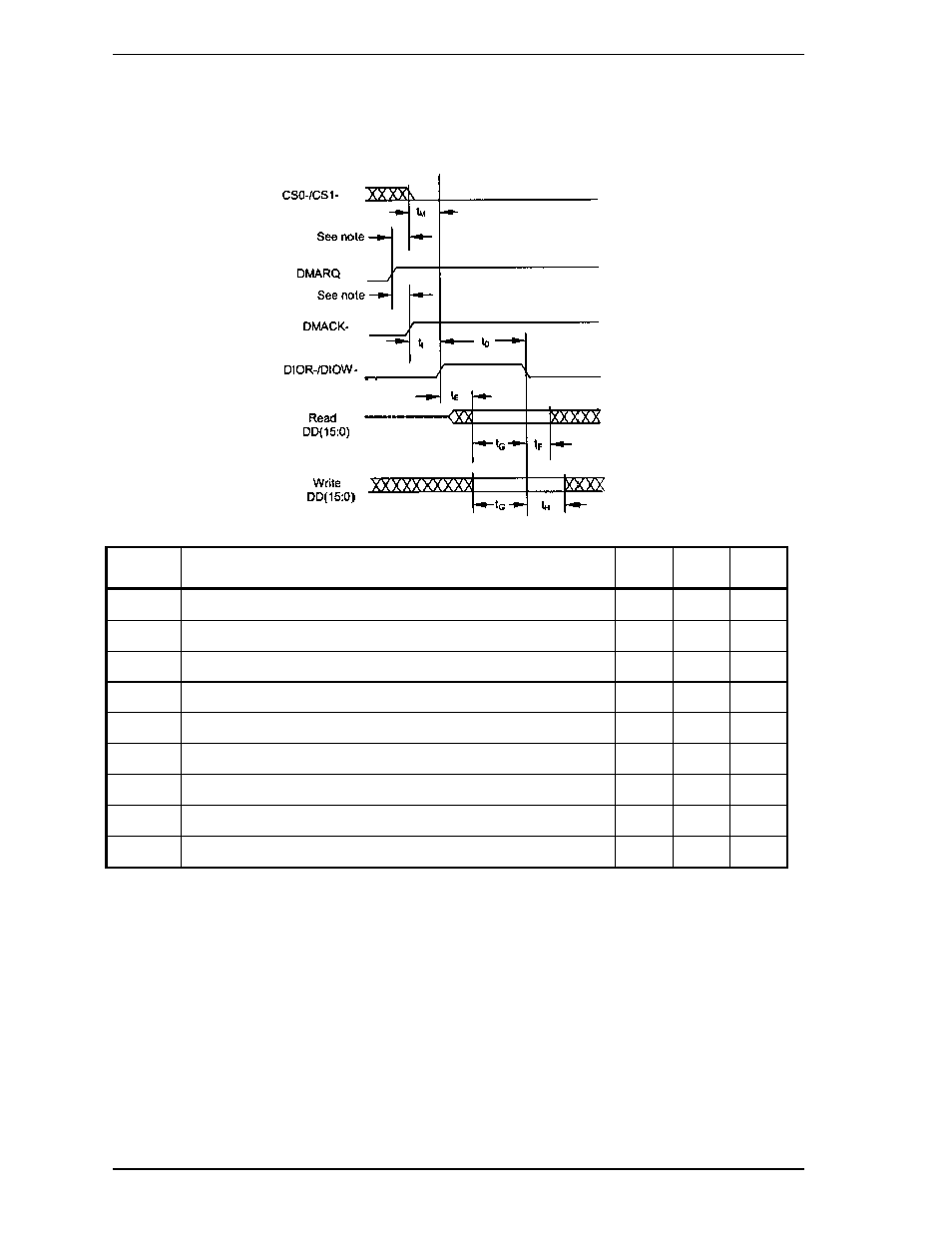

Figure 5.10 Multiword DMA data transfer timing (mode 2)
