Device Configuration

2-4

C141-E145-02EN

2.2 System Configuration

2.2.1 ATA interface

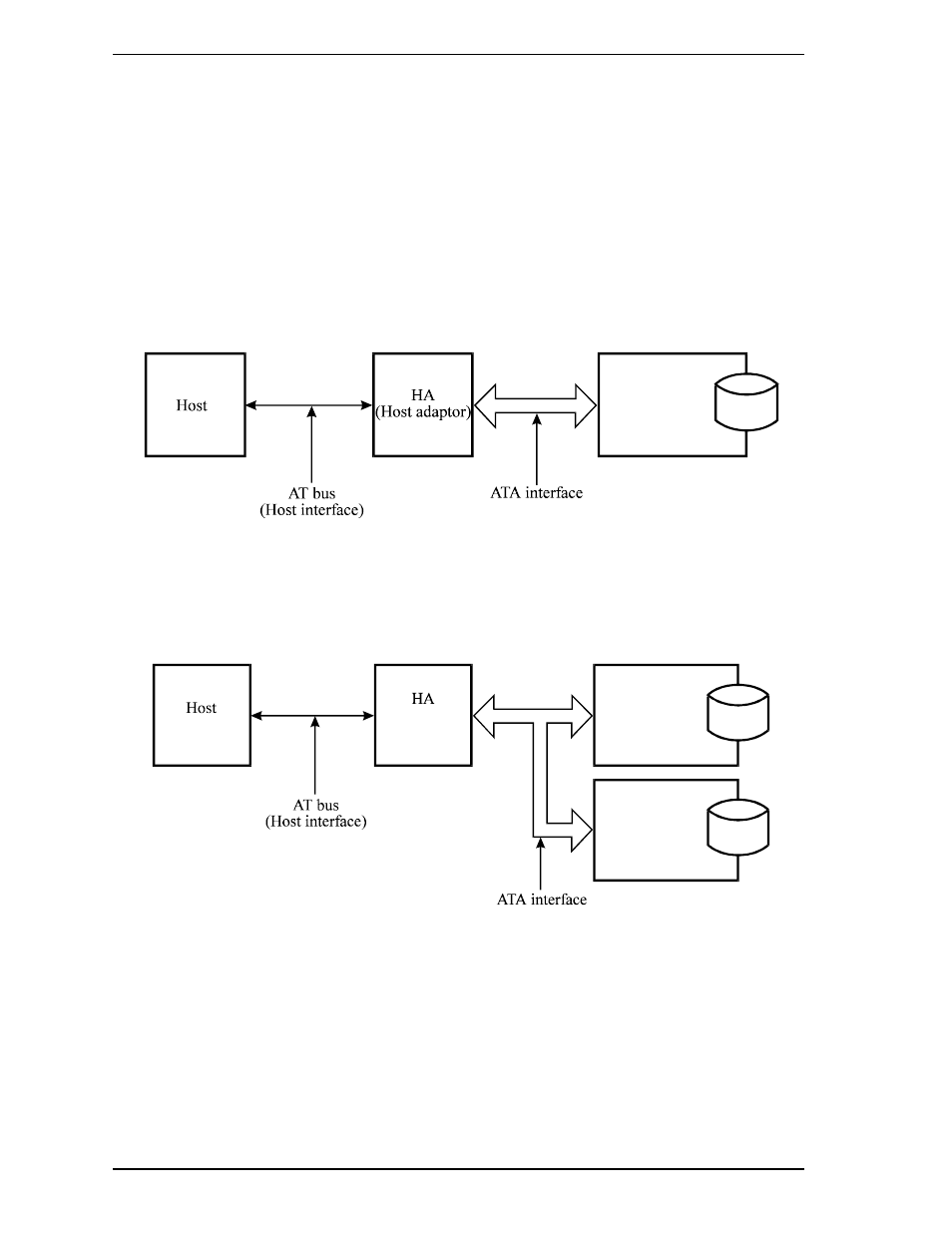

Figures 2.3 and 2.4 show the ATA interface system configuration. The drive has
a 44pin PC AT interface connector and supports PIO mode 4 transfer at 16.6
MB/s, Multiword DMA mode 2 transfer at 16.6 MB/s and also U-DMA mode
3/4/5 transfer at 33/66/100 MB/s.

2.2.2 1 drive connection

MHC2032AT
MHC2040AT

Figure 2.3 1 drive system configuration

2.2.3 2 drives connection

MHC2032AT
MHC2040AT

(Host adaptor)

Note:

When the drive that is not conformed to ATA is connected to the disk drive above
configuration, the operation is not guaranteed.

Figure 2.4 2 drives configuration

MHG2102AT
MHH2064AT
MHH2032AT

MHR2040AT
MHR2030AT
MHR2020AT
MHR2010AT
