RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP600 High Definition Card Printer/Encoder User Guide (Rev. 2.3) 2-22
Printer Components: Print Ribbons
The Card Printer utilizes both dye-sublimation and/or resin thermal transfer methods to print
images (print to film and transfer film to card). Since the dye-sublimation and the resin
thermal transfer print methods each provide their own unique benefits, Print Ribbons are
available in dye-sublimation-only and combination dye-sublimation/resin versions.
To make it easier to remember which Print Ribbons are which, a letter code has been
developed to indicate the type of Ribbon Panels found on each Ribbon.

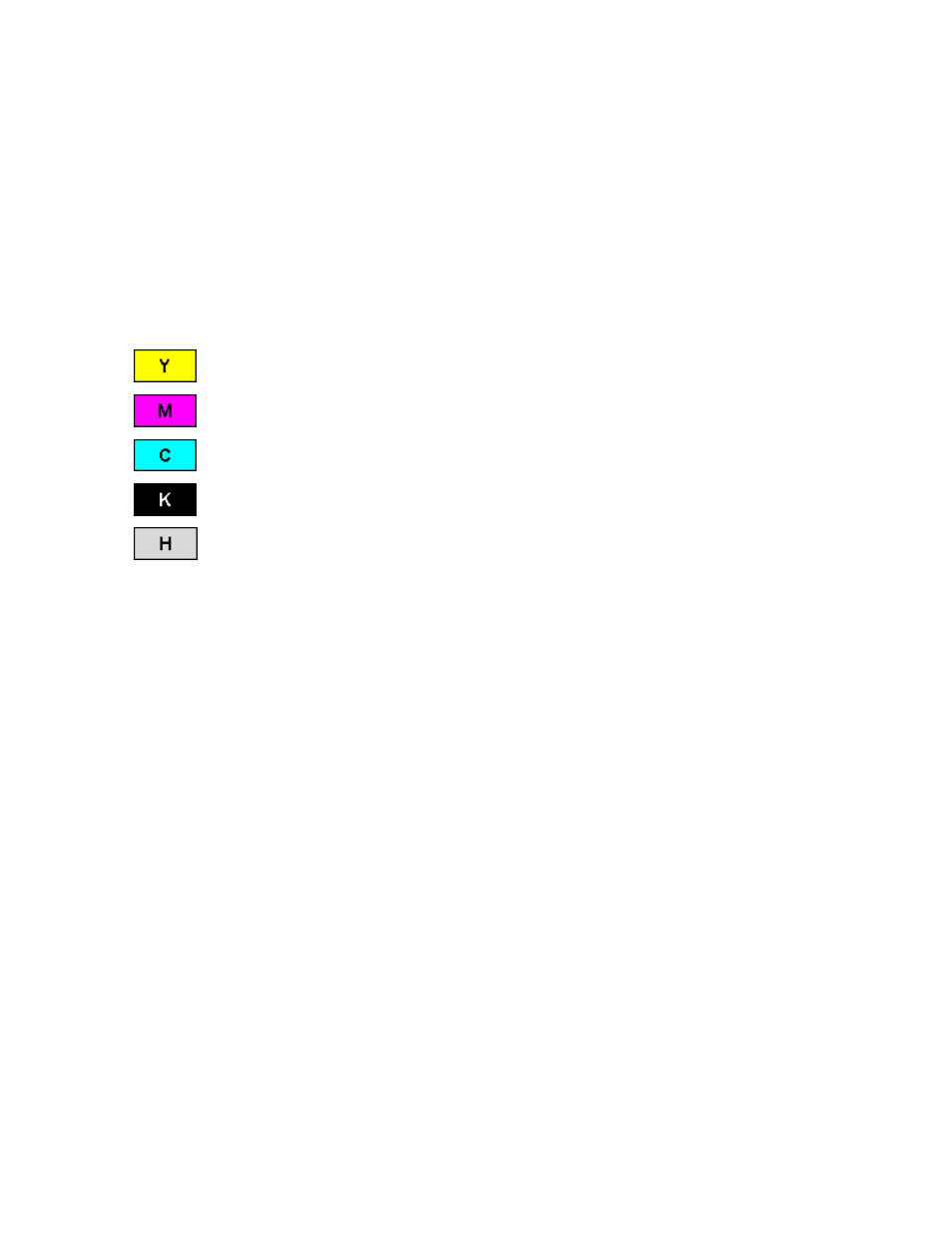

This letter code is as follows:
= Dye-Sublimation Yellow Panel
= Dye-Sublimation Magenta Panel
= Dye-Sublimation Cyan Panel
= Resin Black Panel
= Heat Seal Panel (Note: This is not available on CR100.)
