System components and expansions Replacing the system fan
54 A26361-K646-Z102-1-7619
8.5 Replacing the system fan
The server system fan can easily be replaced during servicing.
Ê Open the server (see " Opening and closing the server ").

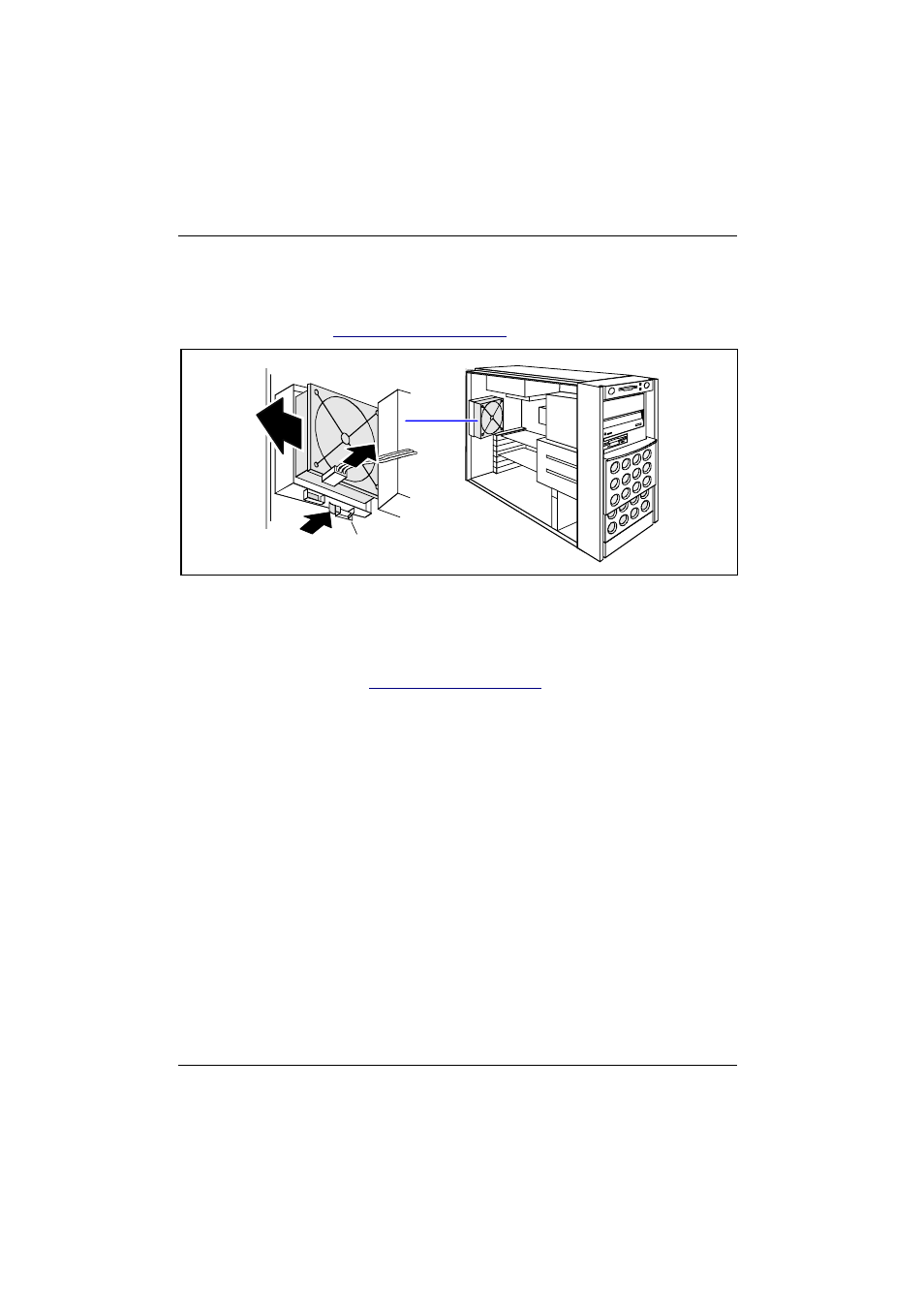

1
3
2 a
Ê Pull the cable off the fan (1).
Ê Press on the clip (2) from behind and remove the fan (3).
Ê Place the new fan in the bay. The proper fan position can best be judged from the outside at
the back of the server. When doing so, make sure the fan clip (a) engages properly (2).
Ê Connect the cable to the fan.
Ê Close the server again (see " Opening and closing the server ").
